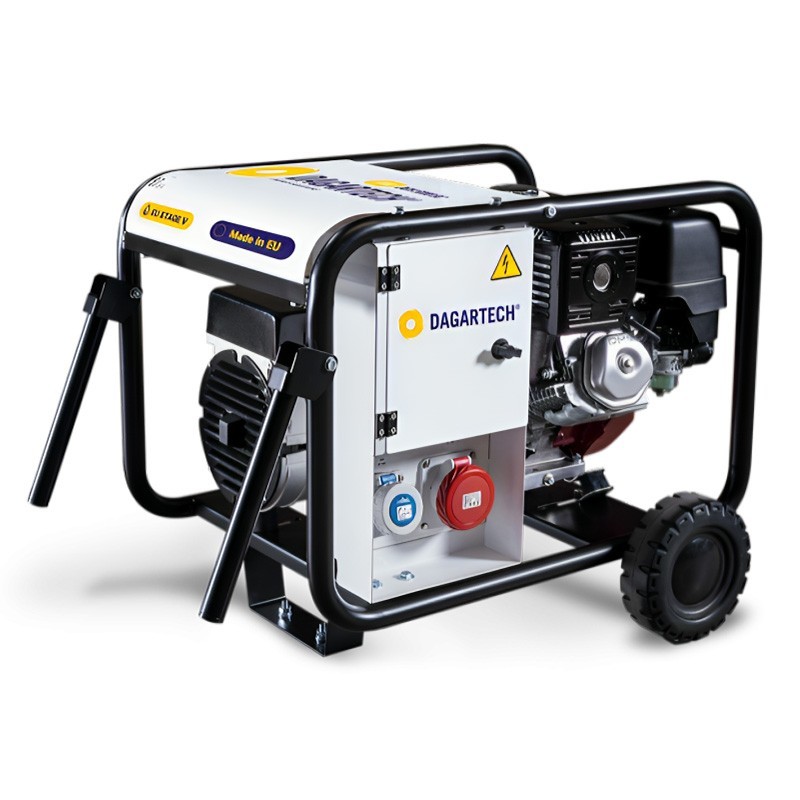

The electric generator Dagartech DGH 5000 BC is equipped with an individual magneto-thermal and differential protection, this generator guarantees the safety of its operation.
Its HONDA GX 270 3,000 rpm 4-stroke gasoline engine provides a three-phase rated power of 6000 W and a single-phase rated power of 4800 W, which makes it a reliable source of electricity.
This generator has an IP23 alternator that complies with generator standards, offering excellent efficiency and reliability in power generation. Its robust steel chassis is equipped with anti-vibration dampers, ensuring smooth and quiet operation.
In addition, the incorporation of an IP55 electrical panel with IP67 bases and a protective door on the chassis facilitates its use and maintenance. The transport kit includes solid anti-puncture wheels, making it easy to move and transport.
| Frequency | 50Hz |
| Voltage | 400/230V |
| Working speed | 3000 rpm |
| Power factor | 0.8 cos φ |
| Tank | 5,3 L |
| Starting type | Manual |
| Nominal three-phase power | 6000 W |
| Single-phase rated power | 4800 W |
| MOTOR | |
| Model | HONDA GX 270 |
| Continuous power 3000 rpm | 3,7 kW |
| Net power 3600 rpm | 4,1 kW |
| Fuel | Gasoline |
| No. of cylinders | 1 cylinder |
| Displacement | 270 cc |
| Compression ratio | 8,2:1 |
| Maximum torque | 17.7 Nm (2500 r.p.m.) |
| Cooling system | Air-cooled |
| Starting | Manual |
| Fuel tank capacity | 5,3 L |
| Consumption at 75 - 100% load | 1,3 l/h - 1,7 l/h |
| Autonomy 75 - 100% load | 4,1 h - 3,1 h |
| Total oil capacity | 1,1 L |
| Oil type | 15W40 |
| ALTERNATOR | |
| Model | LINZ E1S10M H |
| No. of poles | 2 |
| Insulation class | H |
| Mechanical protection rating | IP23 |
| Voltage regulator | Compound |
| Power PRP 40ºC | 7 kVA |
| No. of phases | 3 |
| Power factor | 0.8 cos φ |
| Dimensions with casters | 856 x 696 x 652 mm |
| Weight with casters | 84.2 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
