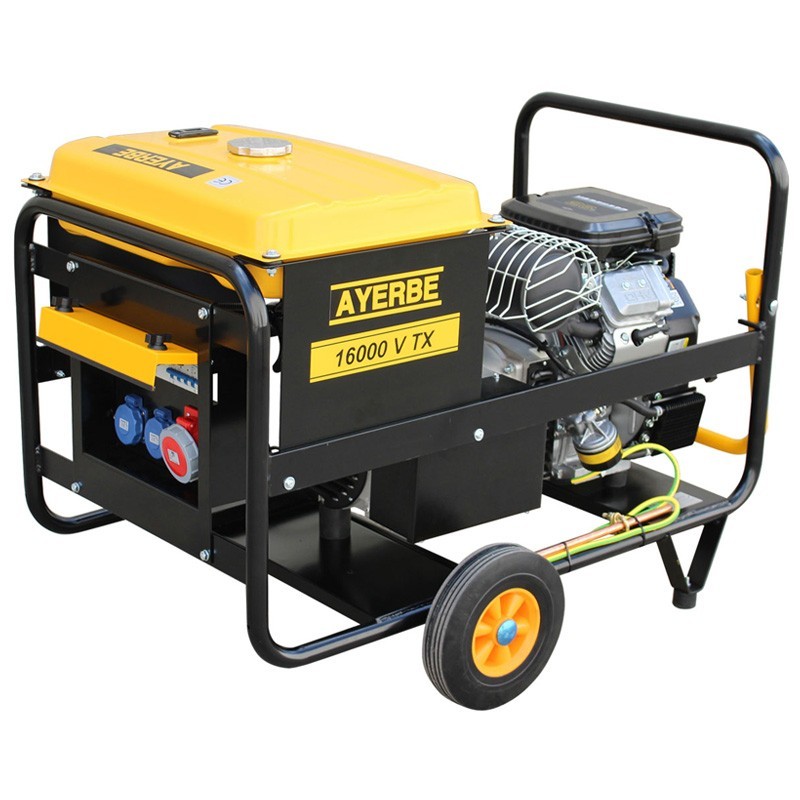

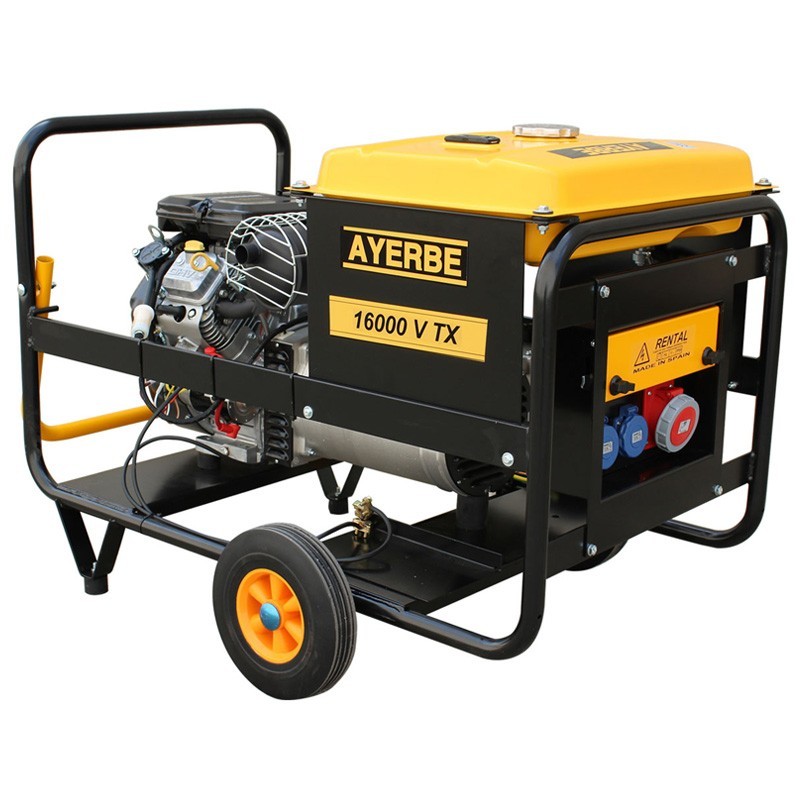

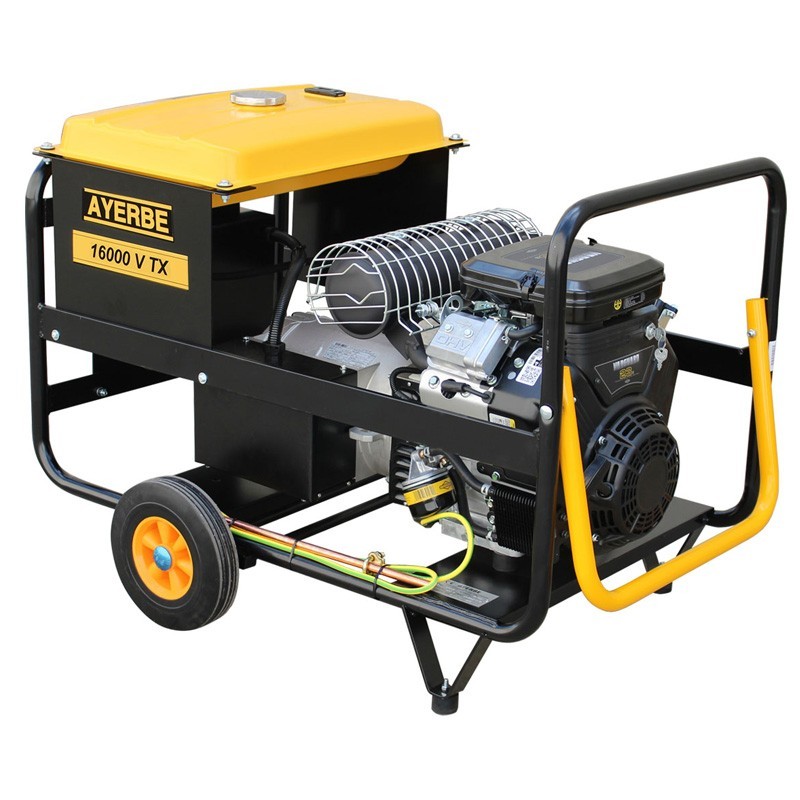

The Ayerbe AY 16000 V TX E 3-Phase Electric Gener ator is a powerful power source with a Vanguard TWIN 23 E engine of 23 hp and 627 cc displacement. This robust engine runs on gasoline and is air-cooled, using SAE 20W40 CD or CF grade oil.
With a naturally aspirated system and a speed of 3,600 r.p.m., its fuel consumption at 75% load is 3.6 L/h.
The generator includes a Mecc Alte TF20 F 200 alternator, which offers reliable performance with a Class H insulation class and IP23 protection. Its excitation system is of the Compound type, which guarantees stable electric power generation.
With a voltage tolerance of ± 5% and a 400/230 V and 50 Hz configuration, this electric generator is ideal for various applications in construction sites and projects. Its approved construction site panel makes it safer and easier to use.
| Maximum power 400 V | 16 KVA - 12800 W |
| Rated power 400 V | 11 KVA - 8800 W |
| Maximum power 230 V | 5 KVA |
| Rated power 230 V | 3 KVA |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 400 - 230 V. / 50 Hz |
| Start | Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 99 LwA / 76 LpA@7m |
| Motor | |
| Manufacturer | VANGUARD |
| Model | TWIN 23 E |
| Power | 23 HP |
| Displacement | 627 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 3.6 L/H |
| Oil capacity | 1,7 L |
| Starting system | Electric |
| Alternator | |
| Brand | MECC ALTE |
| Model | TF20 F 200 |
| Type | With brush |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Compound |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 400 & 230 / 50 Hz |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 25 l |
| Autonomy at 75% | 7 hours |
| Weight | 140 kg |
| Dimensions | 1.050 x 860 x 760 mm |
| Packing volume | 0,67 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
