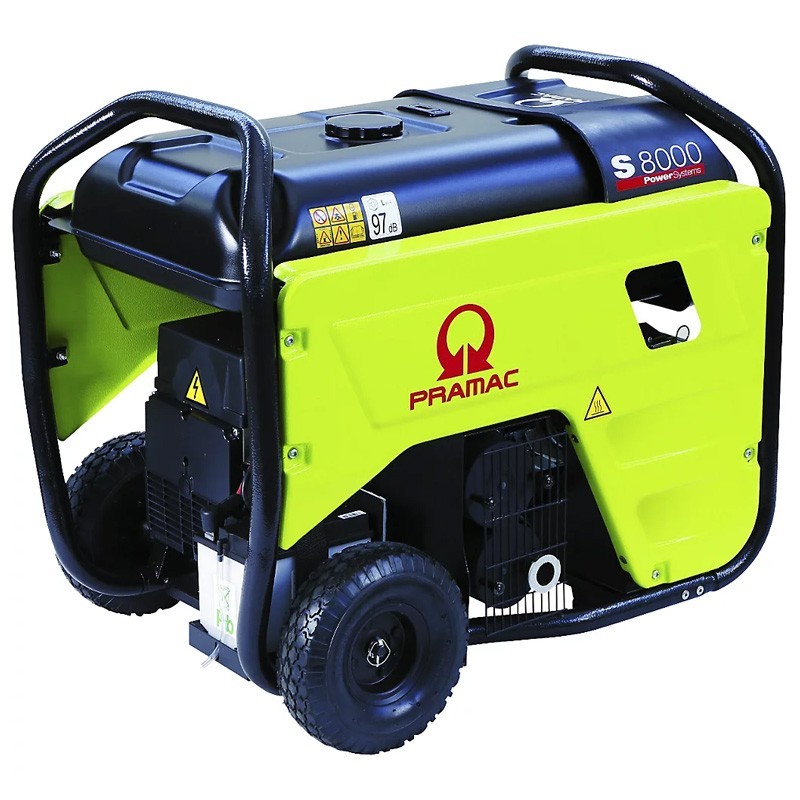

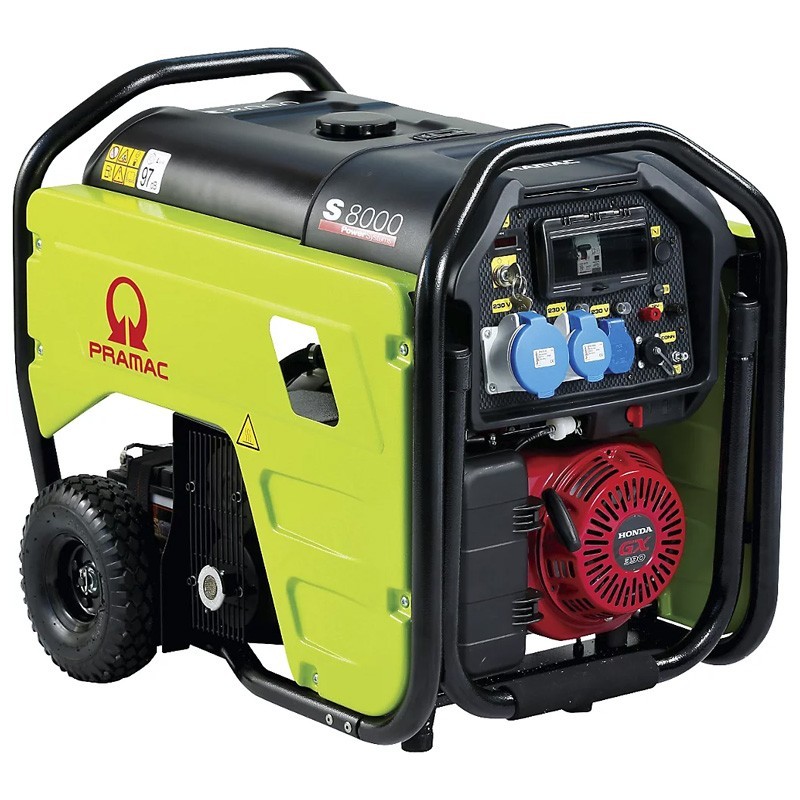

The Gasoline Electric Generator Pramac S8000 equipped with a Honda GX390 Recoil engine and an air-cooling system, this generator ensures optimum performance in a variety of applications. Its tightly sized anti-vibration silentblocks and a quiet residential exhaust with spark arrestor protection make it run quietly and safely, reducing discomfort and risk.

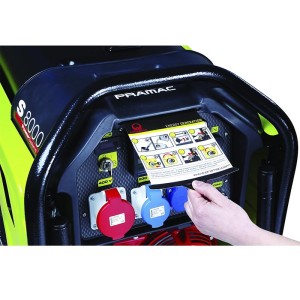

In addition, the Pramac S8000 has a number of essential protections, such as a circuit breaker, a protective starter switch cover and low oil level protection. It even has an emergency stop button for critical situations.
Also, it is important to note that this generator is available in two models: one with AVR and Isometric Protection (IPP), and one without AVR but with Differential Protection (DPP). This makes it a versatile option adapted to various needs, whether in residential or commercial use.
| Model | Without AVR + DDP | With AVR + IPP |
| Frequency | 50 Hz | |
| Voltage | 230 V | |
| Power factor | 0.9 cos ϕ | |
| Phases | 1 | |
| Maximum three-phase power | 6400 W | |
| Nominal three-phase power | 5500 W | |
| Engine Brand | Honda | |
| Model | GX390 Recoil | |
| Cooling System | Air | |
| Aspiration | Natural | |
| Speed regulator | Mechanical | |
| Nominal operating speed | 3000 rpm | |
| Fuel | Gasoline | |
| Starting system | Manual | |
| Oil tank | 1.1 l | |
| Displacement | 389 cc | |
| Alternator type | Brushless | With brushes |
| Class | H | |
| IP protection | 23 | |
| Poles | 2 | |
| Voltage tolerance | 2 % | |
| Standard AVR regulation | AVR 520 | |
| Voltage regulation system | Compound | Electronic |
| Fuel consumption at 75% load | 2.14 l/h | 2.16 l/h |
| Autonomy at 75% load | 12.62 h | 12.50 h |
| Fuel consumption at 100% load | 2.87 l/h | |
| Autonomy at 100% load | 9.41 h | |
| Fuel tank capacity | 27 l | |
| Guaranteed sound level (LWA) | 97 dBA | |
| Noise pressure level @ 7 mt | 69 dB(A) | |
| Dimensions | 840 x 615 x 753 | |
| Dry weight | 109 Kg | |
| Sockets | SCHUKO 230V 16A IP68 | |
| 2P+T CEE 230V 32A IP67 | ||
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
