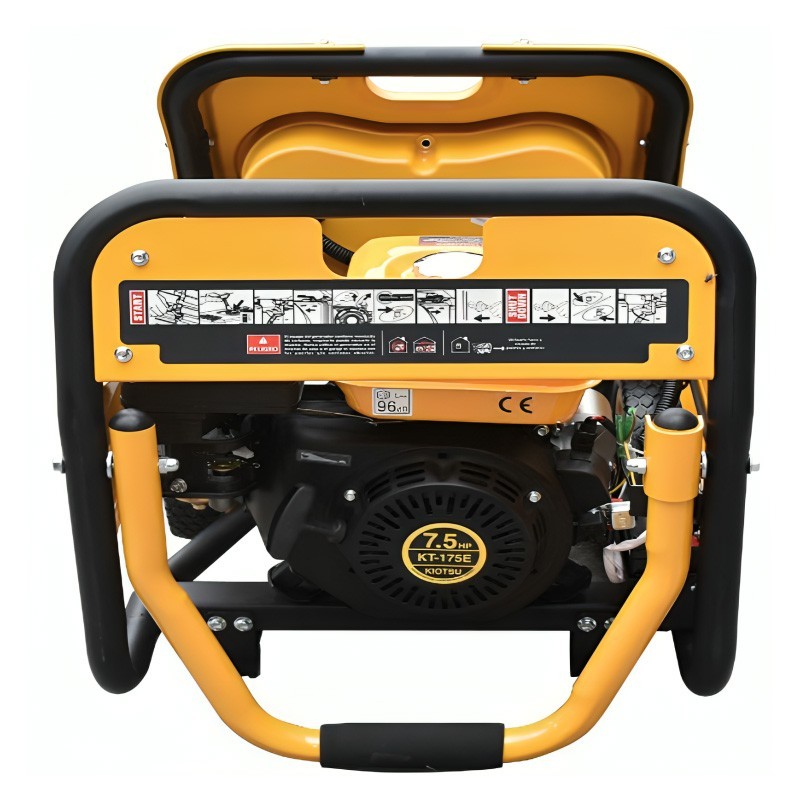

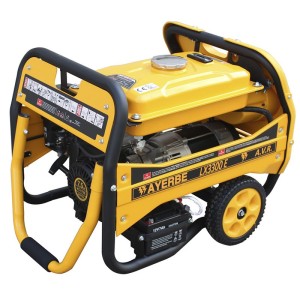

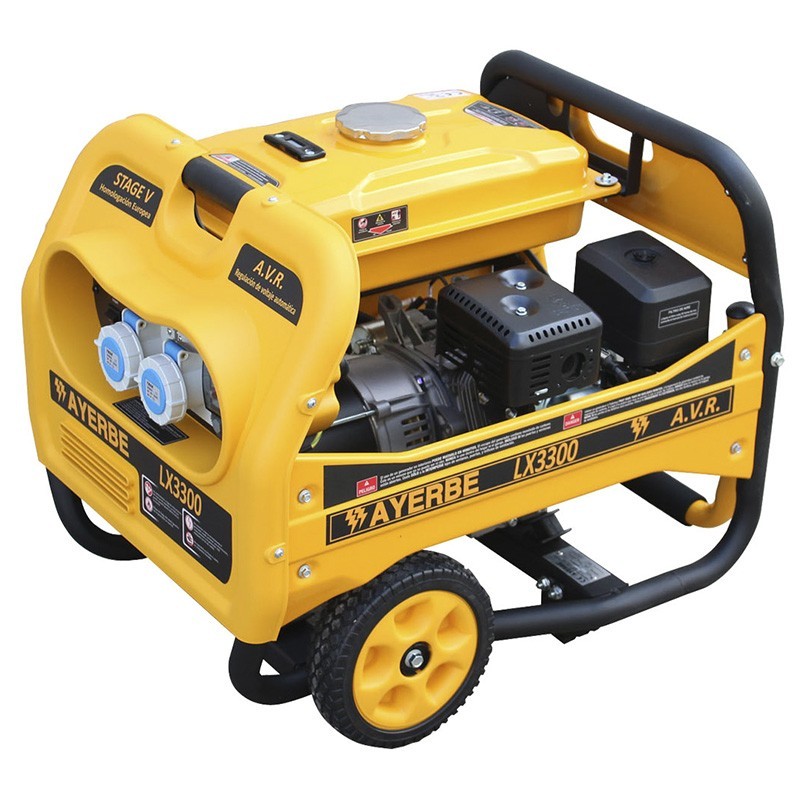

Single-phase gasoline generator Ayerbe LX3300 / E
The Single Phase Gasoline Generator Ayerbe LX2800equipped with an AVR regulated output alternator and 100% copper winding, offers a maximum power of 3300 W and an autonomy of up to 9 hours with its 10 liter gasoline tank.
It can be started electrically, with battery included, or manually, providing versatility in its use. The LX2800's control panel features a complete set of functions, from a circuit breaker that protects against overloads to a digital voltmeter and digital frequency meter for precise control.
In addition, it has safety features such as oil alarm, differential and ground spike. Its robust reinforced tubular chassis, with front and side guards, along with a folding handlebar handle and 200 mm inflatable wheels, provides ergonomic mobility and easy transport.
This generator is offered in two models, the LX3300 with manual start and the LX3300 E with electric start, providing options to meet various usage needs.
Technical Data
| Maximum power |
3.300 W |
| Rated power |
3.000 W |
| R.p.m. |
3.000 r.p.m |
| Voltage / Frequency |
230 V. / 50 Hz |
| Approved control panel |
With IP 55 protection |
| Power factor |
Cos phi 0,8 |
| Noise level |
95 LwA / 72 LpA@7m |
| Differential 0,03 Amp, voltmeter hour counter and grounding probe |
| Motor |
| Brand |
KIOTSU |
| Model |
KT-175 / KT-175 E |
| Power |
7.5 HP |
| Displacement |
223 cc |
| Cooling system |
Air |
| Engine oil type |
SAE 20W40 / IPE grade CD, CF |
| Aspiration |
Natural |
| R.P.M. engine oil |
3.600 r.p.m. |
| Speed governor |
Mechanics |
| Fuel |
Gasoline |
| Fuel consumption at 75% |
1.2 L/H |
| Oil capacity |
0.6 L - 0.6 L oil bottle included |
| Starting system |
Manual or Electric |
| Alternator |
| Brand |
AYERBE |
| Model |
3300 |
| Type |
Electronic regulation |
| Type of insulation |
Class H |
| IP protection |
IP 23 |
| Excitation system |
A.V.R. |
| Voltage Tolerance |
+ - 1% |
| Poles |
2 |
| Voltage / Frequency |
230 / 50 Hz. |
| Type of coating |
Standard (without impregnation) |
| Dimensions and Weight |
| Tank capacity |
10 l |
| Autonomy at 75% |
9 hours |
| Weight |
58 kg |
| Dimensions |
660 x 560 x 470 mm |
| Packing volume |
0,17 m³ |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
|
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
