Battery NOT included in electric start models

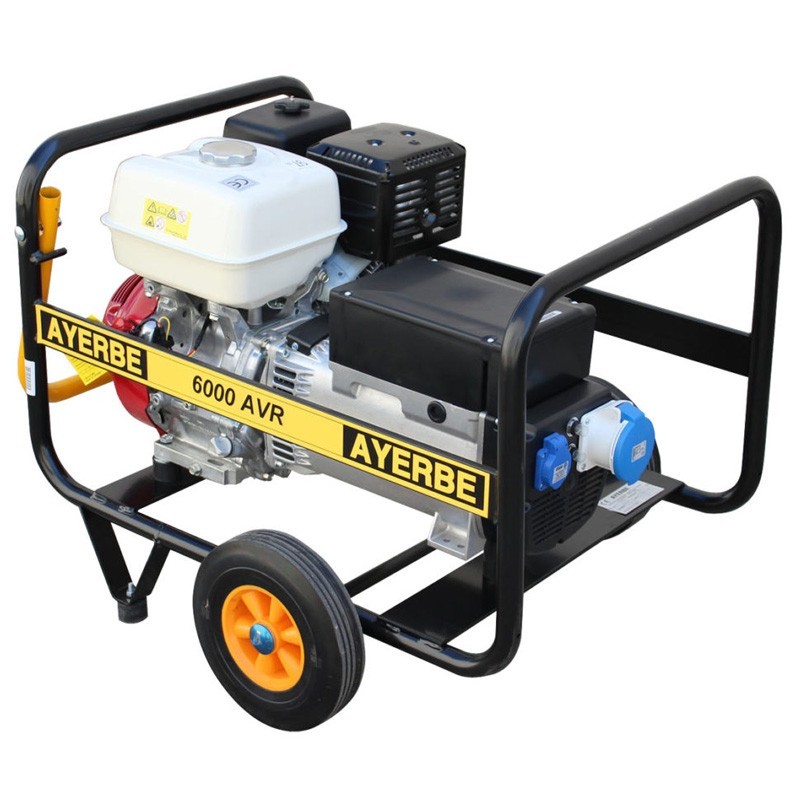

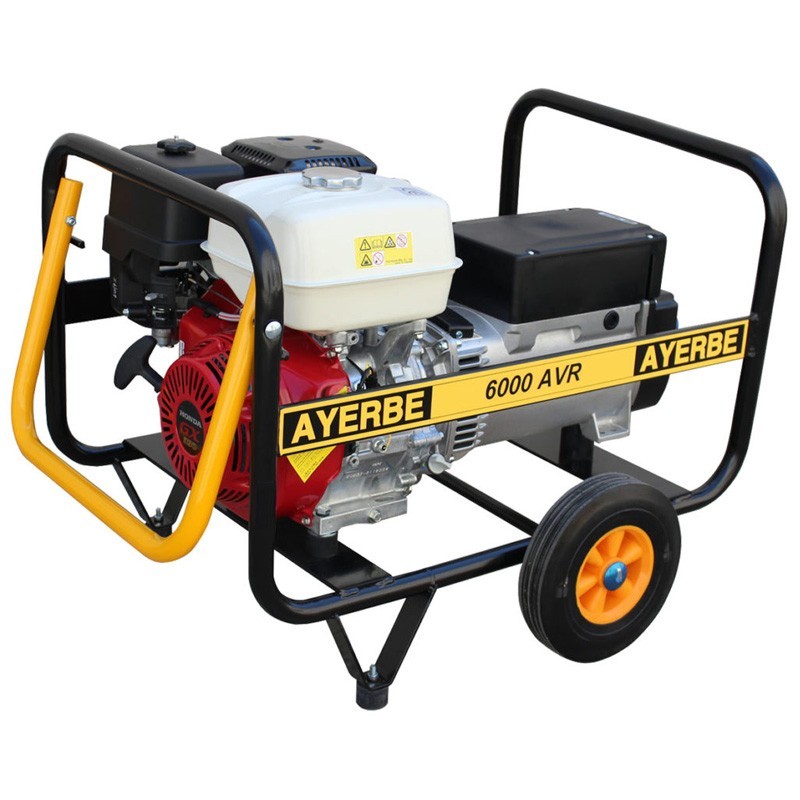

The powerful gasoline generator Ayerbe AY 6000 has a Honda GX 390 engine of 13 horsepower that delivers a maximum power of 5600 W working at 3000 revolutions per minute.
The starting mode of this generator will depend on the model chosen and can be manual or electric start. As for the autonomy we have a tank of 6.5 liters.
This together with the low consumption of 2.1 liters per hour gives us a duration of approximately 3.5 hours of continuous work. The weight of this generator is 85 kg and has a handle and wheels for easy transport.
Finally, this generator has AVR stabilization that protects our equipment from any possible power surge that may occur.
| Maximum power | 5,6 KVA - 5.600 W |
| Nominal power | 5 KVA - 5,000 W |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 230 V. / 50 Hz. |
| Starting | Manual / Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 97 LwA / 74 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 390 / GX 390 E |
| Power | 13 HP |
| Displacement | 390 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.1 L/H |
| Oil capacity | 1,1 L |
| Starting system | Manual / Electric |
| Alternator | |
| Brand | LINZ |
| Model | SP 10 MF |
| Type | Electronic regulation |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | AVR |
| Voltage Tolerance | + - 1% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 6 l |
| Autonomy at 75% | 3,5 hours |
| Weight | 85 kg |
| Dimensions | 950 x 625 x 746 mm |
| Packing volume | 0,44 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
