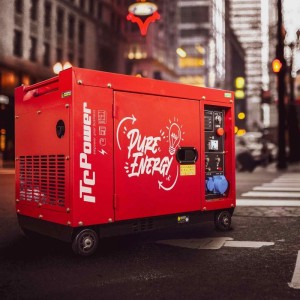

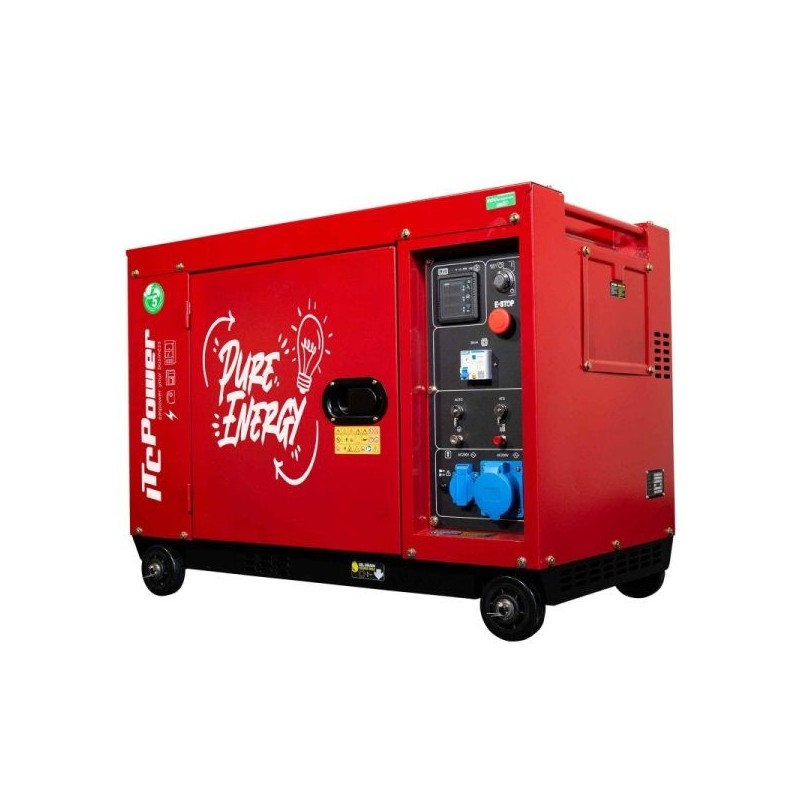

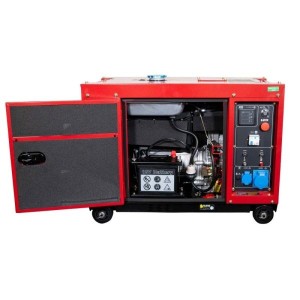

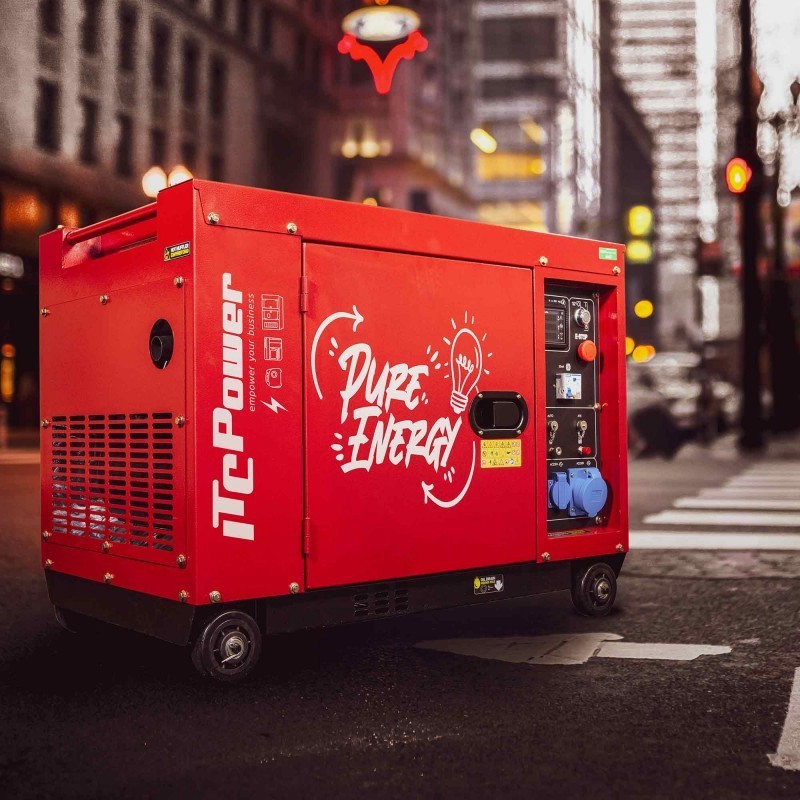

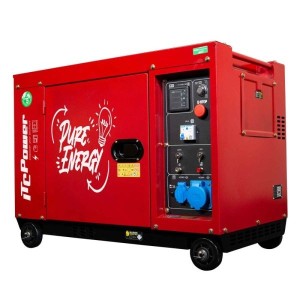

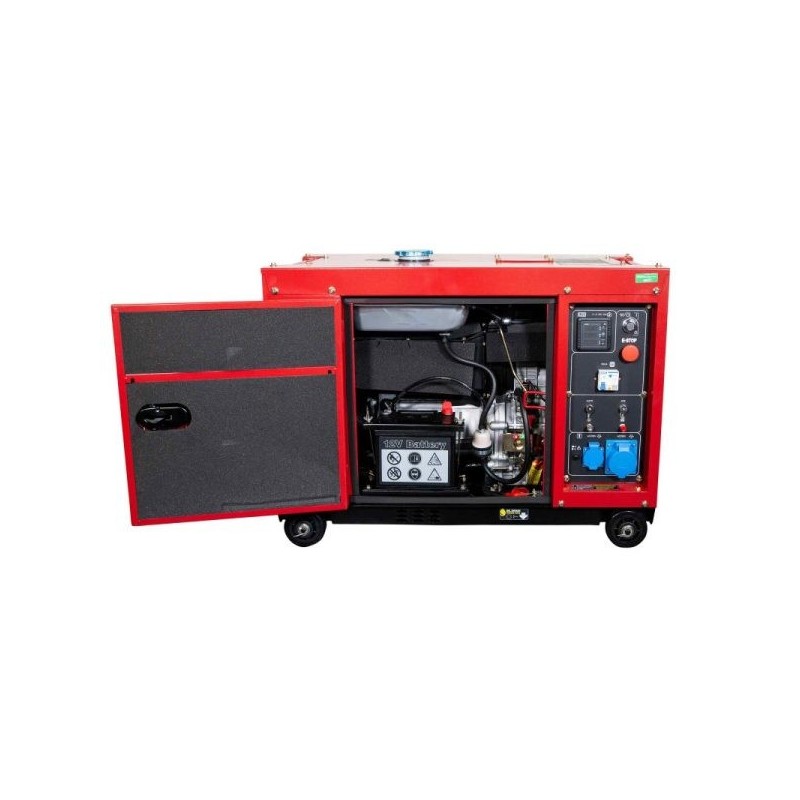

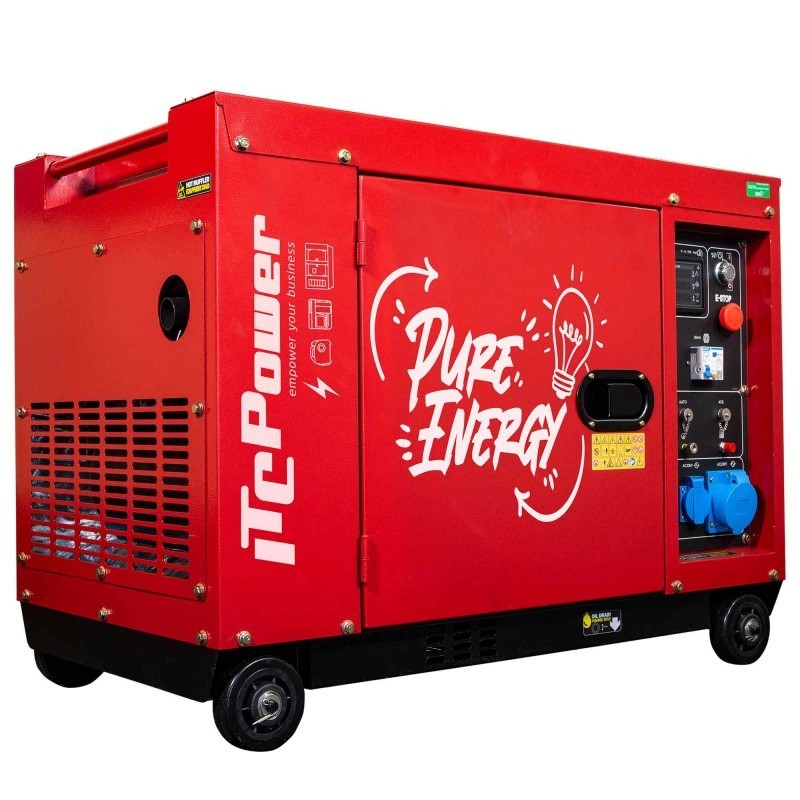

The ITCPower electric generator contains a 4-stroke engine which is air-cooled, diesel with direct injection. It also has a double base support to reduce the vibration and noise emission which is not so intense due to the low vibration.
This single-phase generator is designed for backup in case of mains failure, or also to support solar installations.
The equipment consists of a control panel that enhances our experience. A compact engine easy to install with low maintenance and low fuel consumption.
| Voltage: | 230V |
| Maximum power: | 6.3 kW |
| Nominal Power: | 6.0 kW |
| Frequency (HZ): | 50HZ |
| Outputs: | 1 x 16 A / 1x 32 A |
| Display: | LED6 |
| Battery: | 36Ah |
| DC output: | 12V / 8.3A |
| Fuel capacity: | 12L |
| Consumption 50% load: | 10h |
| Noise level at 7 meters: | 72dBA |
| Engine model: | D500E |
| Displacement: | 498cc |
| Oil Capacity: | 1,65L |
| Low oil pressure: | Yes |
| Emergency button: | Yes |
| Net weight: | 152kg |
| Gross weight: | 168kg |
| Product dimensions: | 920 x 520 x 760 mm |
| Starting mode: | Electric |
| Engine power: | 12 HP |
| Intensity: | 28A |
| Differential: | 30 mAh |
| Fuel: | Diesel |
| Current: | Single phase |
| Nominal power: | From 6.0 to 6.9 Kw |
| Generator type: | With trolley |
| Starting: | Electric start |
| Stabilization: | AVR |
| Alternator characteristics | |
| Alternator: | A6S |
| Alternator- Nominal power: | 6 KW |
| Alternator - Power Factor: | 1 |
| Alternator- Voltage regulation: | AVR/Brushes |
| Type: | Compact |
| Operation: | Stable |
| Winding: | 100% copper |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
