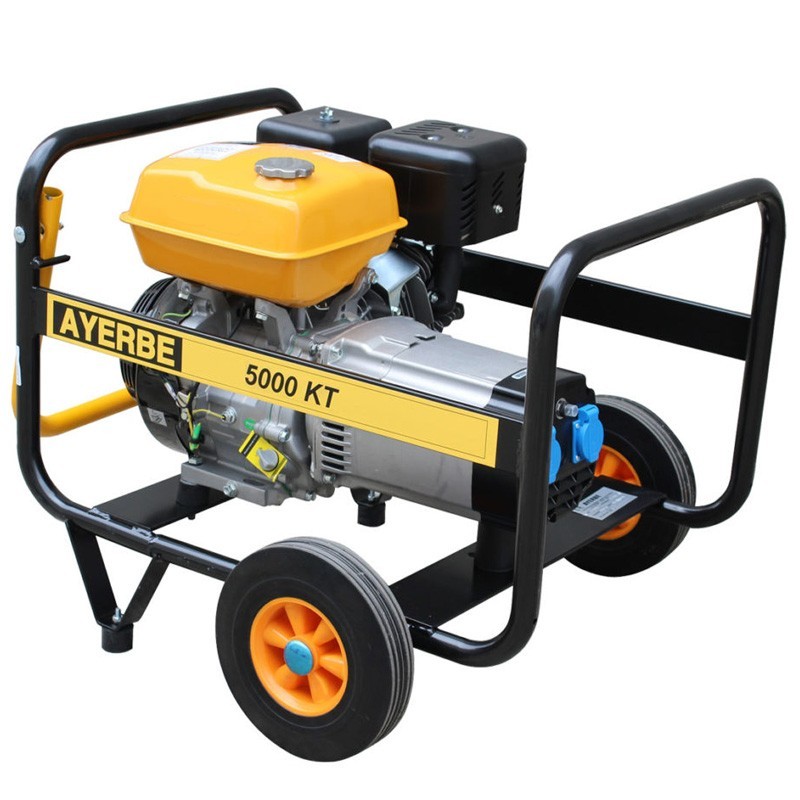

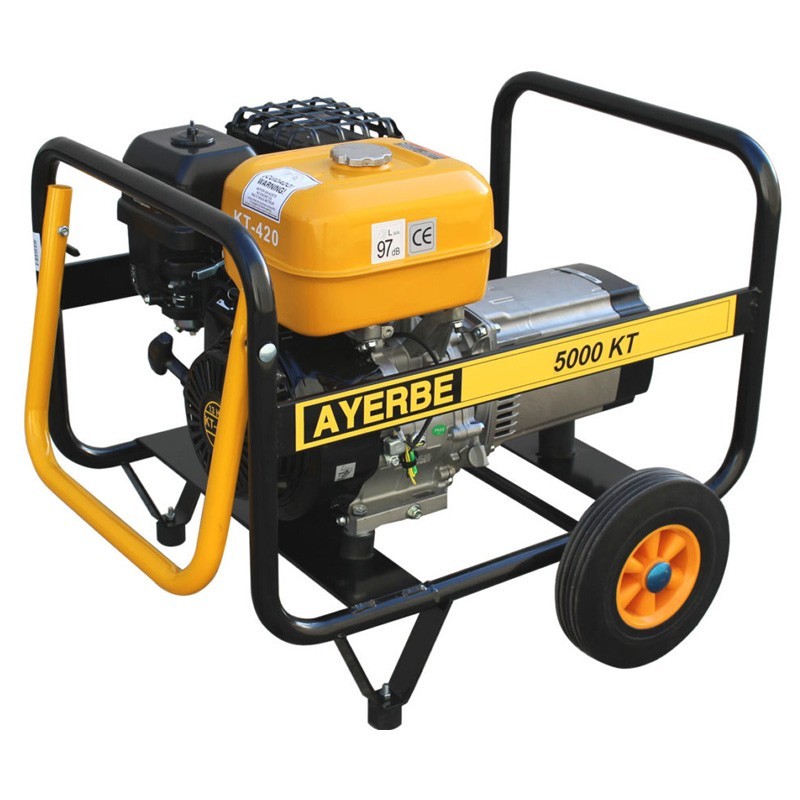

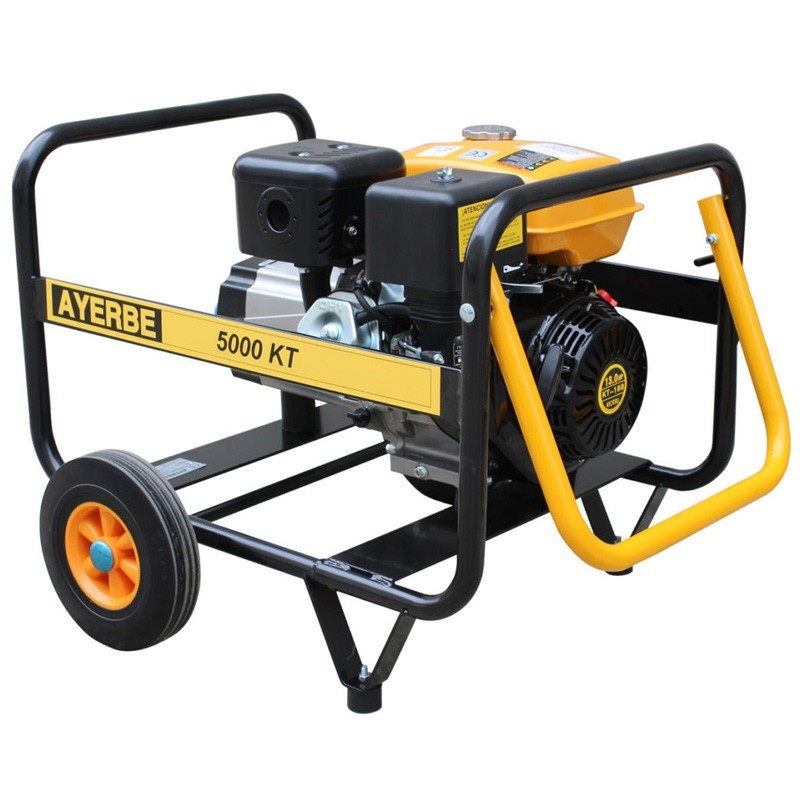

The gasoline generator Ayerbe AY 5000 KT MN is a powerful power source with a maximum power output of 5 KVA and a rated output of 4.8 KVA, making it a reliable choice for multiple applications.
Its 420 cc KIOTSU engine and air cooling system ensure solid performance. With a fuel consumption of 2.1 liters per hour at 75% load, this generator is efficient and economical.
In addition, the gasoline generator Ayerbe AY 5000 KT MN has a tank capacity of 6.5 liters, which provides a range of up to 3.5 hours at 75% load. Its compact dimensions of 770 x 746 x 625 mm and a weight of 75 kg make it portable and easy to transport.
| Maximum power | 5 KVA - 4,200 W |
| Rated power | 4,8 KVA - 3.850 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 230 V. / 50 Hz |
| Start | Manual |
| Power factor | Cos phi 0,8 |
| Noise level | 97 LwA / 77 LpA@7m |
| Motor | |
| Brand | KIOTSU |
| Model | KT-420 |
| Power | 13 HP |
| Displacement | 420 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.1 L/H |
| Oil capacity | 1,1 L |
| Starting system | Manual |
| Alternator | |
| Brand | LINZ |
| Model | SP 10 SE |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 6,5 l |
| Autonomy at 75% | 3,5 hours |
| Weight | 75 kg |
| Dimensions | 770 x 746 x 625 mm |
| Packing volume | 0,36 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
