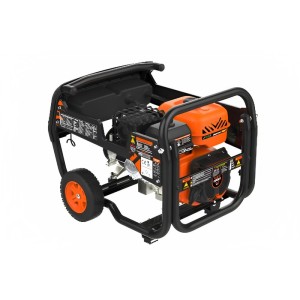

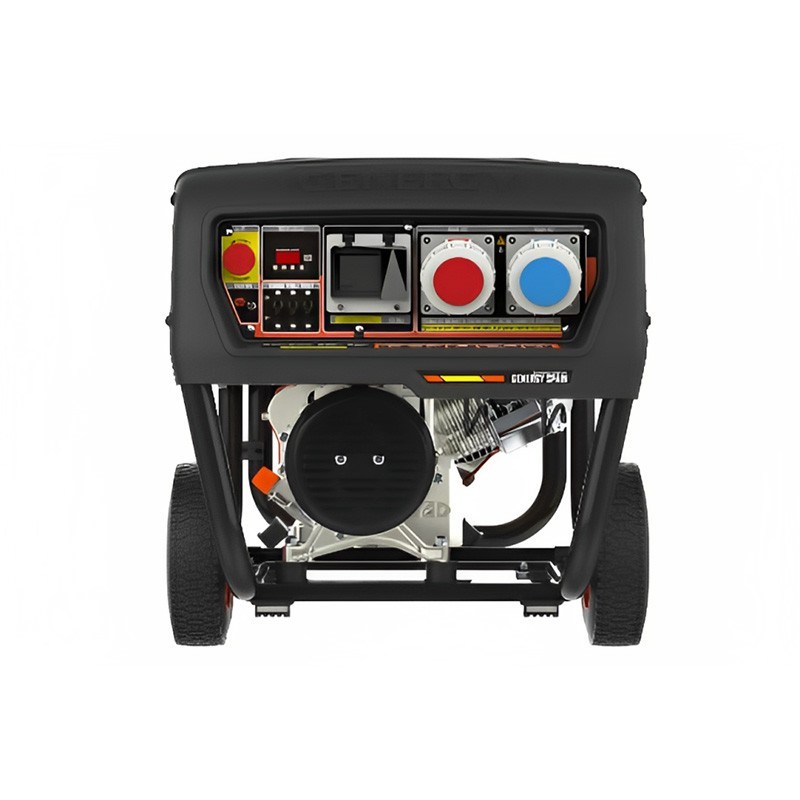

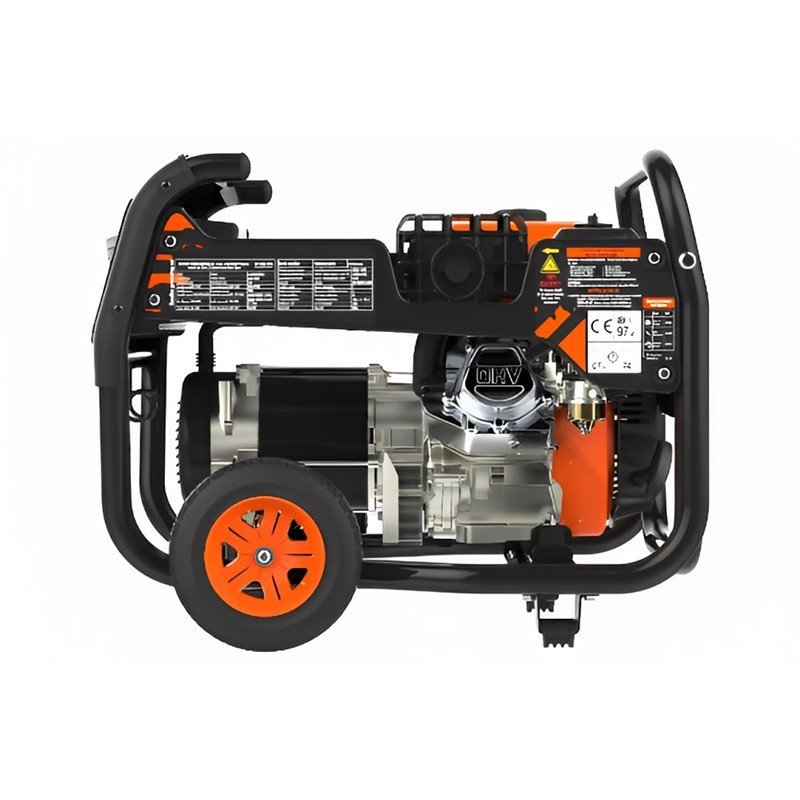

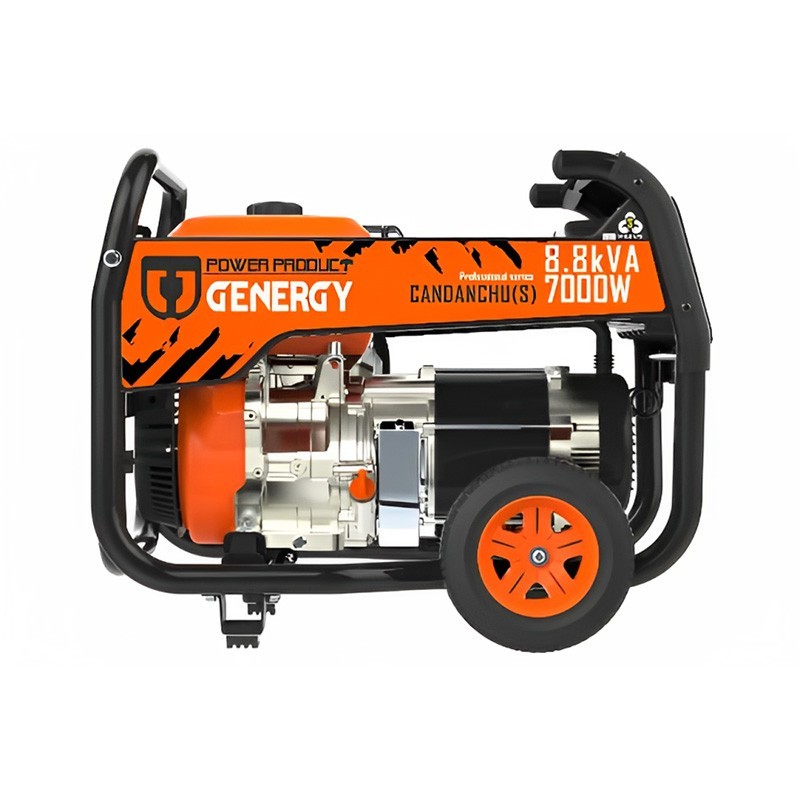

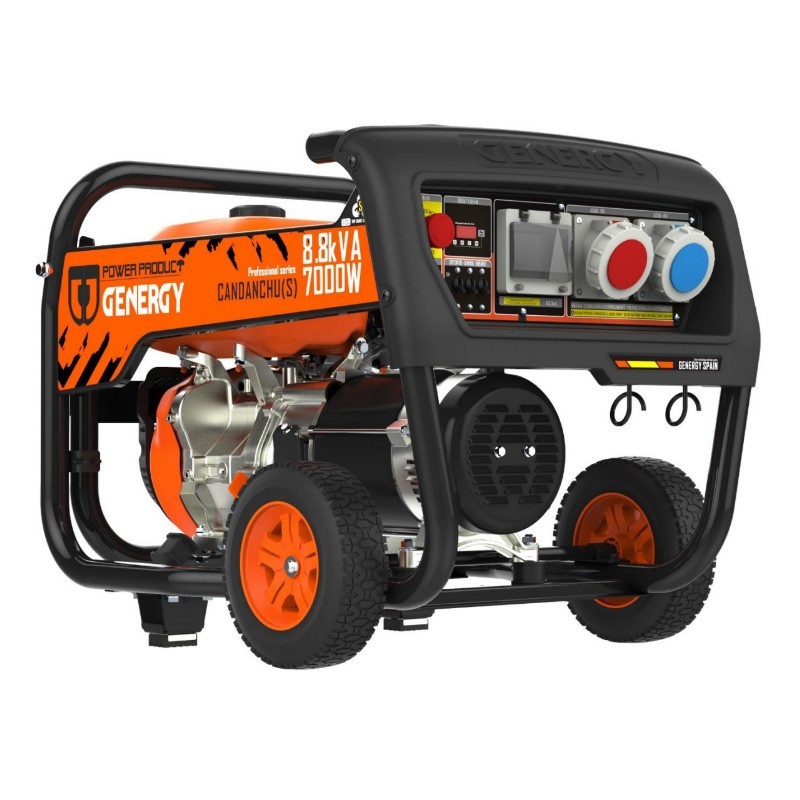

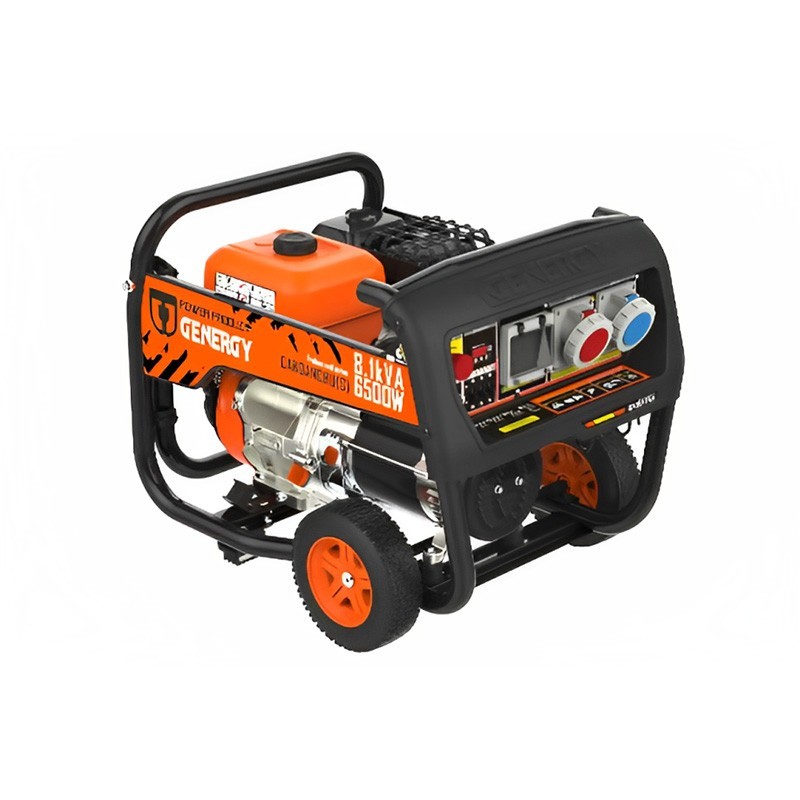

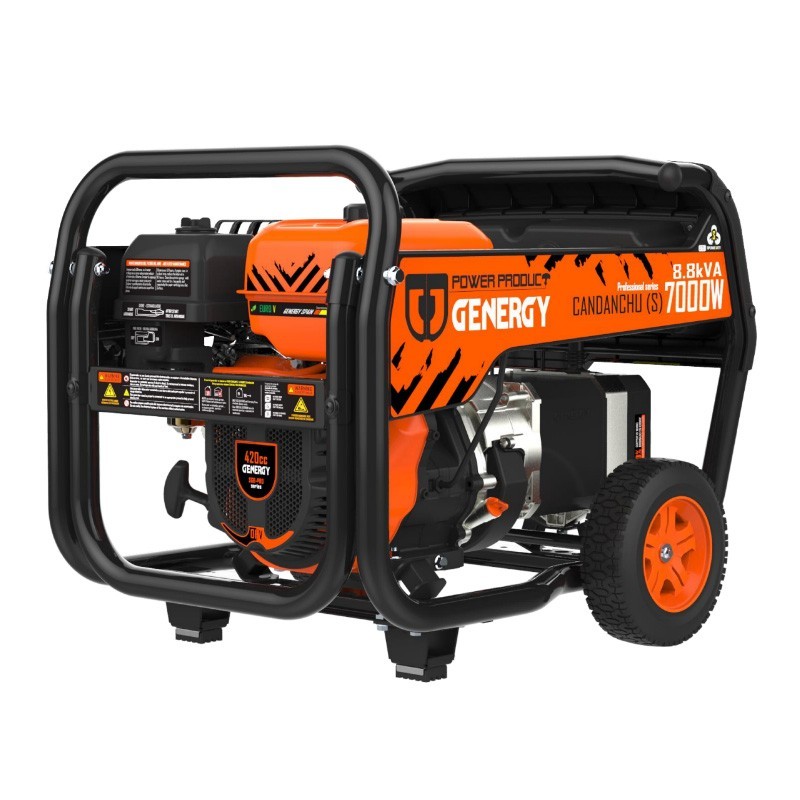

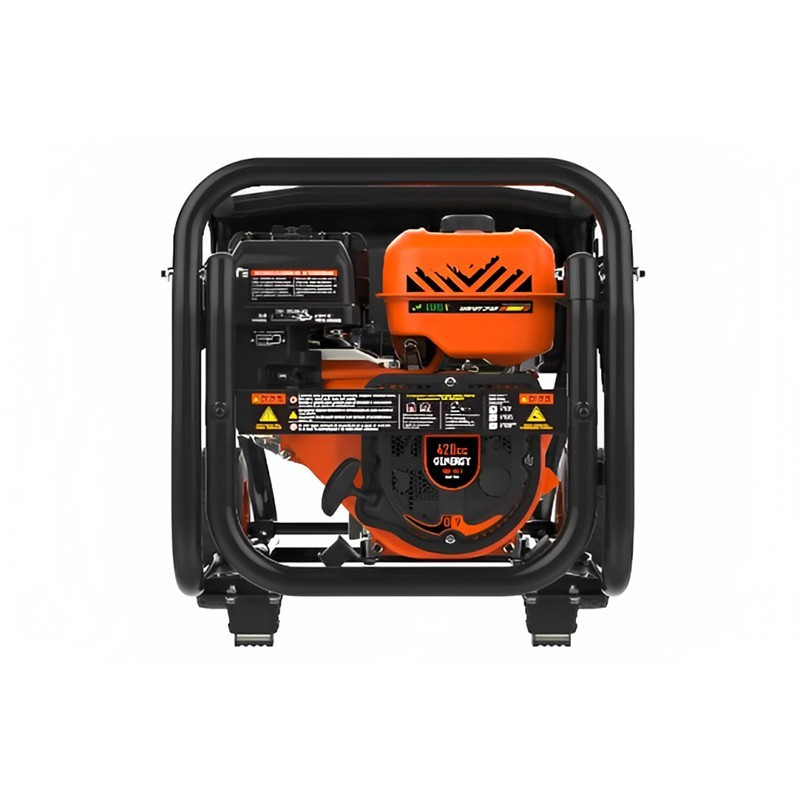

The electric generator Genergy Candanchú S 7000W Dual Volt has a rated power(400V) of6500W and a maximum power(400V) of7000W, and a rated power(230V) of6000W and a maximum power(230V) of6500W.
It has an oil capacity and grade of 1.1L - SAE10W40, a weight of 90 Kg, and a dual current voltage. It is equipped with a copper coil, its displacement is 420 cc, and its dimensions are 787x623x640 mm.
The electric generator Genergy Candanchú S 7000W Dual Volt, has a voltage of 230 V and a frequency of 50 Hz, with a stabilization system is Electronic "SVR". Its engine is a 4-stroke OHV air-cooled gasoline engine.
| Stabilization system | SVR" Electronics |
| Voltage - Frequency | 230V - 50Hz |
| Maximum Power (230V) | 6500 W |
| Nominal Power (230V) | 6500 W |
| Maximum Power (400V) | 7000 W ( 8.8Kva) |
| Nominal Power (400V) | 6500 W (8.1Kva) |
| Type by number of phases | Dual voltage |
| Power Factor | 0.8 |
| Motor Model | SGB420PRO |
| Displacement | 420 cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 68 dB - 74 dB |
| Guaranteed sound power level LwA | 97 dB |
| Starting type | Electric and Manual |
| Fuel tank capacity | 6 L |
| Consumption at 25-50-75% loads | 2.0 L/H - 2.6L/H - 3.0L/H |
| Autonomy 25-50-75% load | 3.0H - 2.5H - 2.0H |
| Oil capacity and grade | 1.1L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Integrated with 10" wheels |
| Dimensions | 787x623x640 mm |
| Weight | 90 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
