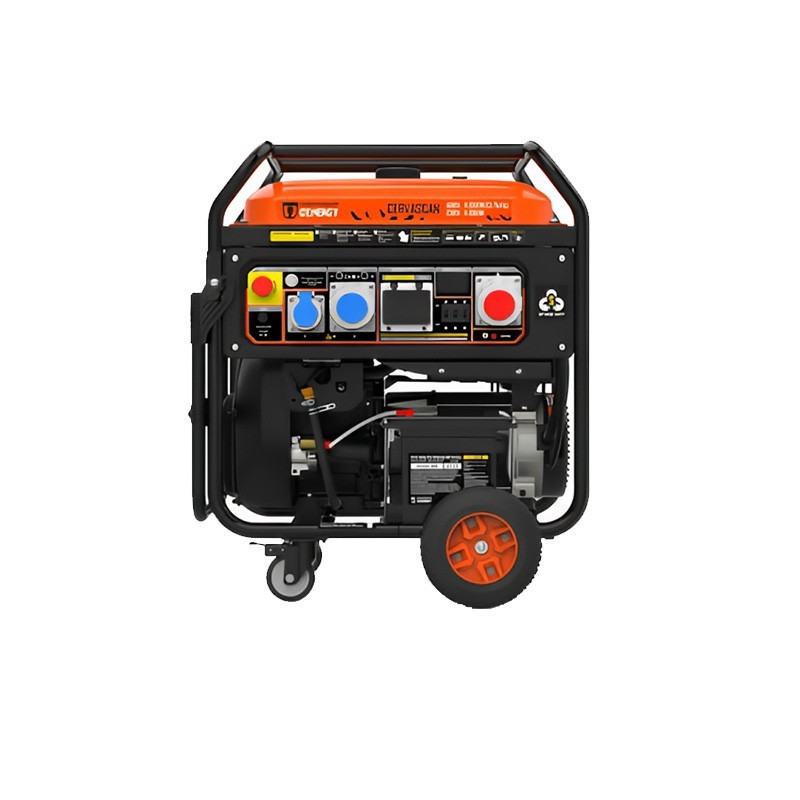

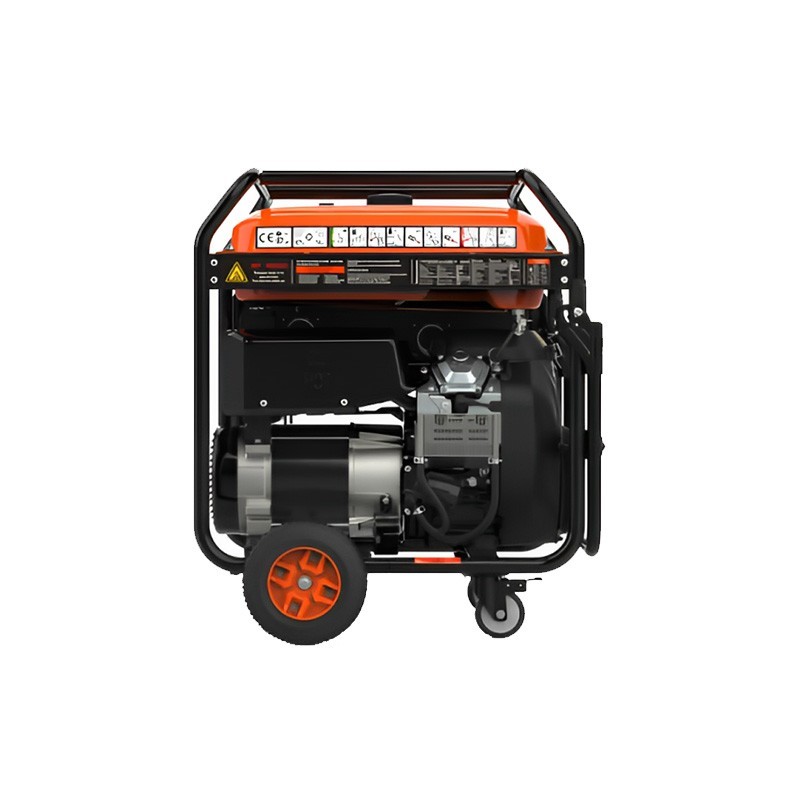

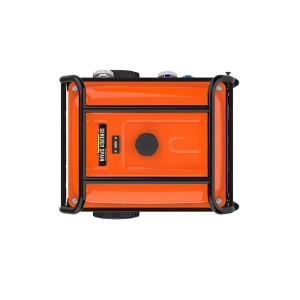

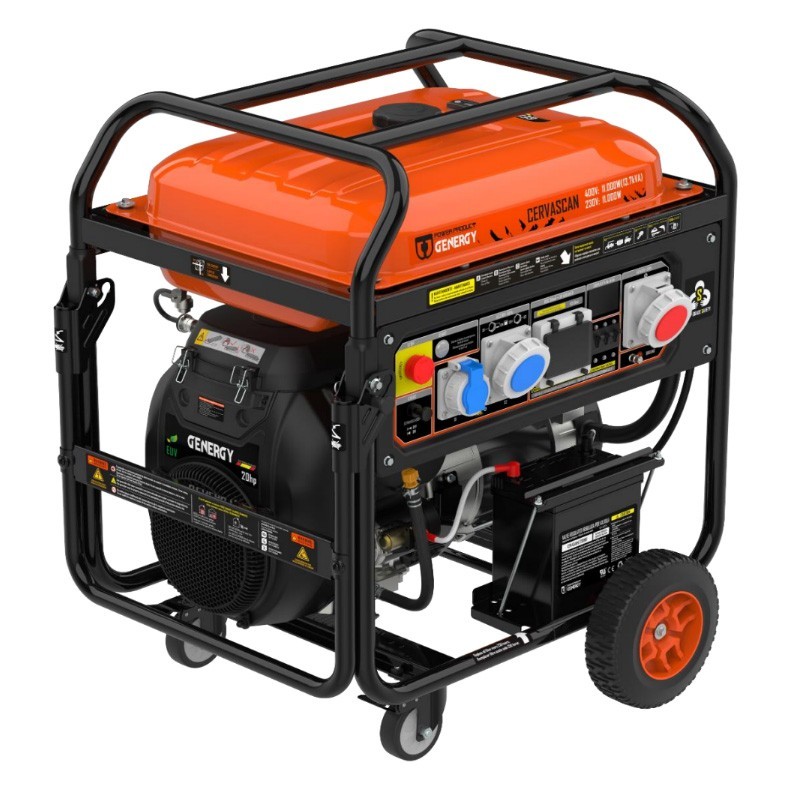

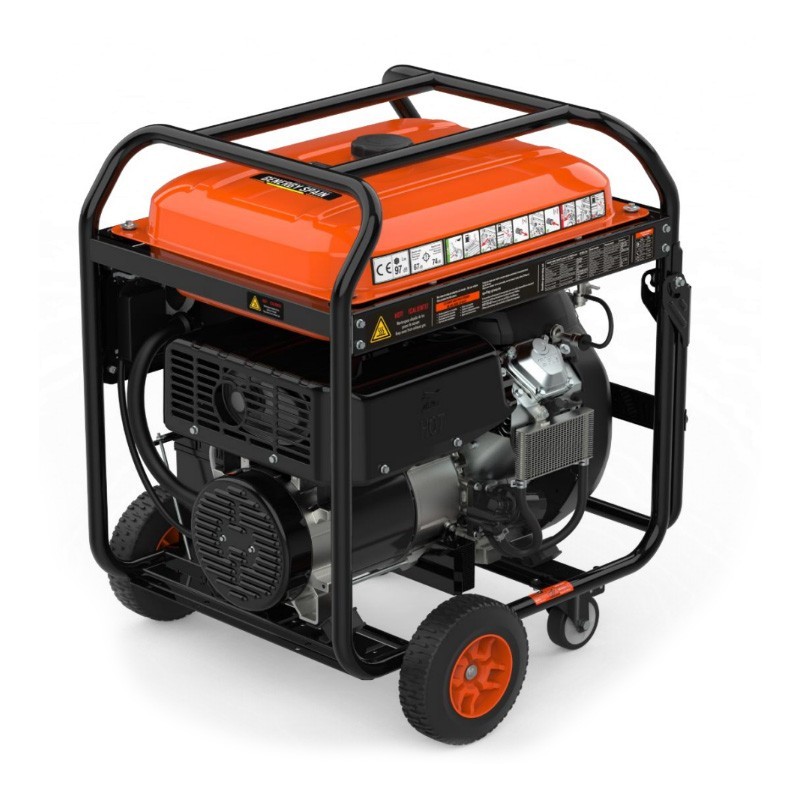

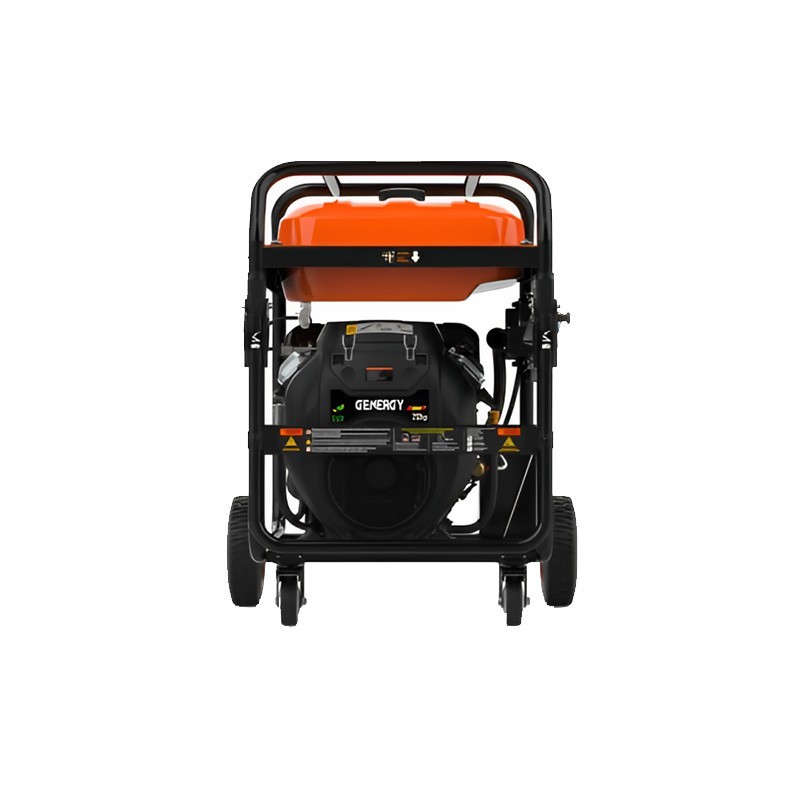

The electric gasoline generator Genergy Cervascan II-S Dual Volt has a 4-stroke OHV air-cooled gasoline engine, an electronic stabilization system "SVR", and a displacement of 679 cc.
It has a voltage of 230V/400V, a frequency of 50 Hz, has a Dual Voltage current, and has a rated power of 10000 W and a maximum power of 11000 W, and is equipped with a copper coil.
The electric generator Gasoline Genergy Cervascan II-S Dual Volt has dimensions of 790x660x811mm - 810x763x994mm and a weight of 156 Kg, and is equipped with two 10" and two 360º anti-puncture wheels.
| Stabilization system | SVR" electronics |
| Voltage - Frequency | 230V/400V - 50Hz |
| Maximum Power (230V) | 11.000 W |
| Nominal Power (230V) | 10.000 W |
| Maximum Power (400V) | 11000W (13.75Kva) |
| Nominal Power (400V) | 10000W (12.5Kva) |
| Type by number of phases | Double Voltage |
| Power Factor | 1.0 / 0.8 |
| Motor Model | SGB680PRO |
| Displacement | 679 cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 68 dB(A) - 74 dB(A) |
| Guaranteed sound power level LwA | 96 dB(A) |
| Start-up type | Electric |
| Fuel tank capacity | 50L |
| Consumption at 25-50-75% load | 2.81 L/H - 3.65 L/H - 4.67L/H |
| Autonomy 25-50-75% load | 17.7H - 13.69H - 10.70H |
| Oil capacity and grade | 1.5L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Yes with two 10" and two 360º anti-puncture wheels. |
| Dimensions | 790x660x811mm - 810x763x994mm |
| Weight | 156 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
