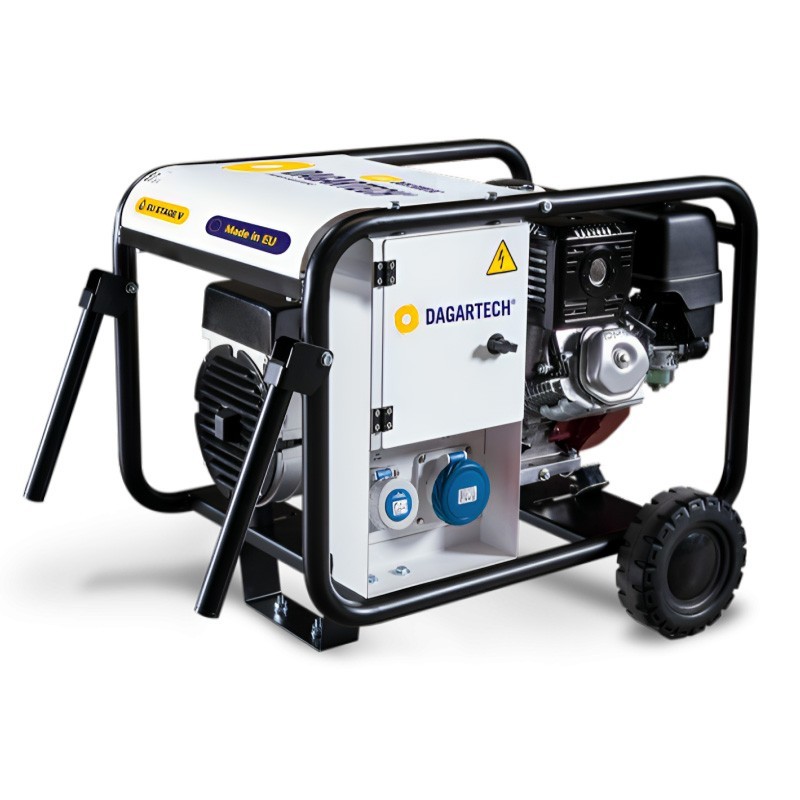

The Dagartech DGH 5000 BC Electric Generator is an impressive power source with a 3000 rpm 4-stroke HONDA GX 270 3,000 rpm gasoline engine that ensures optimum performance. This generator features an IP23 alternator that complies with generator regulations, ensuring safe and efficient operation.
With a metal fuel tank of 5.3 liters capacity, provided by HONDA, this equipment offers excellent autonomy. Its robust steel chassis, equipped with anti-vibration dampers and a protective top plate, guarantees the durability and stability of the generator.
In addition, the IP55 electrical panel with IP67 bases and a protective door built into the chassis provide excellent protection against the elements. The transport kit includes solid anti-puncture wheels, an axle and handles, facilitating mobility and storage.
The Dagartech DGH 5000 BC Generator is a complete unit, including additional features such as an interior protection window for electrical devices, individual magneto-thermal and differential protection, an hour meter, motor oil protection and thermal protection.
| Frequency | 50Hz |
| Voltage | 230V |
| Working speed | 3000 rpm |
| Power factor | 1 cos φ |
| Tank | 5,3 L |
| Starting type | Manual |
| Nominal power | 4100 W |
| ENGINE | |
| Model | HONDA GX 270 |
| Fuel | Gasoline |
| Continuous power 3000 rpm | 3.7 kW |
| Net power 3600 rpm | 4.1 kW |
| No. of cylinders | 1 cylinder |
| Displacement | 270 cc |
| Compression ratio | 8,2:1 |
| Maximum torque | 17.7 Nm (2500 r.p.m.) |
| Cooling system | Air-cooled |
| Starting | Manual |
| Fuel tank capacity | 5,3 L |
| Consumption at 75 - 100% load | 1,3 l/h - 1,7 l/h |
| Autonomy 75 - 100% charge | 4,1 h - 3,1 h |
| Total oil capacity | 1,1 L |
| Oil type | 15W40 |
| ALTERNATOR | |
| Model | LINZ SP10M F |
| No. of poles | 2 |
| Insulation class | H |
| Mechanical protection rating | IP23 |
| Voltage regulator | Compound |
| Power PRP 40ºC | 4.2 kVA |
| No. of phases | 1 |
| Power factor | 1 cos φ |
| Dimensions with casters | 856 x 696 x 652 mm |
| Weight with casters | 71.4 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
