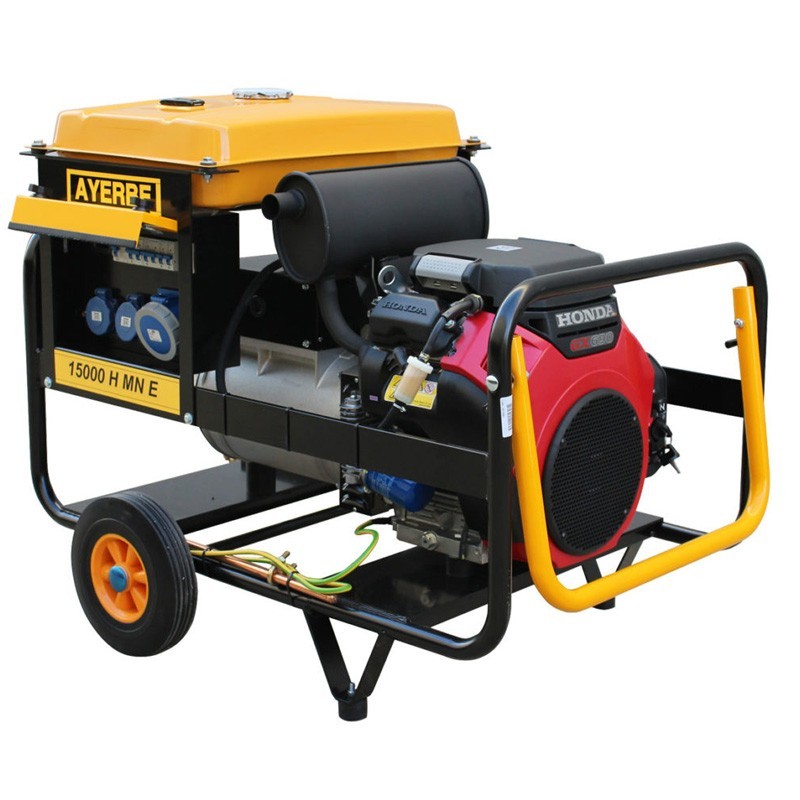

The Electric Generator Ayerbe AY 15000 H MN with an alternator MECC ALTE Model T20F 200, characterized by its brushless type that ensures greater efficiency and durability in its operation.
With a brushless self-excited excitation system, it offers an IP 23 protection level and Class H insulation, ensuring reliable performance even in demanding conditions.
Its two-pole design and 230V/50Hz voltage/frequency provides a stable output, with a voltage tolerance of +/- 5% and a Cos phi 0.8 power factor that optimizes its energy efficiency.
In addition, its electric start makes it accessible and easy to operate, while its sound level of 99 LwA / 76 LpA@7m allows for relatively quiet operation, ideal for various working environments.
| Maximum power | 15 KVA - 12,000 W |
| Rated power | 12,5 KVA - 10.000 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 230 V. / 50 Hz |
| Starting | Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 99 LwA / 76 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 690 |
| Power | 26 HP |
| Displacement | 688 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 3.8 L/H |
| Oil capacity | 1,9 L |
| Starting system | Electric |
| Alternator | |
| Brand | MECC ALTE |
| Model | T20F 200 |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 25 l |
| Autonomy at 75% | 6,5 hours |
| Weight | 170 kg |
| Dimensions | 1050 x 760 x 860 mm |
| Packing volume | 0,68 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
