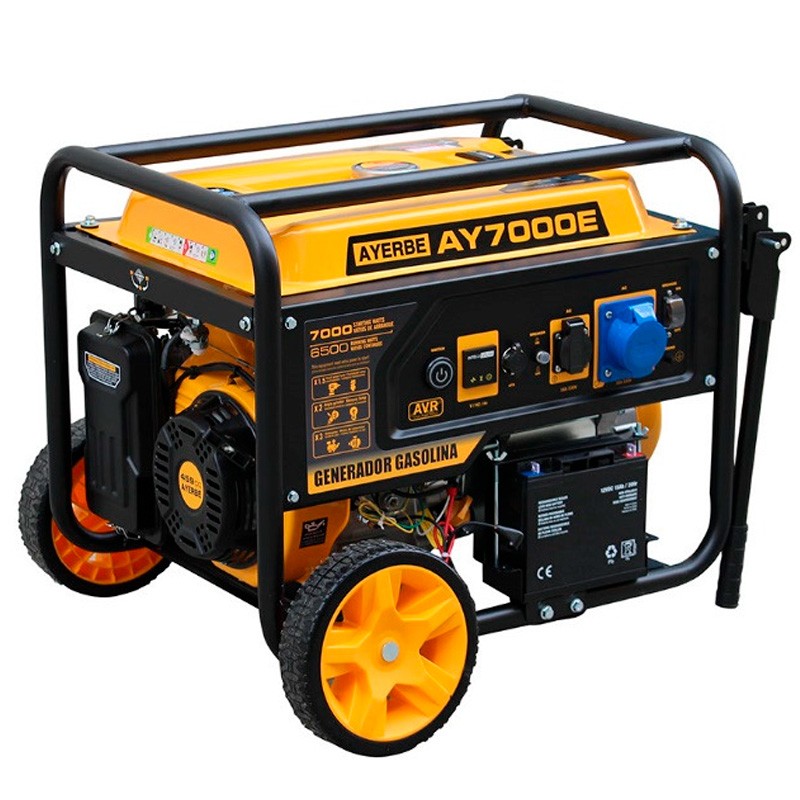

Electric generator Ayerbe 7000 E delivers 7,000 watts peak and 6,500 watts continuous at 230 volts 50 Hz with AVR electronic regulation that keeps the voltage stable at one percent. It features a 459 cc KIOTSU air-cooled engine with electric start for fast and reliable start-ups. The power factor is 0.8 and the sound level is 75 dB at seven meters for more comfortable work.
The AYERBE 7000 alternator uses class H insulation and IP23 protection designed for intensive outdoor use. The 25-liter tank and an approximate consumption of 2.4 liters per hour at 75 percent provide up to 10.5 hours of autonomy. At 95 kilos and measuring 815 by 570 by 560 millimeters, it is easy to transport and store. It is a robust solution for powering tools, pumps, lighting and domestic backup where the grid does not reach.
| Generator - Main data | |
| Engine brand | KIOTSU |
| Maximum power | 7.000 W |
| Rated power | 6.500 W |
| Rated speed | 3.000 r.p.m. |
| Voltage / Frequency | 230 V / 50 Hz |
| Start | Electric |
| Power factor | Cos φ 0.8 |
| Noise level | 98 LwA / 75 LpA at 7 m |
| Motor - Characteristics | |
| Manufacturer | KIOTSU |
| Model | KT |
| Displacement | 459 cm³ |
| Cooling System | Air |
| Recommended oil | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Consumption at 75% | 2.4 L/h |
| Oil capacity | 1,1 L |
| Starting system | Electric |
| Alternator | |
| Brand | AYERBE |
| Model | 7000 |
| Type | Electronic regulation |
| Insulation class | Class H |
| IP protection | IP 23 |
| Excitation system | A.V.R. |
| Voltage tolerance | ± 1% |
| No. of poles | 2 |
| Voltage / Frequency | 230 V / 50 Hz |
| Coating | Standard (without impregnation) |
| Dimensions and weight | |
| Length (L) | 815 mm |
| Height (H) | 560 mm |
| Width (W) | 570 mm |
| Packing volume | 0,26 m³ |
| Weight | 95 kg |
| Tank capacity | 25 L |
| Autonomy at 75% | 10.5 hours |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Battery NOT included for electric start
