Battery NOT included in electric start models

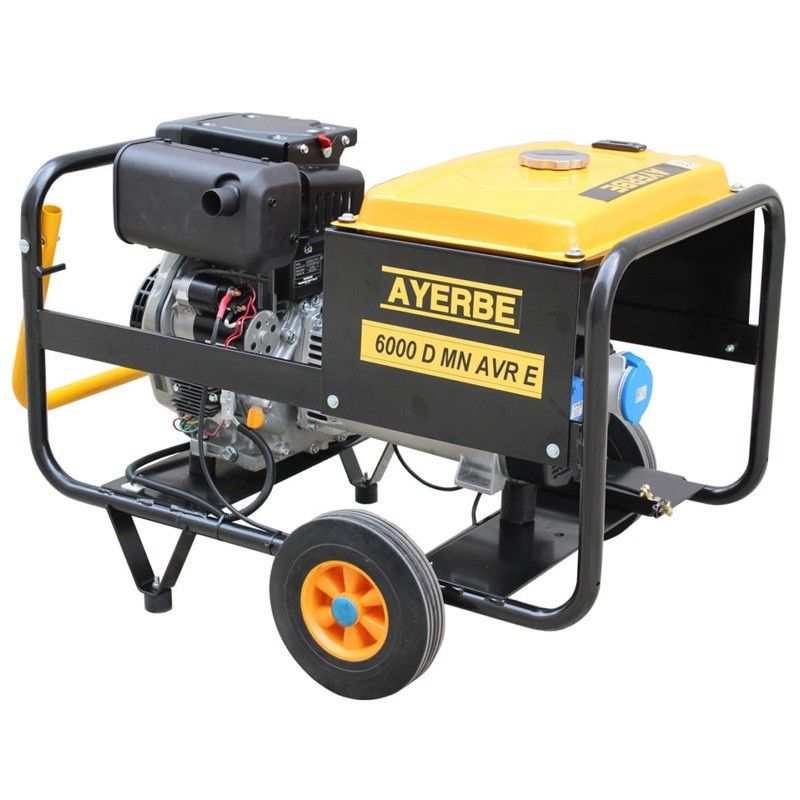

The electric generator Ayerbe AY 6000 D AVR E has an engine of the famous Yanmar LN-100 model that delivers 5000 watts of maximum power working at 3000 revolutions per minute.
The engine has 10 horsepower and is air-cooled. The fuel used by the engine is diesel and has a displacement of 406 cubic centimeters.
The alternator is a MECC ALTE model ES 20 FS, which incorporates an AVR regulation system. The autonomy of this generator reaches up to 12 hours thanks to its large tank of 15 liters and its low consumption of 1.7 liters per hour.
Finally, it weighs 110 kilograms and includes a handle and wheels for easy transport.
| Maximum power | 5.000 W |
| Nominal power | 4.500 W |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 230 V. / 50 Hz. |
| Starting | Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 108 LwA / 79 LpA@7m |
| Motor | |
| Brand | YANMAR |
| Model | LN 100 |
| Power | 10 HP |
| Displacement | 406 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | DIESEL |
| Fuel consumption at 75% | 1.7 L/H |
| Oil capacity | 1,1 L |
| Starting system | Electric |
| Alternator | |
| Brand | MECC ALTE |
| Model | ES 20 FS |
| Type | Electronic regulation |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | AVR |
| Voltage Tolerance | + - 1% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 15 l |
| Autonomy at 75% | 12 hours |
| Weight | 110 kg |
| Dimensions | 950 x 625 x 746 mm |
| Packing volume | 0,44 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
