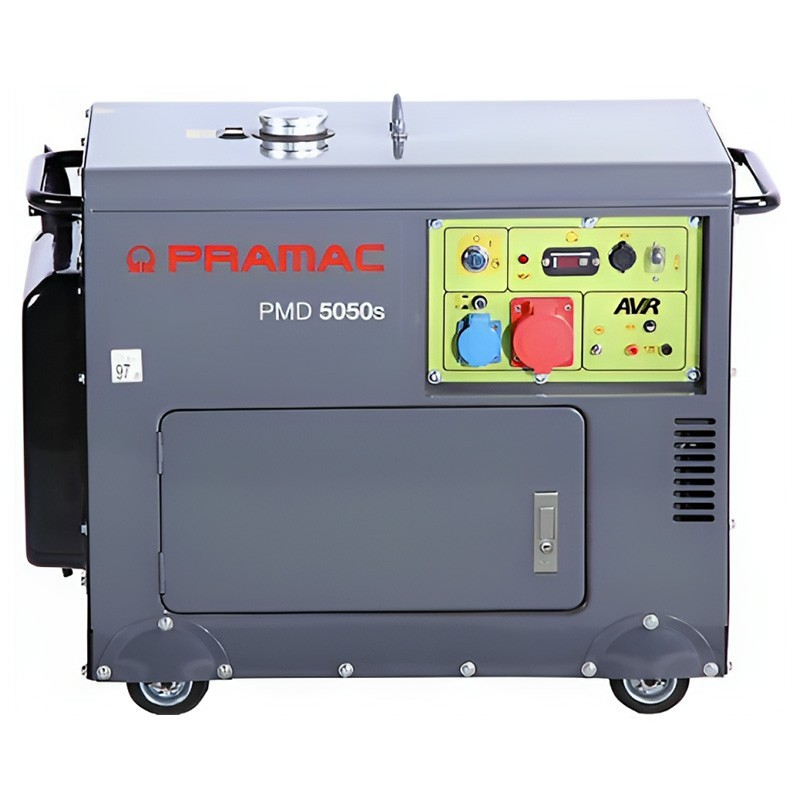

The Pramac PMD 5050S Diesel Electric Generator is a powerful power source with a robust and reliable design. With an operating frequency of 50 Hz and a voltage of 400/230 V in three phases, this generator offers a maximum three-phase power output of 5000 W, ensuring a stable and constant power supply.
In addition, its single-phase operating capability with 1330 W of maximum power makes it versatile for a variety of applications. This generator Pramac is powered by a 418 cc diesel engine with a rated operating speed of 3000 rpm, ensuring optimum efficiency.
Its electric start system makes it easy to start, and it has a 14.5-liter fuel tank that offers an autonomy of up to 11.3 hours at 50% load. Despite its powerful performance, the PMD 5050S generator is designed with noise consideration in mind, with noise pressure levels of 69 dB(A) at 7 meters and a guaranteed sound level of 97 dB(A).
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Phases | 3 |
| Maximum three-phase power | 4000 W |
| Nominal Power Three-phase | 3600 W |
| Maximum Power Single Phase | 1330 W |
| Nominal Power Single Phase | 1200 W |
| Brand | Pramac |
| Type | OHV |
| Rated operating speed | 3000 rpm |
| Fuel | Diesel |
| Starting system | Electric |
| Oil tank | 1.65 l |
| Displacement | 418 cc |
| Voltage regulation | AVR |
| Guaranteed sound level (LWA) | 97 dBA |
| Noise pressure level @ 7 mt | 69 dB(A) |
| Fuel tank capacity | 14.5 l |
| Fuel consumption @ 50% | 1.28 l/h |
| Autonomy @ 50% | 11.3 h |
| Dimensions | 910 x 518 x 682 |
| Dry weight | 185 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
