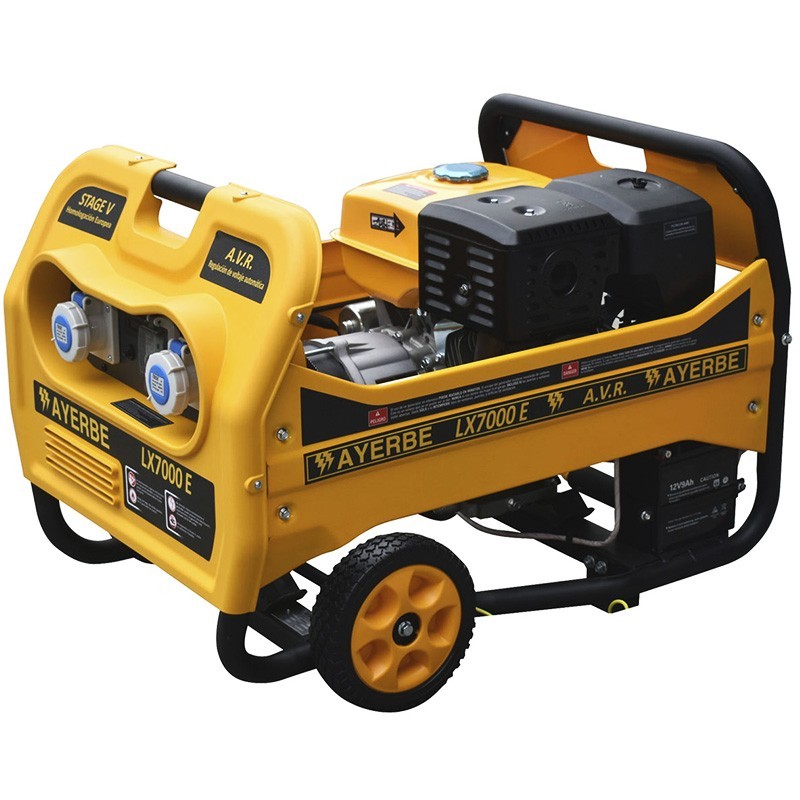

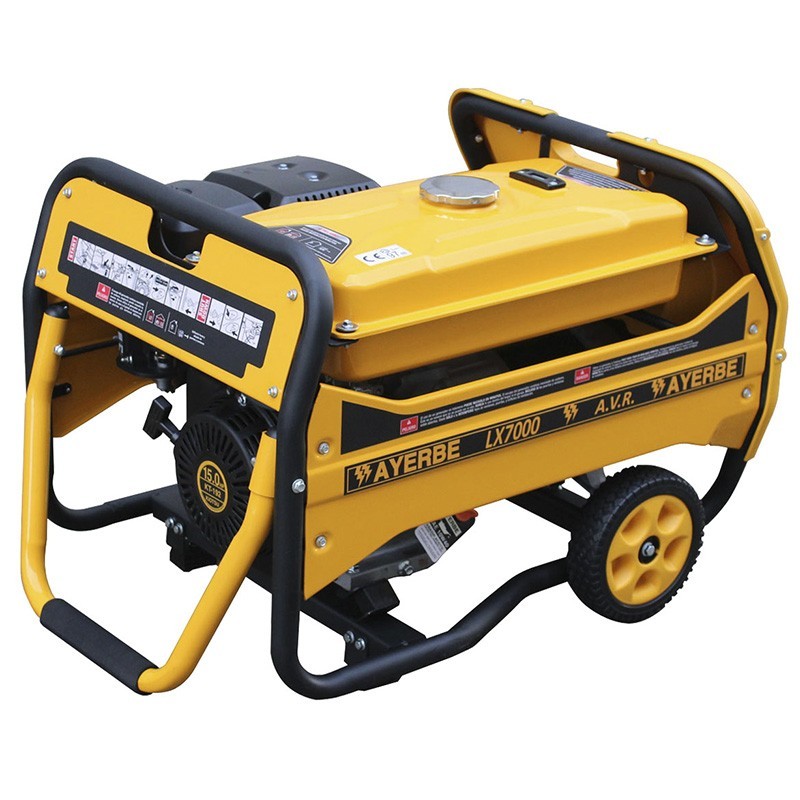

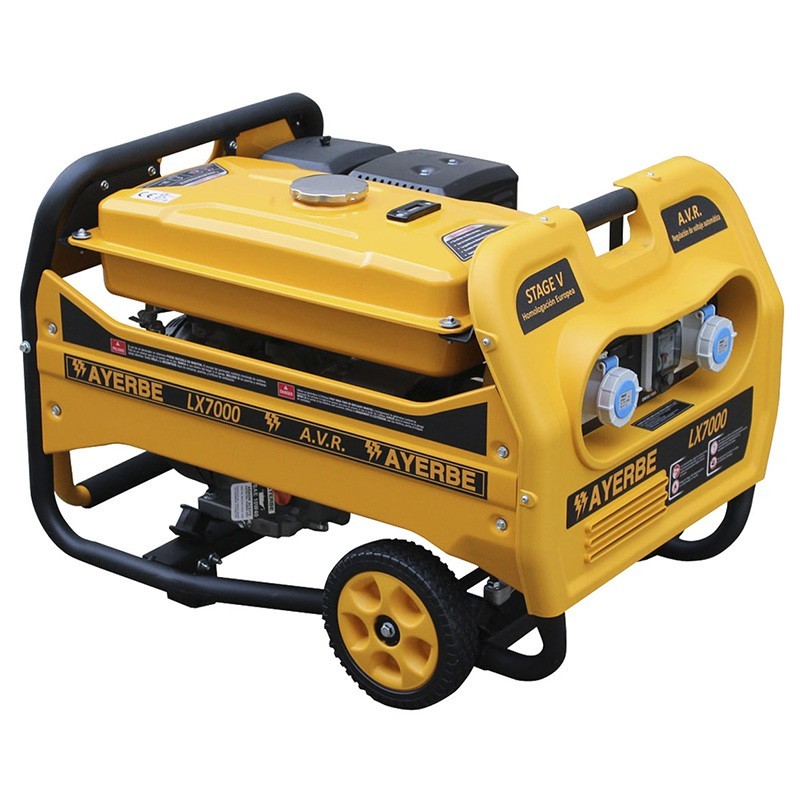

The Ayerbe LX7000/E single-phase gasoline generator is a powerful power source with a KIOTSU KT-192 F E engine of 15 hp and 450 cc displacement. With its electric start system, the LX7000 E model provides greater convenience compared to its manual start counterpart, the LX7000.
Its robust reinforced tubular chassis, together with front and side guards, ensures durability and safety in any environment. This generator stands out for its ergonomic design and easy mobility, thanks to its folding handlebars and 200 mm inflatable wheels.
The control panel is complete and intuitive, with features such as an hour meter, differential and ground spike, digital voltmeter, digital frequency meter, IP67 sockets, circuit breaker for overload protection, and a useful oil alarm.
With an efficient fuel consumption of 2.4 L/H at 75%, the Ayerbe LX7000/E is a reliable choice for meeting energy needs in a variety of applications.
| Maximum power | 7.000 W |
| Rated power | 6.500 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 230 V. / 50 Hz |
| Approved control panel | With IP 55 protection |
| Power factor | Cos phi 0,8 |
| Noise level | 98 LwA / 75 LpA@7m |
| Differential 0.03 Amp, voltmeter hour counter and grounding probe | |
| Motor | |
| Brand | KIOTSU |
| Model | KT-192 F E |
| Power | 15 HP |
| Displacement | 450 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.4 L/H |
| Oil capacity | 1,1 L. Includes 1.1 L oil bottle |
| Starting system | Manual or Electric |
| Alternator | |
| Brand | AYERBE |
| Model | 7000 |
| Type | Electronic regulation |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | A.V.R. |
| Voltage Tolerance | + - 1% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 18 l |
| Autonomy at 75% | 7,5 hours |
| Weight | 88 kg |
| Dimensions | 810 x 560 x 570 mm |
| Packing volume | 0,30 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
