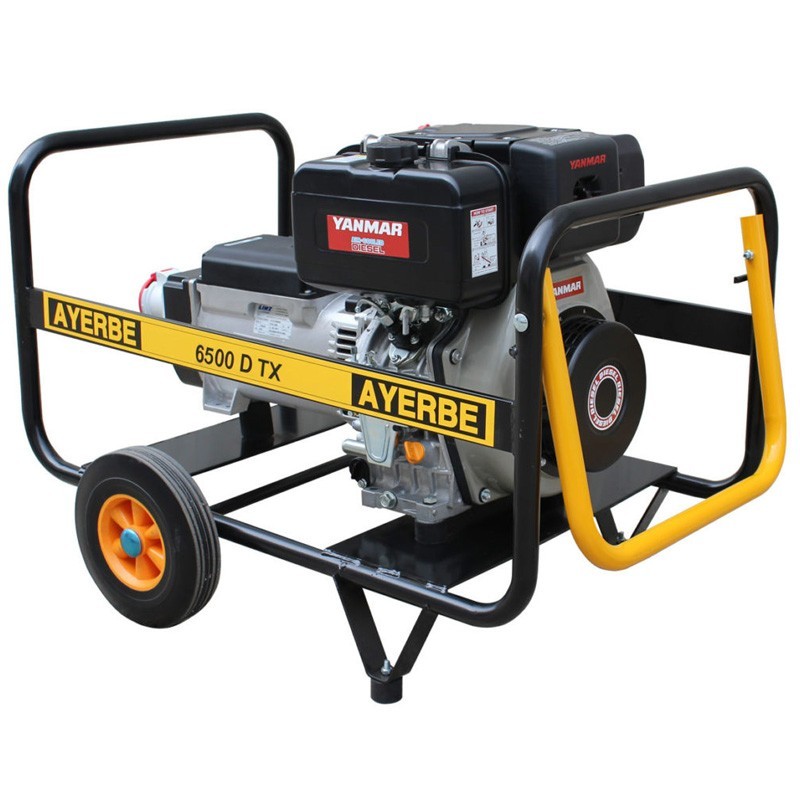

Today we present the powerful three-phase generator Ayerbe AY 6500 D TX which has a 10 hp Yanmar engine with 406 cc displacement. Stick around to see all that this magnificent generator has to offer.
The generator has a maximum power output of 6.5 kVA which is equivalent to 5200 W. This power is achieved by making the engine work at 3000 revolutions per minute.
In terms of consumption we can say that the AY 6500 D TX only consumes 1.7 liters of diesel per hour which gives us an autonomy from 3 to 12 hours depending on whether we choose the model with electric start as it has a larger tank.
In general, the generator has a manual start model with a tank of 5.5 liters and the electric start model with 15 liters of capacity.
| Maximum power | 6.5 KVA 400 V / 4 KVA 230 V |
| Nominal power | 6 KVA 400 V / 3 KVA 230 V |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 400 V - 230 V. / 50 Hz |
| Start | Manual or electric |
| Power factor | Cos phi 0,8 |
| Noise level | 108 LwA / 79 LpA@7m |
| Motor | |
| Brand | YANMAR |
| Model | LN 100 |
| Power | 10 HP |
| Displacement | 406 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | DIESEL |
| Fuel consumption at 75% | 1.7 L/H |
| Oil capacity | 1,1 L |
| Starting system | Manual or electric |
| Alternator | |
| Brand | LINZ |
| Model | E1S 10 MG |
| Type | With brushes |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Compound |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity (manual start model) | 5,5 l |
| Tank capacity (electric start model) | 15 l |
| Autonomy at 75% (manual start model) | 3.3 hours |
| Autonomy at 75% (electric start model) | 12 hours |
| Weight | 110 kg |
| Dimensions | 950 x 625 x 746 mm |
| Packing volume | 0,44 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
