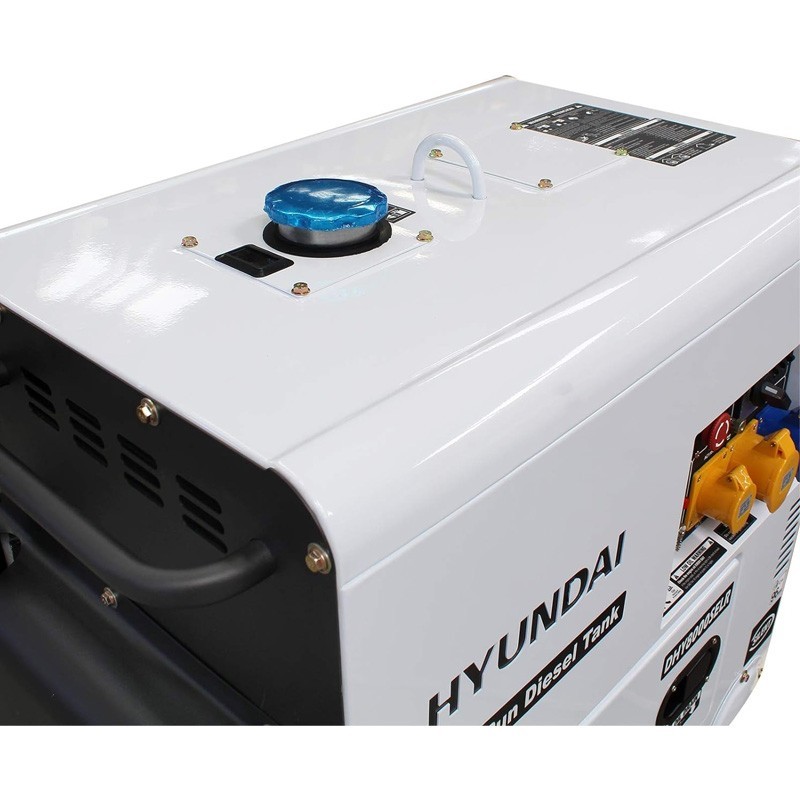

HYUNDAI diesel electric generator DHY8500LEK-T equipped with a 4-stroke air-cooled engine with direct injection, this generator ensures reliable and efficient performance. Its low oil level alarm with automatic engine shutdown protects against damage due to lack of lubrication, ensuring engine durability.
For smooth and quiet operation, the DHY8500LEK-T features a double support base that reduces vibration and a quiet design that minimizes noise. Its generous fuel tank and the ability to run for 10 hours at 50% load make it ideal for long-term applications. In addition, the signal start capability provides convenience and versatility in use.
With additional features such as an overload protector, pre-heat system for trouble-free starting, grounding and 12V DC output, this generator is a complete solution for your power needs. The compact and low-maintenance engine, along with the reduced injection system, ensures efficient and economical operation.
| Gifts |
|
| Frequency | 50 Hz |
| Nominal Power | 5 kW |
| Maximum Power | 5,3 kW |
| Voltage | 230 V |
| Current | 23,9 A |
| Sockets | 2x16A |
| Digital display | LED6 |
| Tank capacity | 12 L |
| Operation at 50% load | 10 h |
| Noise level at 7 Mts; 50% | 72 dBA |
| Battery | 36 Ah |
| Engine Type | Diesel |
| HYUNDAI engine model | D400E |
| Power | 10 HP |
| Starting mode | Electric |
| Displacement | 418 cc |
| Oil capacity | 1,65 L |
| Alternator | A5S |
| Rated power | 5 kVA |
| Power factor | 1 Cos φ |
| Voltage regulation type | AVR |
| Net Weight | 152 Kg |
| Gross Weight | 168 Kg |
| Product Dimensions | 920x520x760 mm |
| Packing Dimensions | 950x570x790 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines area free gift, so they are exempt from warranty. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Battery NOT included in electric start models
