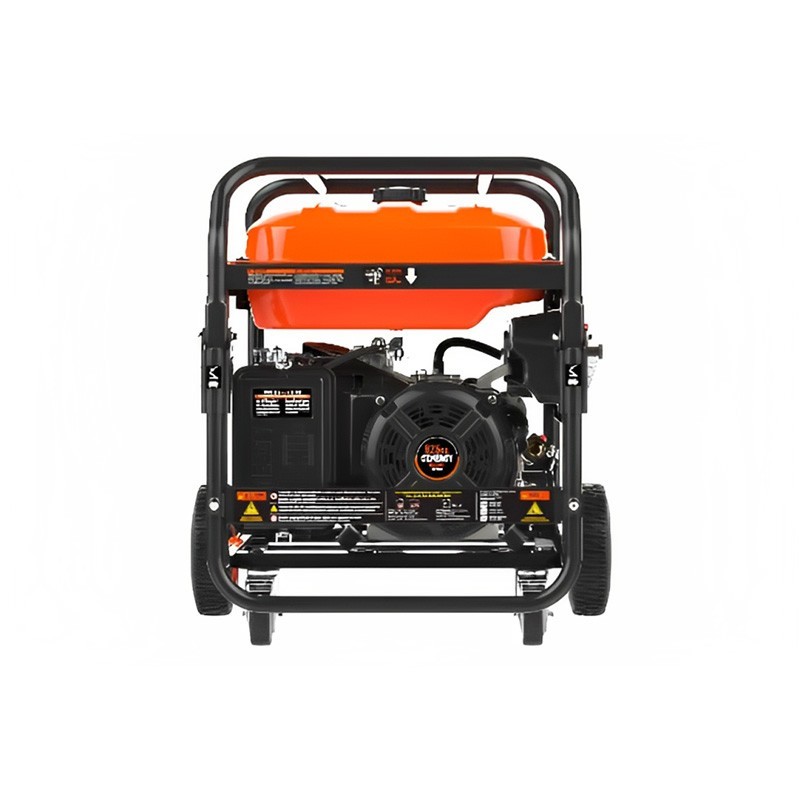

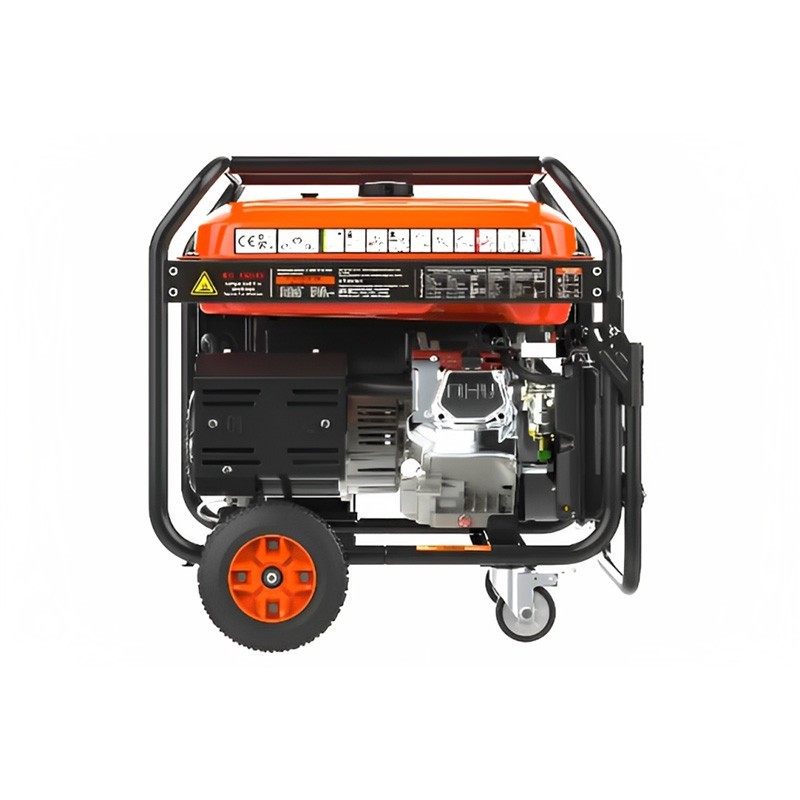

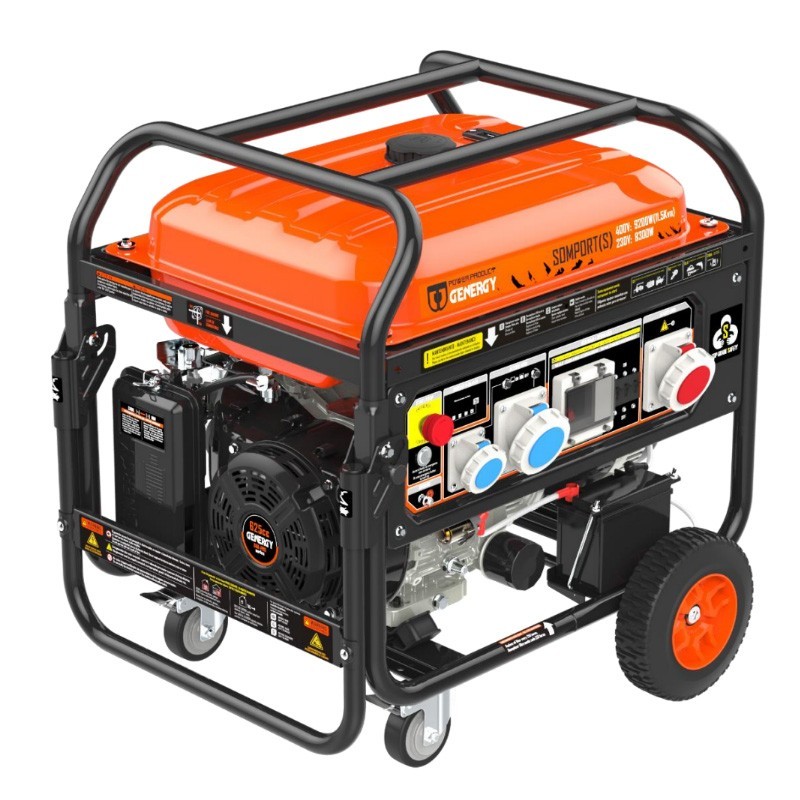

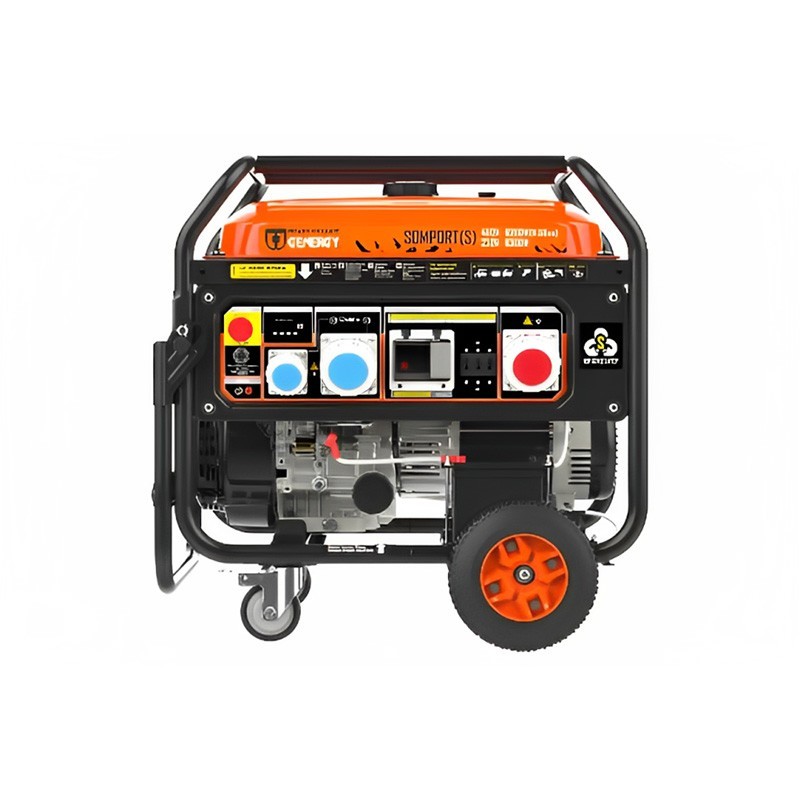

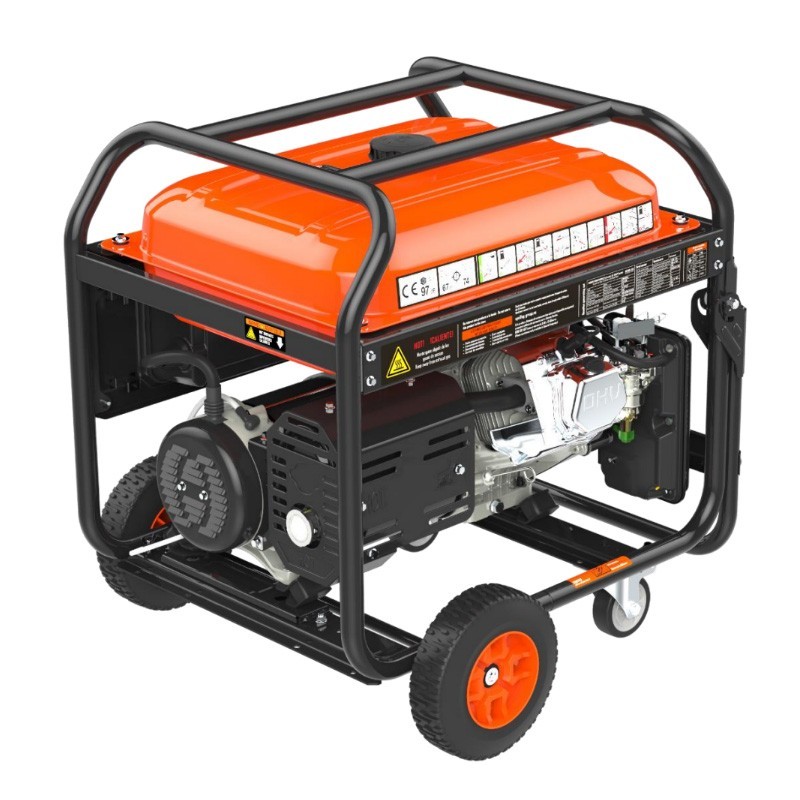

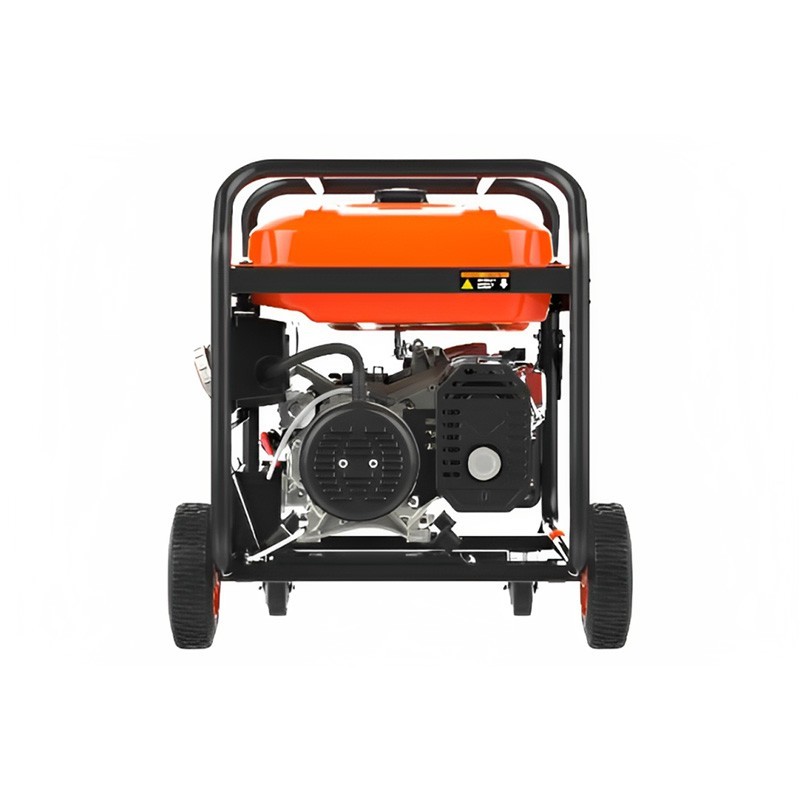

The Gasoline Electric Generator Genergy Somport-S Dual Volt, has a 4-stroke OHV air-cooled gasoline engine, equipped with a copper coil and has a weight of 125 Kg.
Its voltage is 230/400V and a frequency of 50 Hz. It has an oil capacity and grade of 1.1L - SAE10W40, a displacement of 625 cc. It includes a kit of two 10" and two 360º anti-puncture wheels.
The electric generator gasoline Genergy Somport-S Dual Volt has dimensions of 812x763x811mm, a rated power of 9000 W and a maximum power of 9200 W. It has an electronic stabilization system "SVR", it has a Dual Volt type current.
| Stabilization system | SVR" Electronic |
| Voltage - Frequency | 230/400V - 50Hz |
| Maximum Power (230V) | 8300 W |
| Nominal Power (230V) | 8000 W |
| Maximum Power (400V) | 9200 W (11.5Kva) |
| Rated Power (400V) | 9000 W (11.25Kva) |
| Type by number of phases | Dual voltage |
| Power Factor | 1.0 / 0.8 |
| Motor Model | SGB620 |
| Displacement | 625 cc |
| Engine type | Gasoline, 4-stroke OHV air cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 68 dB (A) - 74 dB (A) |
| Guaranteed sound power level LwA | 97 dB (A) |
| Start-up type | Electric |
| Fuel tank capacity | 50 L |
| Consumption at 25-50-75% load | Single-phase: 2.4 l/h-3.11l/h-3.82l/h Three-phase: 2.38 l/h 3.17l/h-3.96l/h |
| Autonomy 25-50-75% load | Single-phase: 20.76h-16.09h-13.09h Three-phase: 21h-15.76h-12.61h |
| Oil capacity and grade | 1.4L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G2 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Yes with two 10" and two 360º anti-puncture wheels. |
| Dimensions | 790x660x700mm - 812x763x811mm |
| Weight | 125 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
