Liquid Extractor-Injector Kit Anova
- Liquid extractor-injector kit Anova
€33.20 VAT incl.

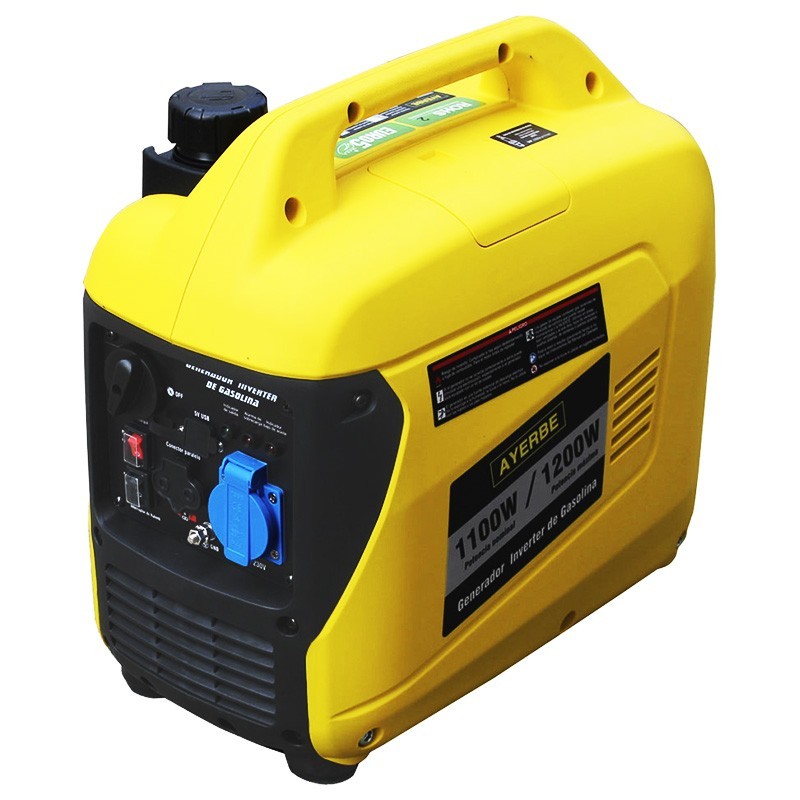

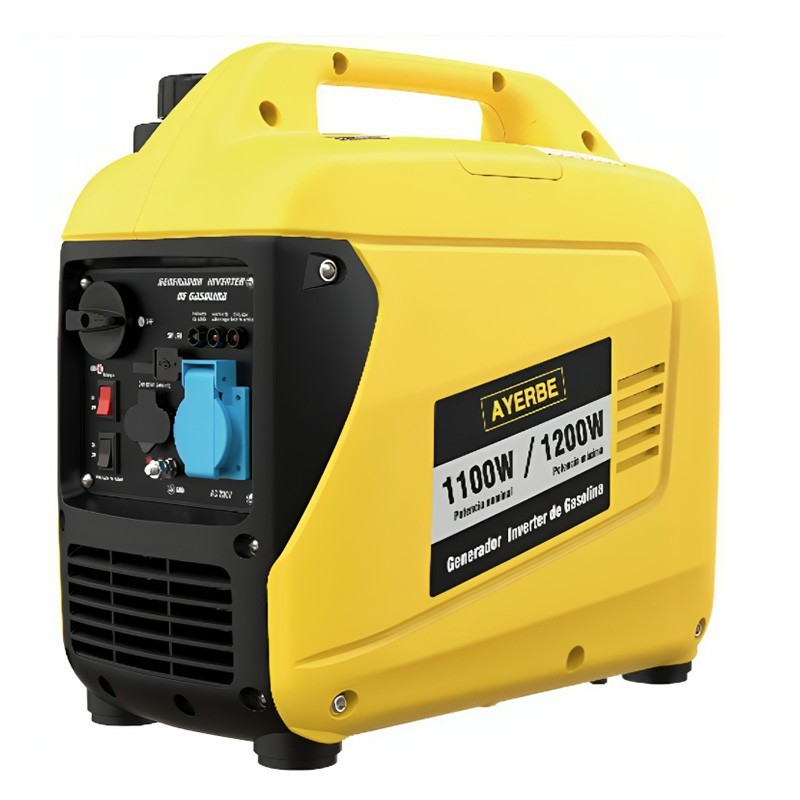

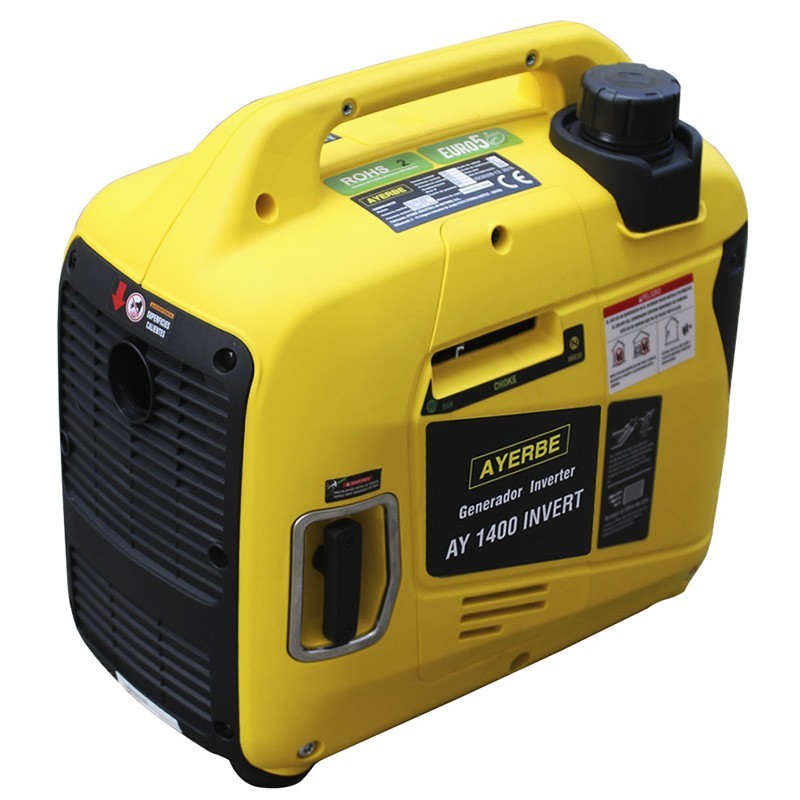

The single-phase gasoline generator Ayerbe AY 1400 Inverter stands out for its KIOTSU KT-172 engine, which provides a maximum power output of 1200 W and a rated power of 1100 W. With a voltage of 230 V and a frequency of 50 Hz, this generator offers reliable performance for various applications.
Its efficient fuel consumption of 0.65 L/h and a 2.5 L tank ensure a long service life during operation. Weighing 12 kg, this generator is compact and easy to transport, ideal for situations where mobility is essential.
Its manual start, together with the fuel level indicator and oil level alarm, provide convenient and safe operation. In addition, its 59 dB sound level ensures unobtrusive operation, minimizing acoustic disturbance in noise-sensitive environments.
Maximum power | 1.200 W |
Rated power | 1.100 W |
R.p.m. | 3.000 r.p.m. |
Voltage / Frequency | 230 V. / 50 Hz. |
Start | Manual |
Power factor | Cos phi 0,8 |
Noise level | 83 LwA / 59 LpA@7m |
Motor | |
Brand | KIOTSU |
Model | KT-172 |
Power | 7 HP |
Displacement | 80 cc |
Cooling system | Air |
Engine oil type | SAE 20W40 / IPE grade CD, CF |
Aspiration | Natural |
R.P.M. of engine | 3.600 r.p.m. |
Speed governor | Mechanics |
Fuel | Gasoline |
Fuel consumption at 75% | 0.65 L/H |
Oil capacity | 0,8 L |
Starting system | Manual |
Alternator | |
Brand | AYERBE |
Model | 1400 |
Type | Inverter |
Insulation type | Class H |
IP protection | IP 23 |
Excitation system | Inverter |
Voltage Tolerance | + - 1% |
Poles | 2 |
Voltage / Frequency | 230 / 50 Hz. |
Type of coating | Standard (without impregnation) |
Dimensions and Weight | |
Tank capacity | 2,5 l |
Autonomy at 75% | 3 hours |
Weight | 12 kg |
Dimensions | 390 x 295 x 250 mm |
Packing volume | 0,2 m³ |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
