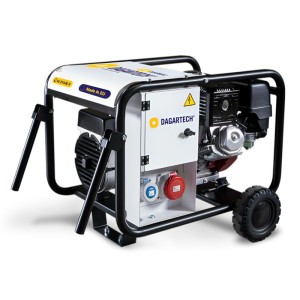

The three-phase electric generator Dagartech DGH 9 TF BC operates at a frequency of 50Hz and with a voltage of 400/230V, this generator is designed for a wide variety of applications. Its three-phase power rating of 8000W and single-phase power rating of 6500W make it a reliable choice for meeting power needs in different environments.
This generator is powered by a robust HONDA GX 390 engine with 8.2 kW continuous power at 3000 rpm, ensuring stable and durable performance. The air-cooling system and 6.1-liter tank capacity ensure reliable operation over long periods of time, with an efficient fuel consumption of 1.8 l/h at 75% load. In addition, its manual start and compact design make it easy to transport and handle.
The LINZ E1S10L L alternator, with 2 poles and insulation class H, ensures constant and stable power output. With a power factor of 0.8 cos φ, this generator is ideal for powering a wide range of electrical devices and equipment. Its compound voltage regulator and IP23 mechanical protection rating ensure safe and reliable operation in various conditions.
| Frequency | 50Hz |
| Voltage | 400/230V |
| Working speed | 3000 rpm |
| Power factor | 0.8 cos φ |
| Tank | 6,1 L |
| Starting type | Manual |
| Nominal three-phase power | 8000 W |
| Single-phase rated power | 6500 W |
| MOTOR | |
| Model | HONDA GX 390 |
| Continuous power 3000 rpm | 8,2 kW |
| Net power 3600 rpm | 8,7 kW |
| Fuel | Gasoline |
| No. of cylinders | 1 cylinder |
| Displacement | 390 cc |
| Compression ratio | 8,2:1 |
| Maximum torque | 25.1 Nm (2500 r.p.m.) |
| Cooling system | Air-cooled |
| Starting | Manual |
| Fuel tank capacity | 6,1 L |
| Consumption at 75 - 100% load | 1,8 l/h - 2,4 l/h |
| Autonomy 75 - 100% charge | 3,4 h - 2,5 h |
| Total oil capacity | 1,1 L |
| Oil type | 15W40 |
| ALTERNATOR | |
| Model | LINZ E1S10L L |
| No. of poles | 2 |
| Insulation class | H |
| Mechanical protection rating | IP23 |
| Voltage regulator | Compound |
| Power PRP 40ºC | 10 kVA |
| No. of phases | 3 |
| Power factor | 0.8 cos φ |
| Dimensions with casters | 856 x 696 x 652 mm |
| Weight with casters | 106.3 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
