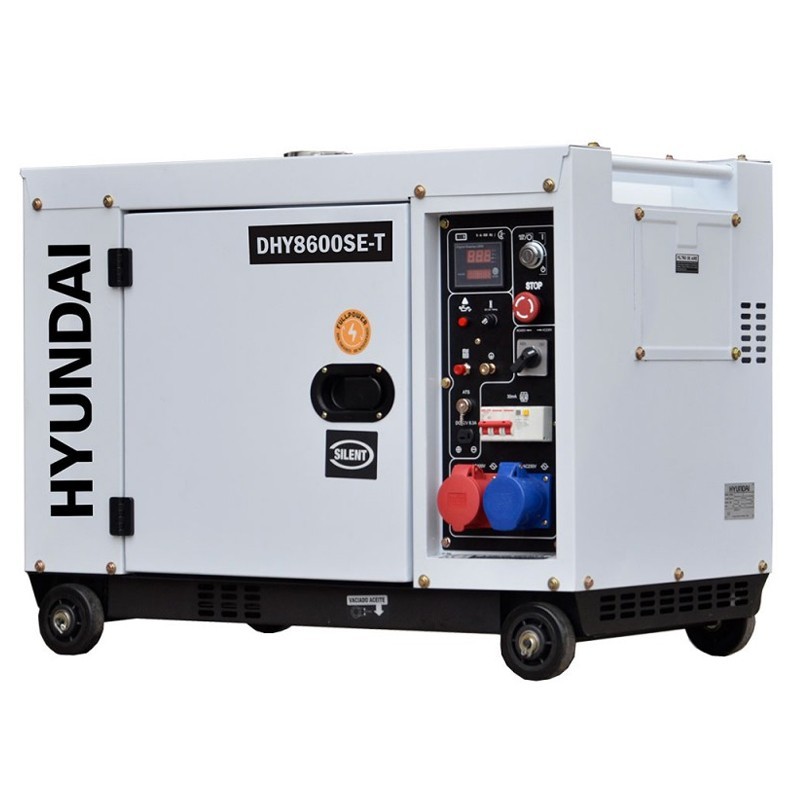

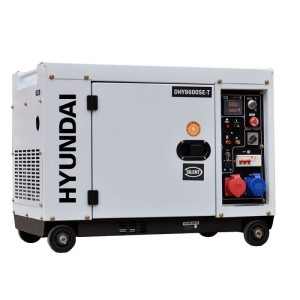

The Full Power HYUNDAI DHY8600SE-T electric generator with a frequency of 50Hz and a rated power of 7.5 kVA at 400V or 5.5 kW at 230V, this generator is designed to provide reliable power in various situations. Its maximum power output reaches 7.9 kVA at 400V or 6.0 kW at 230V, ensuring a robust and stable power supply.
The diesel engine Hyundai model D500E, with an output of 13 HP, offers efficient and durable performance, and its electric starter makes it easy to start. The generator has a FULL POWER alternator that provides 100% of the power in three-phase and single-phase configuration through a selector switch, providing versatility in its use.
In addition, its LED digital display allows precise monitoring and its 12-liter tank capacity guarantees continuous operation for up to 10 hours with a 50% load. Despite its power, this generator is surprisingly quiet, with a noise level of 72 dBA at 7 meters distance at 50% load.
With a robust design and product dimensions of 920x520x760 mm, this generator is easy to transport and store. Its net weight of 152 kg and gross weight of 168 kg make it manageable and sturdy.
| Frequency | 50HZ |
| Rated power | 7.5 kVA (400) / 5.5 kW (230) |
| Maximum power rating | 7.9 kVA (400) / 6.0 kW (230) |
| Voltage | 400 V / 230 V |
| Currents | 14 A(400) / 28 A(230) |
| Sockets | 1xPCE5p (400) / 1x32A (230) |
| Digital display | LED6 |
| Tank capacity | 12L |
| Operation at 50% load: | 10 hours |
| Noise level at 7mts 50% load dBA | 72dBA |
| Battery | 36 Ah |
| Engine type | Diesel |
| Engine Hyundai model | D500E |
| Power | 13 HP |
| Starting mode | Electric |
| Displacement | 498 cc |
| Oil capacity | 1,65 L |
| Alternator | A6T |
| Rated power | 5 |
| Power factor | 0.8 / 1 Cos φ |
| Voltage regulation type | AVR |
| Net weight | 152 kg |
| Gross weight | 168 kg |
| Product dimensions | 920x520x760 mm |
| Packing dimensions | 950x570x790 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
