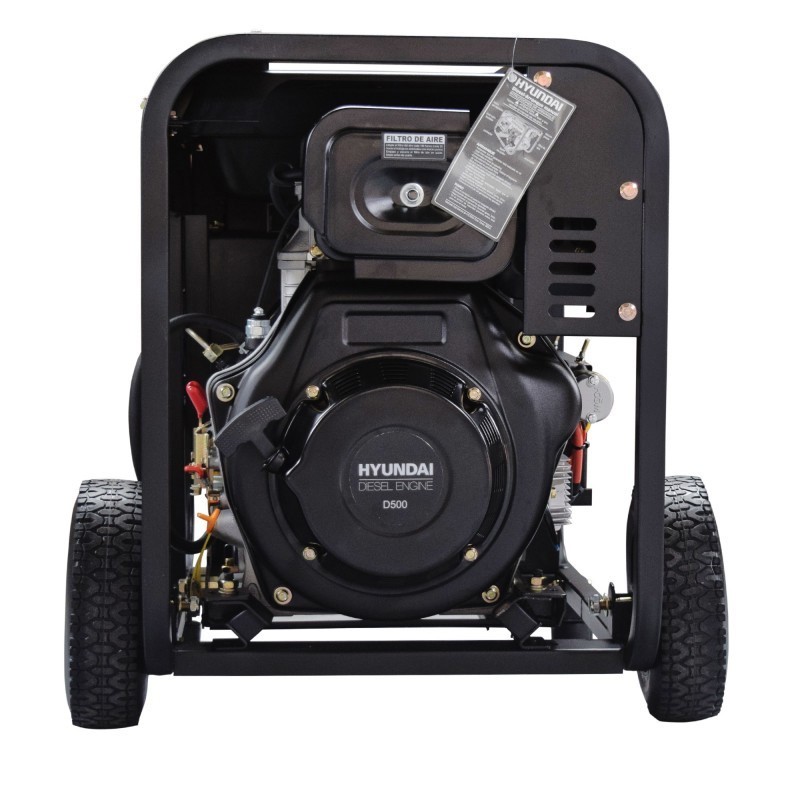

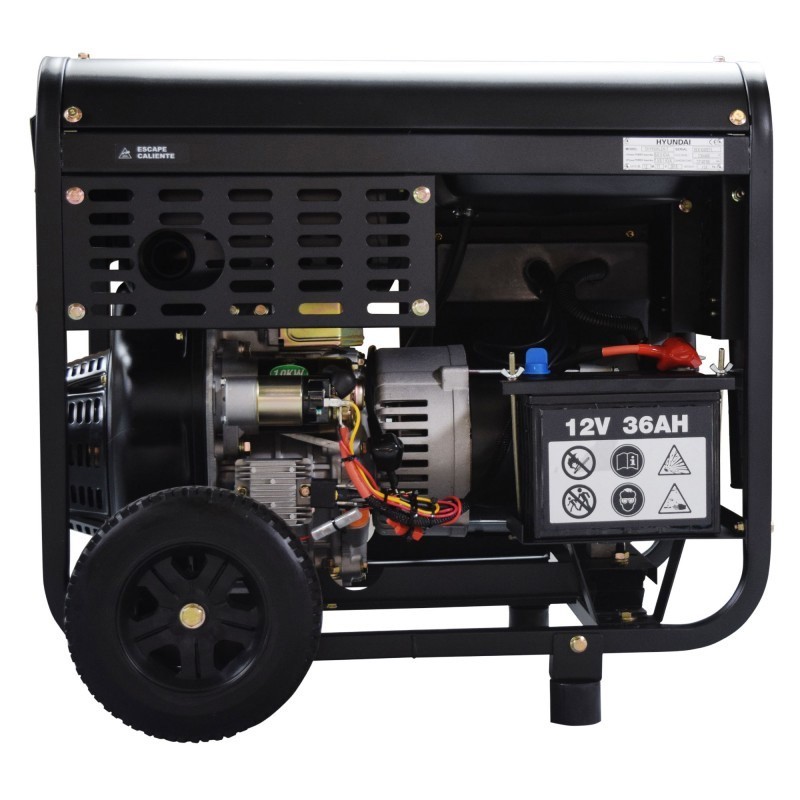

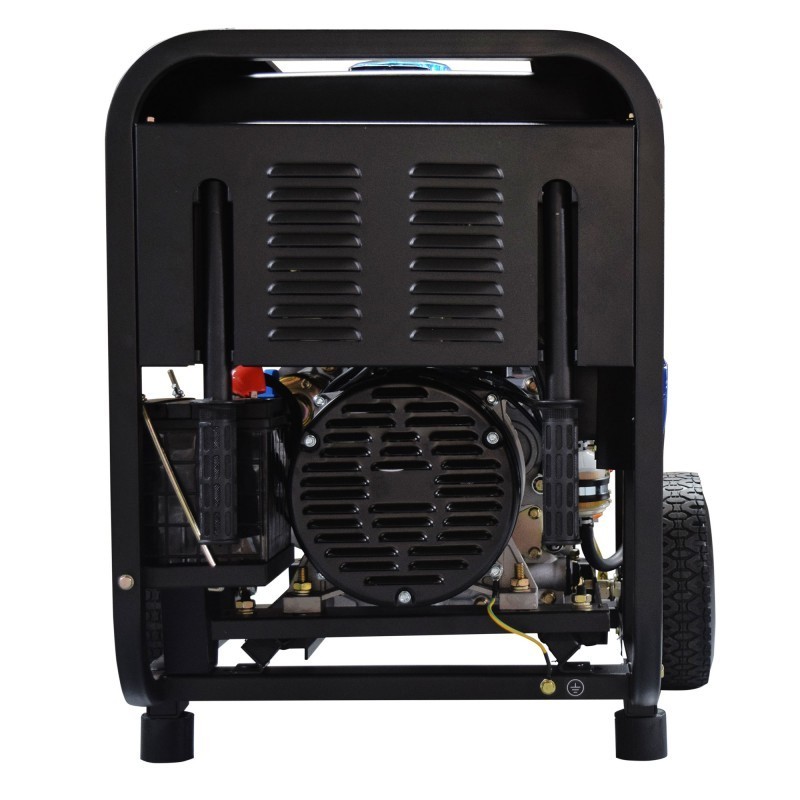

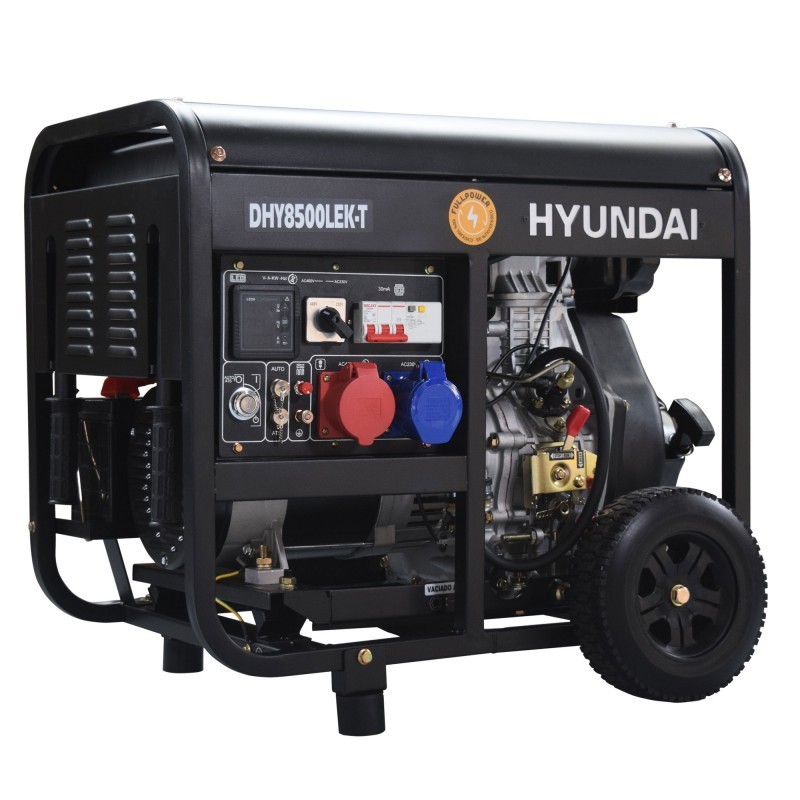

HYUNDAI diesel electric generator DHY8500LEK-T features compact alternator and precise voltage regulation by AVR, ensuring stable operation. Its brushed design and 100% copper winding guarantee long-lasting performance.
The control panel offers essential features such as overload protection, LED display, pre-heating system for easy starts and low oil level alarm. With ATS capability and quick connector, it facilitates maintenance and ensures safe operation.
In terms of performance, the DHY8500LEK-T provides 7.5 kVA in three-phase and 5.5 kW in single-phase power ratings , with voltages of 400V and 230V respectively. With 14 liters of tank capacity, it can operate up to 13 hours at 50% load, making it a reliable choice for various applications.
With a noise level of 77 dBA at 7 meters, it is suitable for residential and industrial use. Its 13 HP diesel engine and electric start ensure optimum performance. With a net weight of 116 kg and compact dimensions, the HYUNDAI DHY8500LEK-T offers power and practicality for power generation needs.
| Frequency | 50 Hz |
| Nominal Power Trif. | 7.5 kVA (400) |
| Maximum Power Trif. | 8.1 kVA (400) |
| Nominal Power Mon. | 5.5 kW (230) |
| Max. Mon. Power | 6.0 kW (230) |
| Voltage | 400 V / 230 V |
| Current | 14 A (400) / 286 A (230) |
| Sockets | 1xPCE5p (400) / 1x32A (230) |
| Digital display | LED6 |
| Tank capacity | 14 L |
| Operation at 50% load | 13 h |
| Noise level at 7 Mts; 50% | 77 dBA |
| Battery | 30 Ah |
| Engine Type | Diesel 4T |
| HYUNDAI engine model | D500E |
| Power | 13 HP |
| Starting mode | Electric |
| Displacement | 498 cc |
| Oil capacity | 1,65 L |
| Alternator | A6T |
| Rated power | 7.5 kVA |
| Power factor | 0.8 / 1 Cos φ |
| Voltage regulation type | AVR |
| Net Weight | 116 Kg |
| Gross Weight | 120 Kg |
| Product Dimensions | 720x480x600 mm |
| Packing Dimensions | 740x500x645 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
