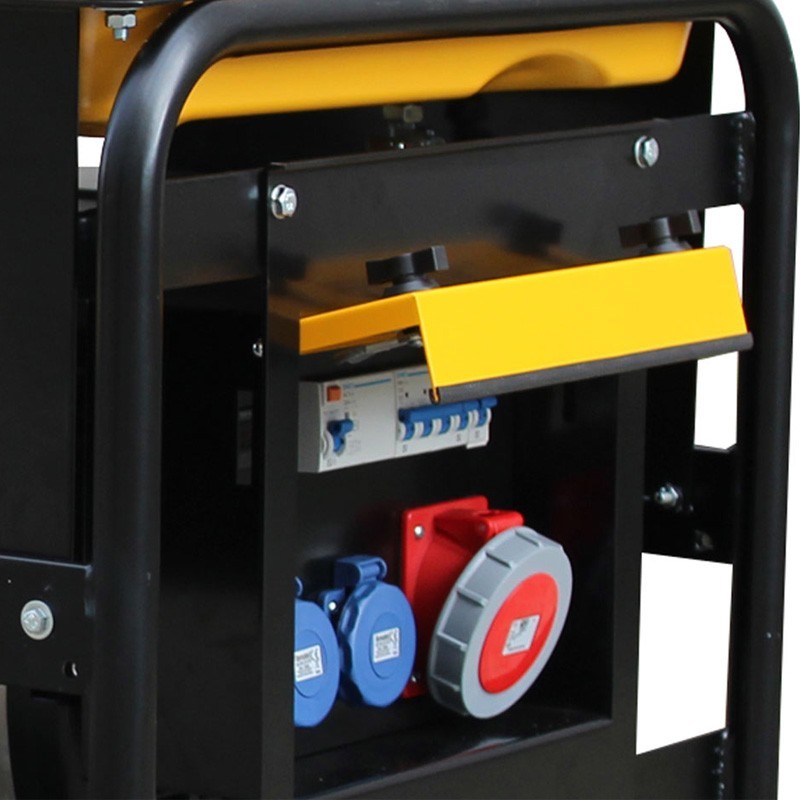

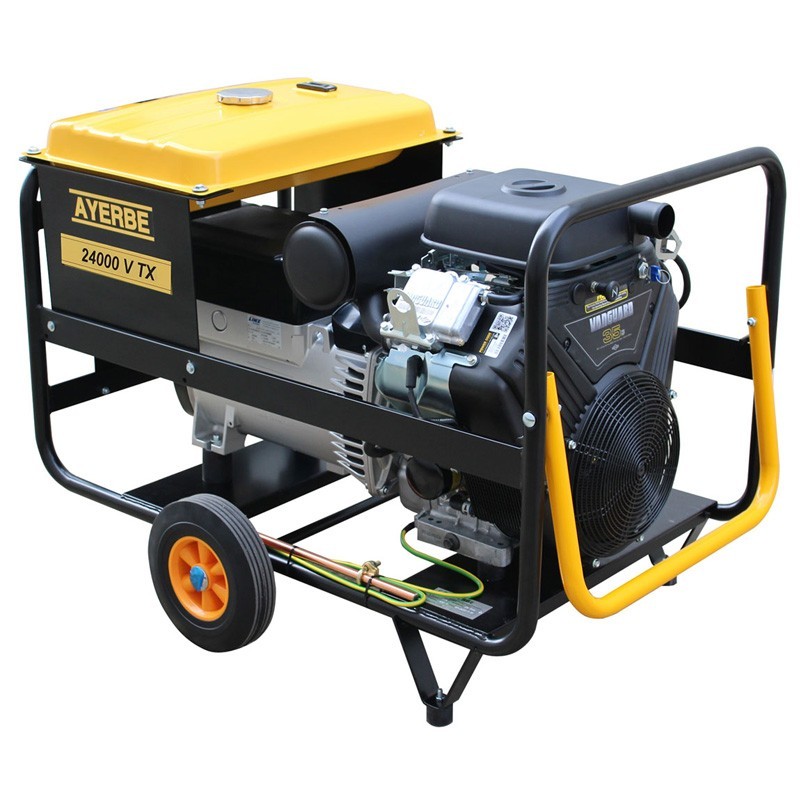

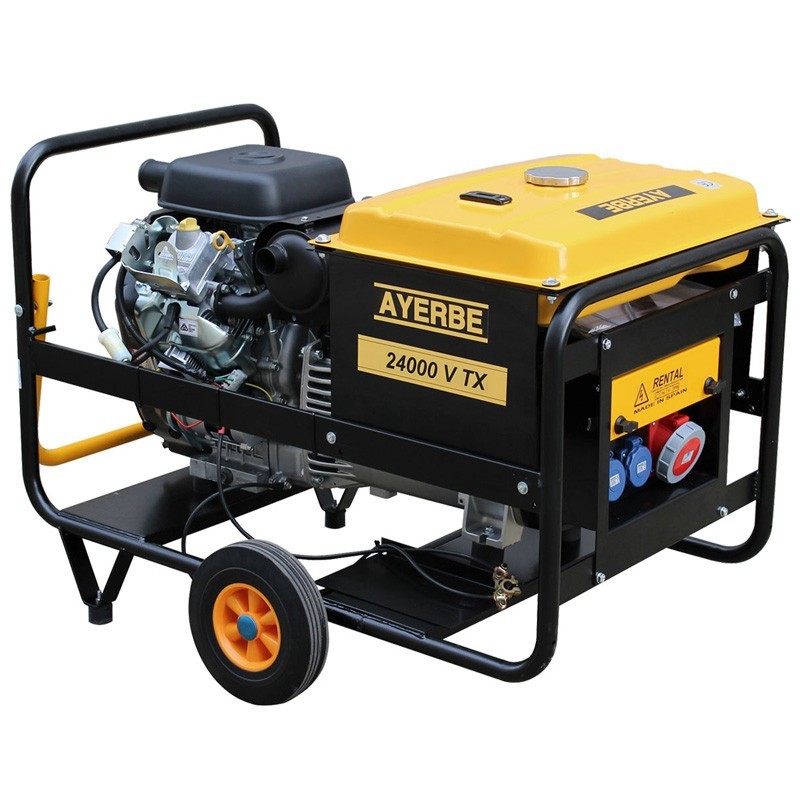

The Gasoline Electric Generator Ayerbe AY 24000 V TX E is a powerful and reliable machine designed to provide power in a variety of applications. Equipped with a Vanguard TWIN 35 E engine of 35 HP and 993 cc displacement, this generator runs on gasoline and has a consumption of 4.2 L/H at 75% load, which makes it fuel efficient. It comes with an approved control panel.
Thanks to its electric starting system and mechanical speed regulator, it is easy to start and maintain a constant power supply. With a maximum power of 24 KVA at 400 V and 8 KVA at 230 V, this generator is versatile and can handle varied loads. In addition, its air cooling system and the use of SAE 20W40 oil ensure optimal and long-lasting performance.
| Maximum power 400 V | 24 KVA - 19200 W |
| Rated power 400 V | 22 KVA - 17600 W |
| Maximum power 230 V | 8 KVA |
| Rated power 230 V | 7 KVA |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 400 & 230 V. / 50 Hz |
| Starting | Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 99 LwA / 76 LpA@7m |
| Motor | |
| Manufacturer | VANGUARD |
| Model | TWIN 35 E |
| Power | 35 HP |
| Displacement | 993 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 4.2 L/H |
| Oil capacity | 2,4 L |
| Starting system | Electric |
| Alternator | |
| Brand | LINZ |
| Model | E1S13M E/2 |
| Type | Compound |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 400 & 230 / 50 Hz |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 25 l |
| Autonomy at 75% | 6,5 hours |
| Weight | 180 kg |
| Dimensions | 1.050 x 860 x 760 mm |
| Packing volume | 0,67 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
