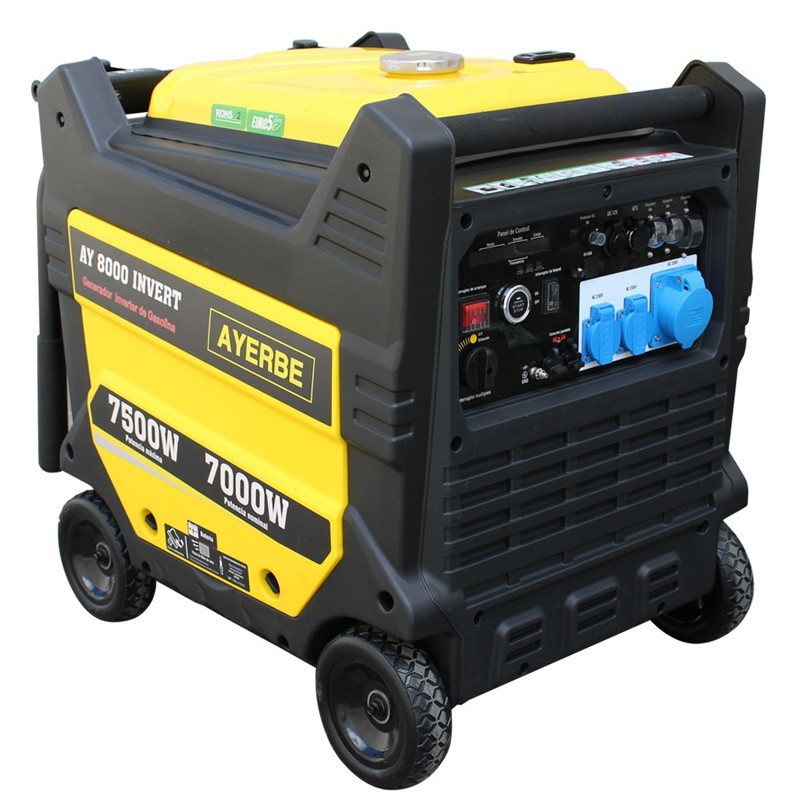

The Electric Generator Ayerbe 8000 Inverter is a reliable power source with a maximum power of 7,500 W and a rated power of 7,000 W, ensuring a stable supply of electricity. With an engine operating at 3,000 r.p.m., this generator provides a voltage of 230 V and a frequency of 50 Hz, suitable for various applications.
Its soundproof enclosure ensures quiet operation, with a sound level of 91 LwA / 67 LpA at 7 meters distance, making it an efficient choice for noise-sensitive environments.
The Ayerbe 8000 Inverter generator features an electric starter for easy start-up, and its Cos phi 0.8 power factor ensures optimum power conversion efficiency.
Equipped with a Ayerbe model 8000 Inverter alternator with Class H insulation class, this generator offers a high level of protection (IP23) and uses an Inverter excitation system for stable and safe performance in different conditions.
Technical Data
| Maximum power | 7.500 W |
| Rated power | 7.000 W |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 230 V. / 50 Hz. |
| Soundproof Cabin | Yes |
| Starter | Electric |
| Power factor | Cos phi 0.8 |
| Noise level | 91 LwA / 67 LpA@7m |
| Motor | |
| Brand | KIOTSU |
| Model | KT-425 |
| Power | 14 HP |
| Displacement | 459 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.1 L/H |
| Oil capacity | 01,1 L |
| Starting system | Electric |
| Alternator | |
| Brand | AYERBE |
| Model | 8000 |
| Type | Inverter |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Inverter |
| Voltage Tolerance | + - 1% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 26 l |
| Autonomy at 75% | 12 hours |
| Weight | 57 kg |
| Dimensions | 820 x 640 x 780 mm |
| Packing volume | 0,41 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
