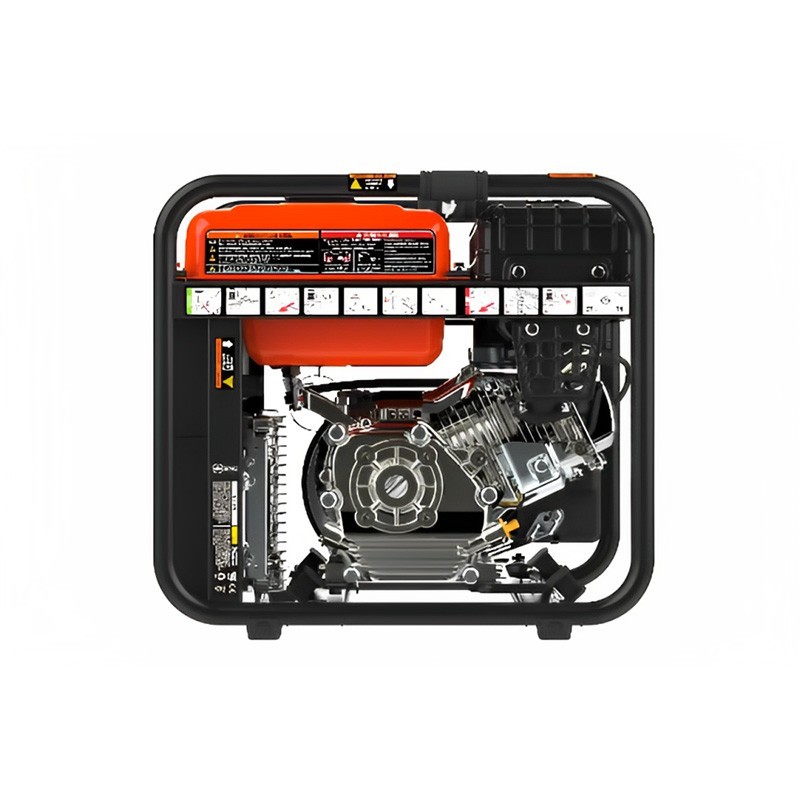

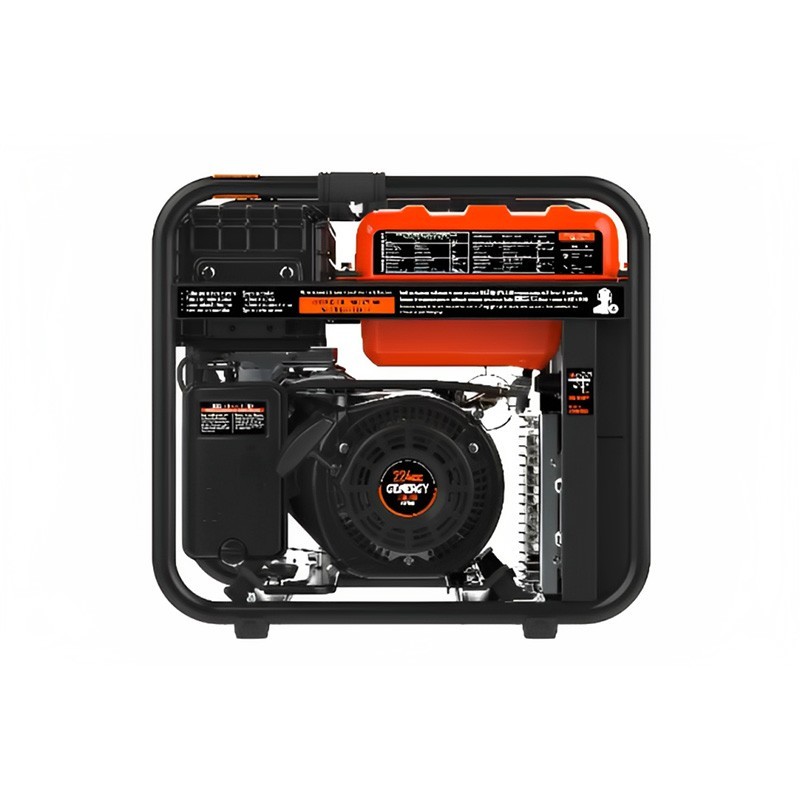

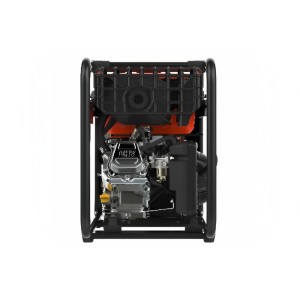

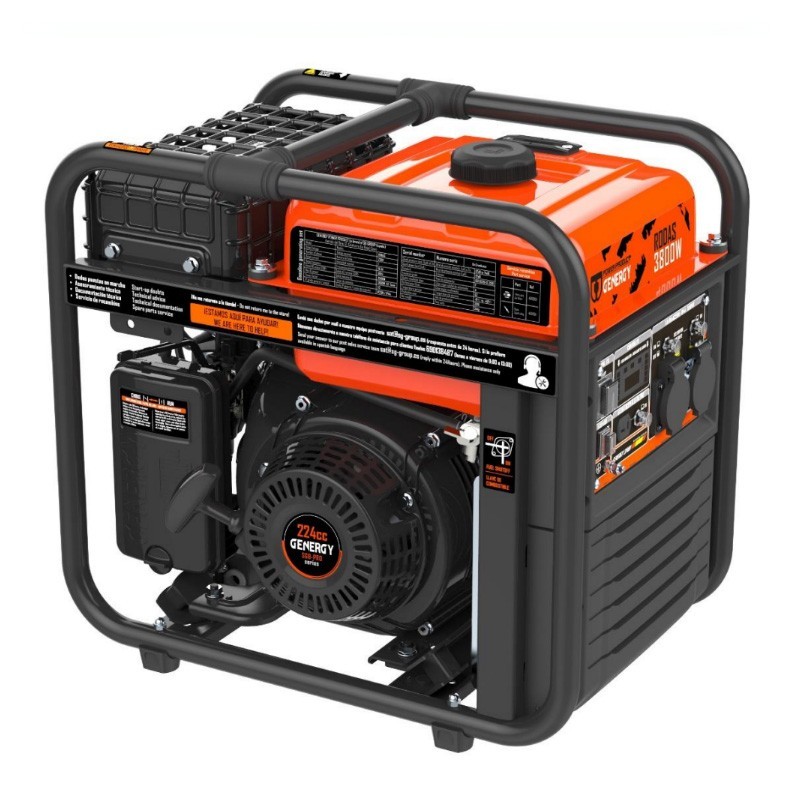

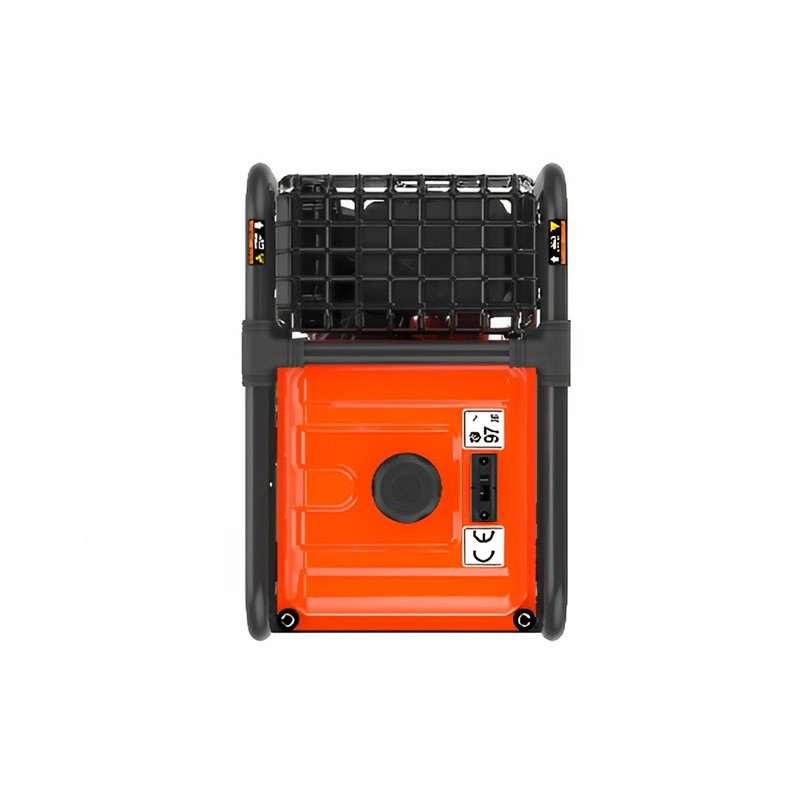

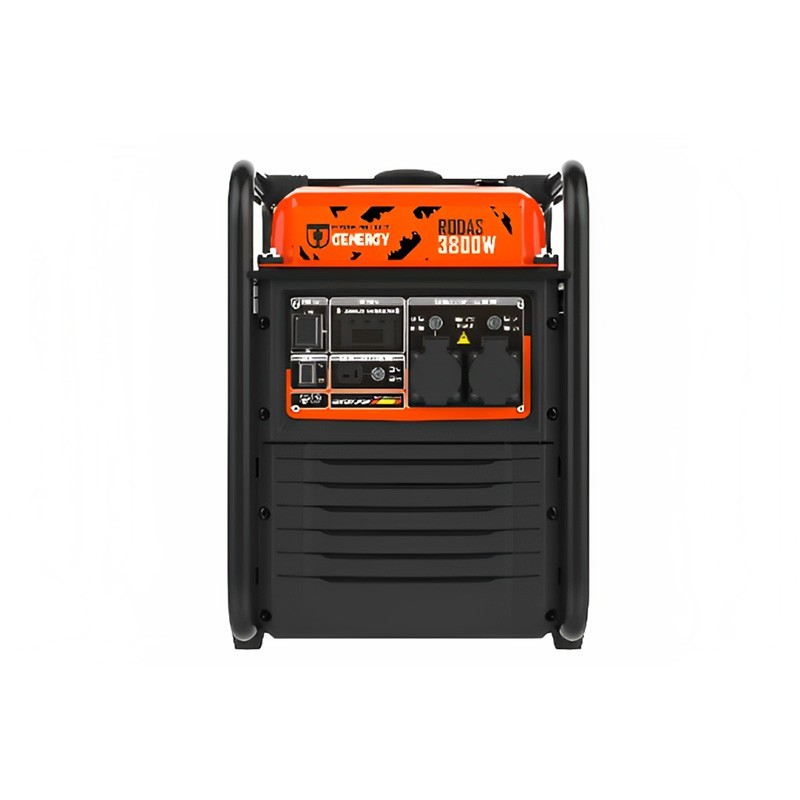

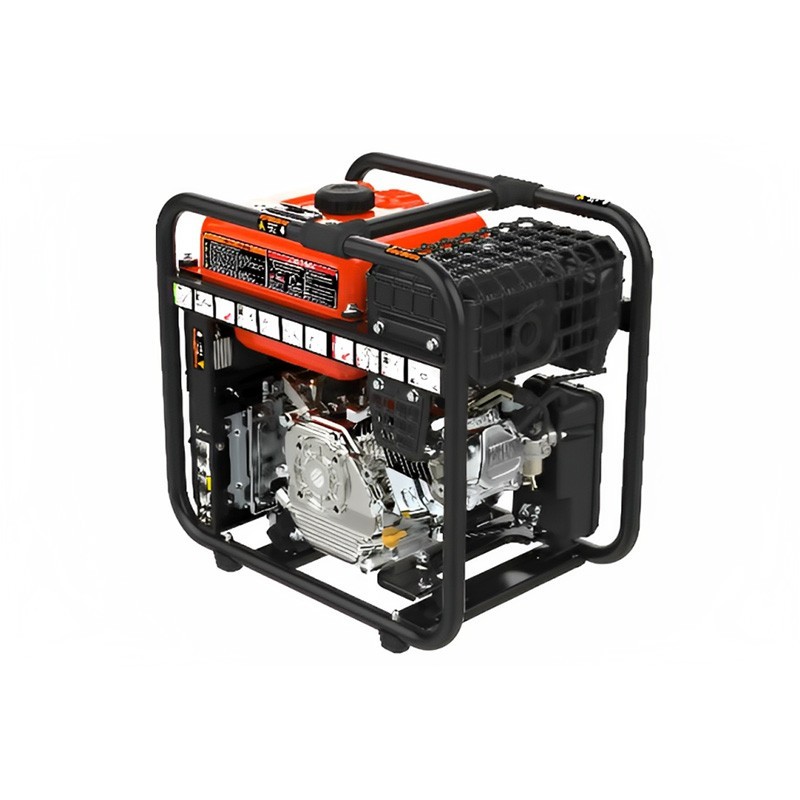

The Inverter Electric Generator Genergy Rodas 3800W has a nominal power of 3500 W and a maximum power of 3800 W. In addition, it works with a frequency of 50 Hz and a voltage of 230 V.
The machine includes a 4-stroke OHV gasoline air-cooled engine, which has both manual and electric start and works with a displacement of 224 cc.
The Inverter electric generator Genergy Rodas has a sound level at 7mts of 74 dBA. In addition, the fuel tank capacity is 10 L, and the oil tank capacity is 1.1 L.
| Stabilization system | Inverter |
| Voltage-Frequency | 230V - 50 Hz |
| AC 230 V Maximum | 3800 W |
| AC 230 V Nominal | 3500 W |
| Type by number of phases | Single-phase |
| Power factor | 1 |
| Motor model | SGB225PRO |
| Displacement | 224cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Rated idle) | 67 dB - 74 dB |
| Guaranteed sound power level LwA | 97 dB |
| Starting type | Electric and Manual |
| Fuel tank capacity | 10 L |
| Consumption at 25% - 50% - 75% load | 0.9L/H - 1.4L/H - 1.75L/H |
| Autonomy 25% - 50% - 75% load | 11.1H - 7.1H - 5.7H |
| Capacity and fuel grade | 0.6L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Standard | ISO 8528-13:2016 |
| Transport kit | No |
| Dimensions | 530x350x490 mm |
| Weight | 34 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
