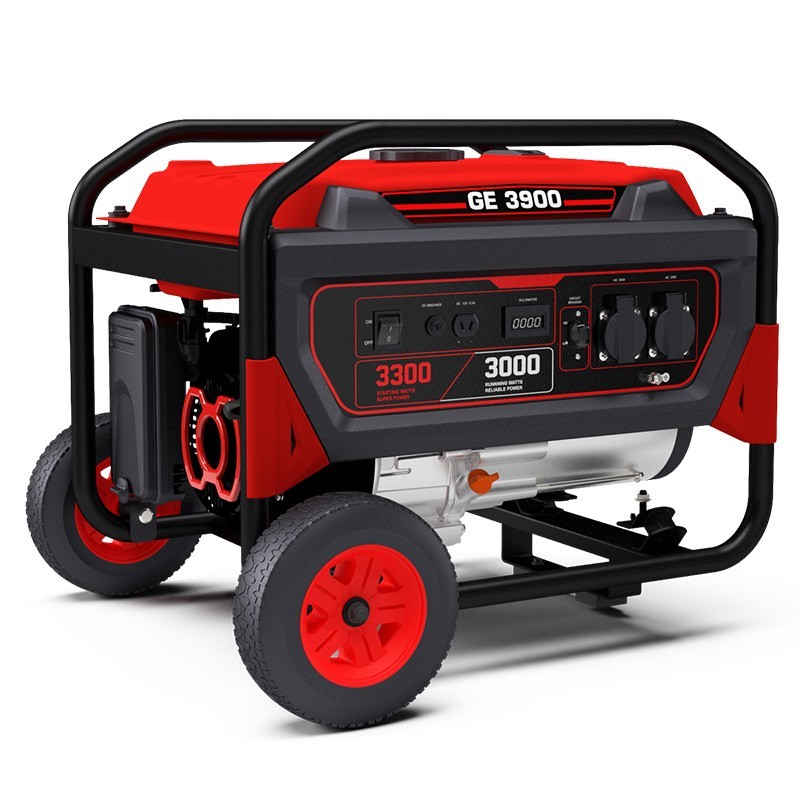

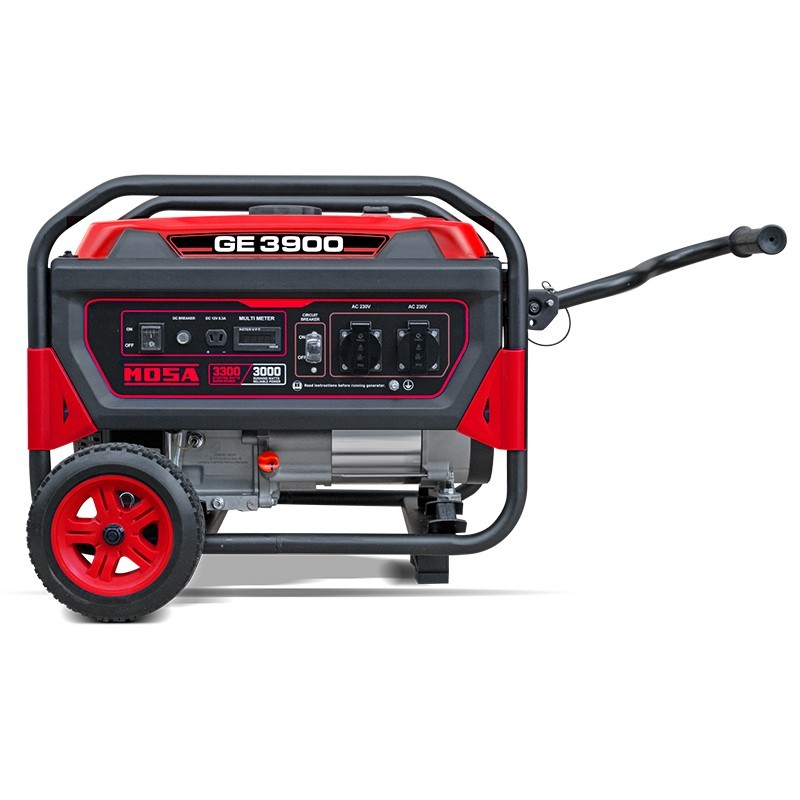

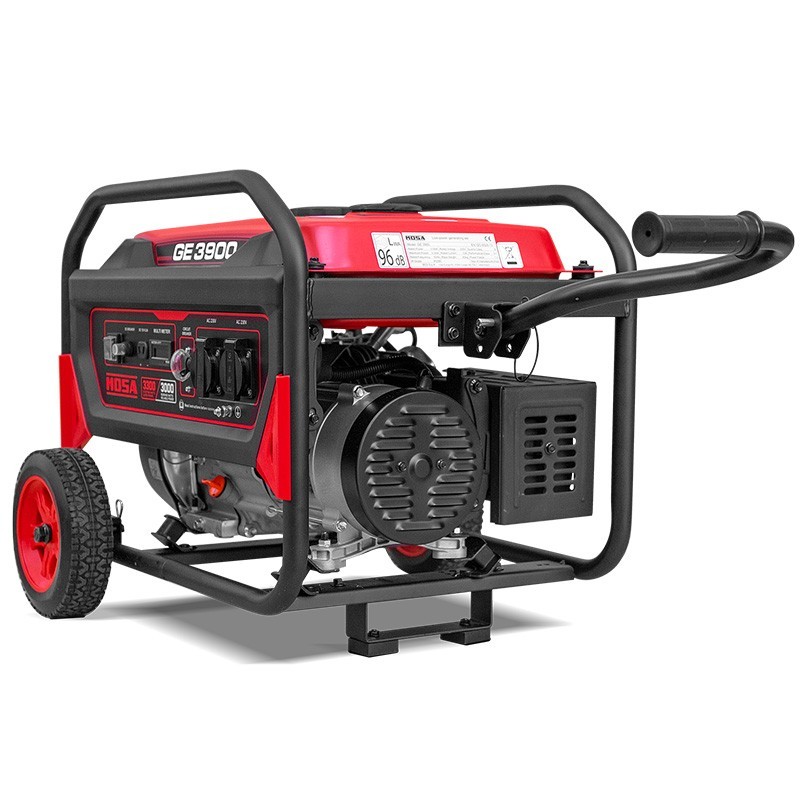

The MOSA GE 3900 Gasoline Electric Gener ator equipped with advanced safety features, such as automatic low oil shutdown and electronic voltage regulation "AVR", ensures safe operation and protects the engine from damage.

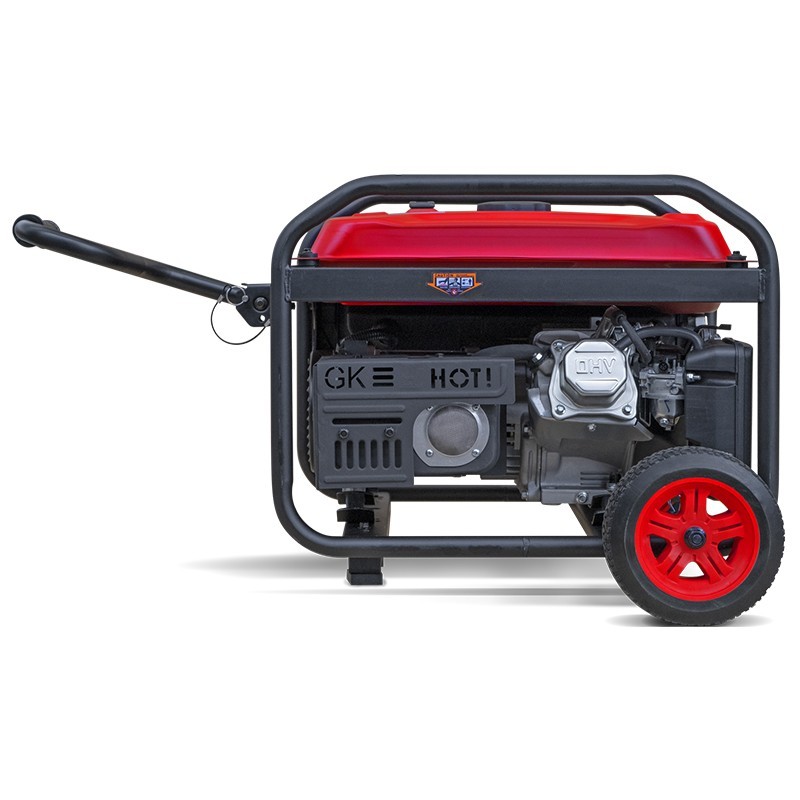

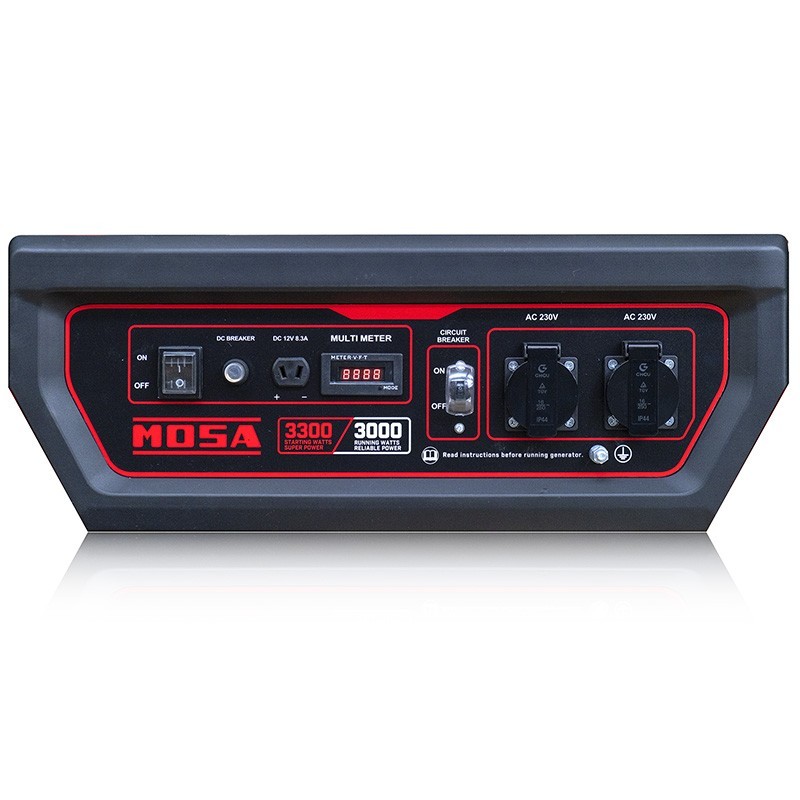

Its robust tubular chassis provides solid protection, while the manual trolley makes it easy to move around, making it a versatile choice for a variety of applications. With an intuitive control panel, this generator offers easy manual start via ON-OFF switch and choke.
The digital multifunction meter includes a tensiometer, frequency meter and hour meter for accurate monitoring. Complying with EC/EU regulations, this generator features 230V 16A Schuko output sockets, along with a 12 Vdc battery charger and thermal circuit breaker to ensure safe power distribution.
| Frequency | 50HZ |
| Maximum power | 3.3 kW |
| Nominal power | 3 kW |
| Model | GK 225 |
| Displacement | 223 cc |
| Starter | manual |
| Engine type | Gasoline 4 T |
| Diameter | 70 x 58 |
| Compression ratio | 8.7:1 |
| Battery charging | 12 V / 5 A |
| Voltage | 230V / 13A |
| Power sockets | 2x230V 16A 2P + T Schuko sockets |
| Tank capacity | 15 lt |
| Operating time (load @ 50%) | 9 h |
| Sound power LwA | 96 dB(A) (71 dB(A) @ 7m) |
| Dimensions | 615 x 470 x 480 mm |
| Dry weight | 45 kg |
 |
 |
 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
