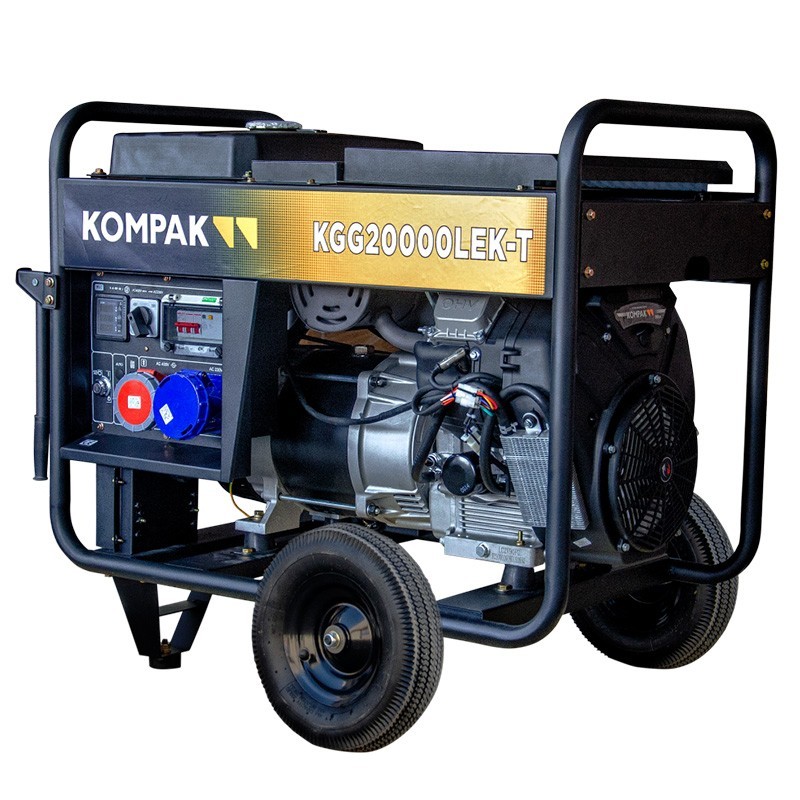

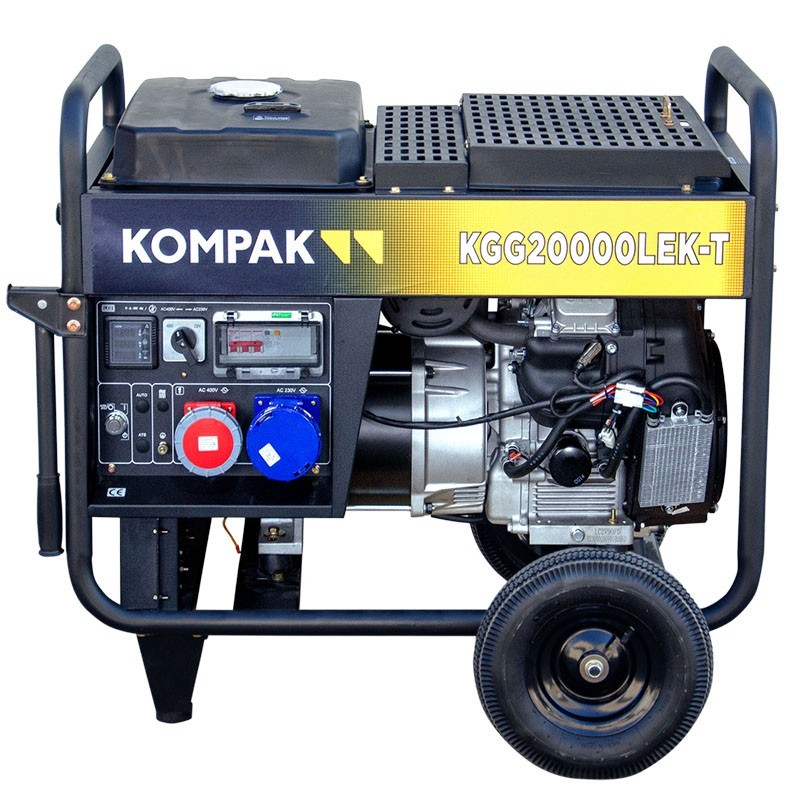

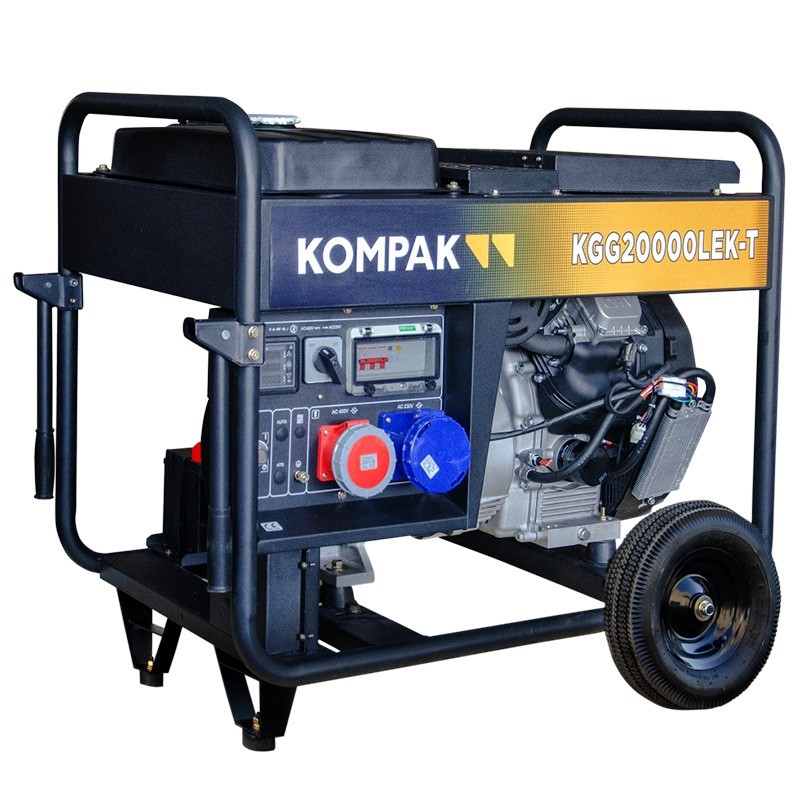

The electric generator Kompak KGG20000LEK-T stands out for its 2 V-cylinder engine, equipped with a low oil level alarm and automatic engine shutdown, ensuring safe and efficient operation. Its air-cooled OHV overhead valves and simple and quick manual start provide reliable performance.
The 32 mm steel chassis ensures a robust, low-maintenance and fuel-efficient structure, while the Full Power alternator guarantees 100% power supply in both three-phase and single-phase by means of a selector switch.
With a rated power of 13.5 kW (230V) and 18.75 kVA (400V), and a tank capacity of 22.5 liters, this generator offers an autonomy of 3.5 hours at 75% load, with a sound level of 80 dBA at 7 meters.
In addition, its 999 cc gasoline engine and electric start ensure efficient and reliable operation in a variety of applications. The heavy-duty Silentblock and included wheel kit add convenience and durability to this powerful generator.
| Power rating | 13.5 kW (230)/ 18.75 kVA (400) |
| Maximum power rating | 15 kW (230) / 20.6 kVA (400) |
| Frequency | 50 Hz |
| Current | 65.2 A (230) / 29.8 A (400) |
| Sockets | 63A (230) / 32A (400) |
| Tank capacity | 22,5 L |
| Autonomy at 75% load | 3,5 h |
| Noise level at 7m | 80 dBA |
| Engine | 2V90FD |
| Engine type | Gasoline |
| Starter | Electric |
| Displacement | 999 cc |
| Alternator | AL15-T |
| Alternator power | 15 kW |
| Voltage regulation | BRUSH / AVR |
| Weight | 205 Kg |
| Dimensions | 1100x640x790 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
