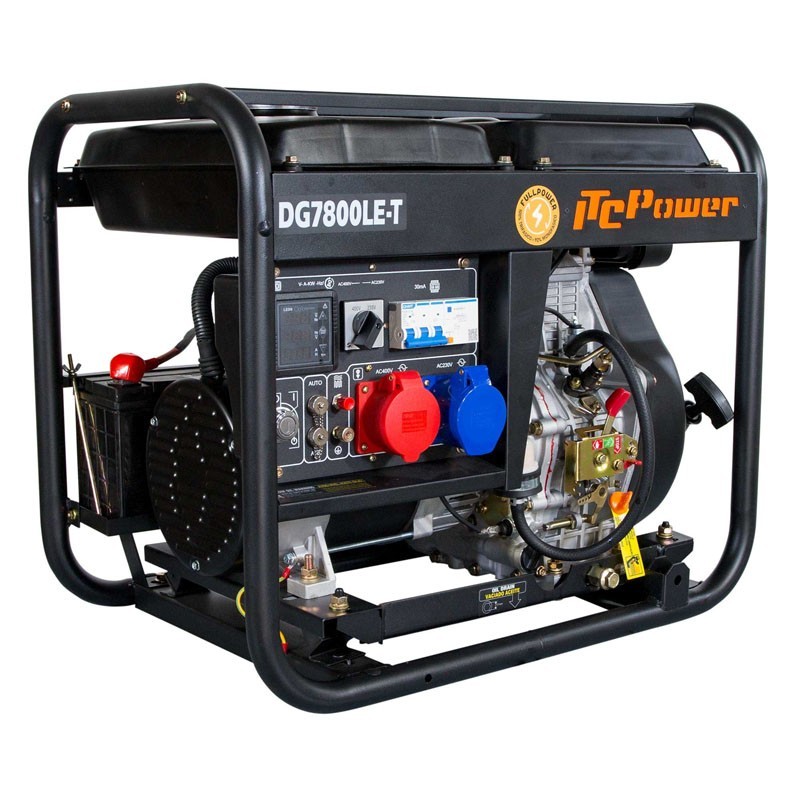

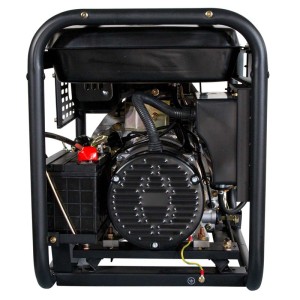

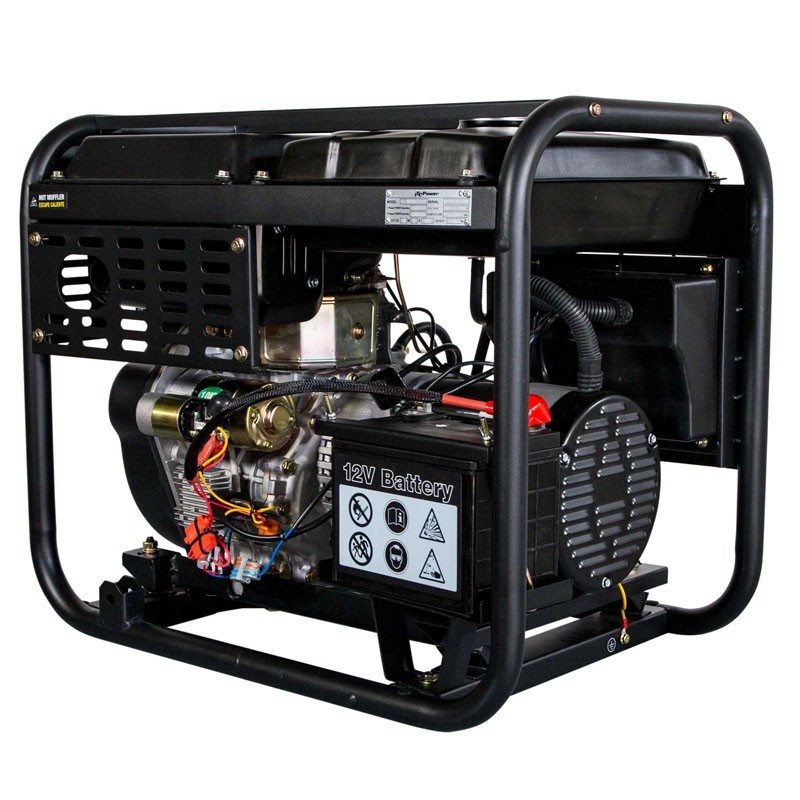

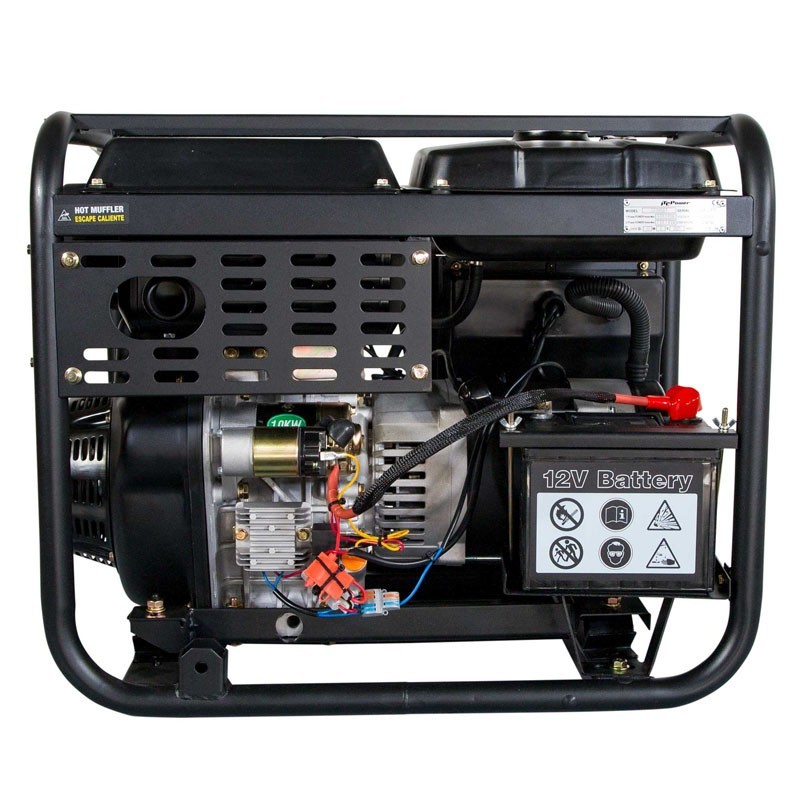

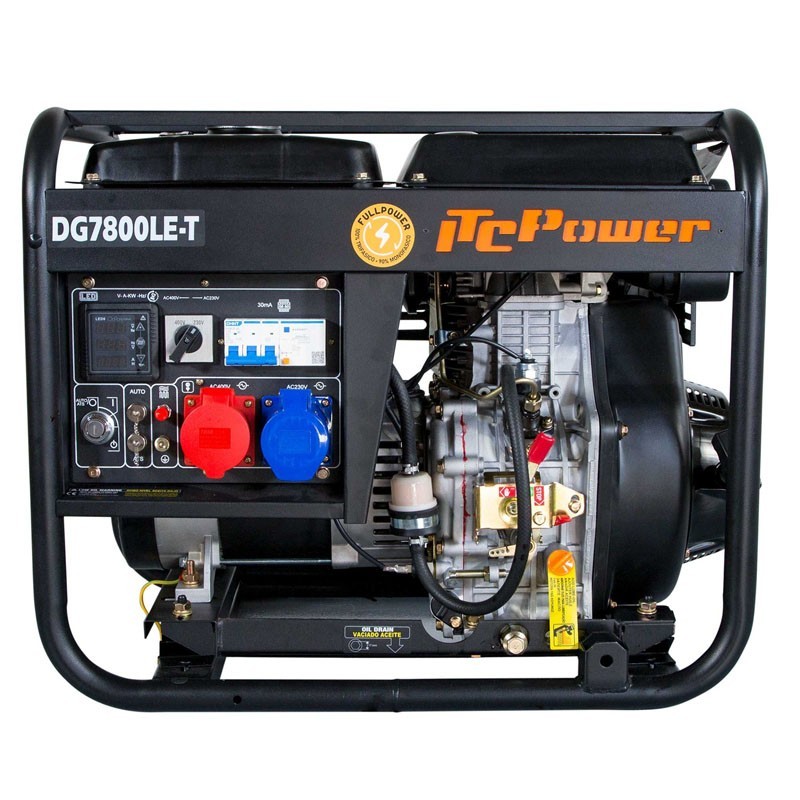

The ITCPower DG7800LET Diesel Electric Gener ator has the ITCPower D500E 498 DC engine, which provides a nominal power of 5600 W and allows it to reach a maximum power of 6000 W in its single-phase current. This generator features Full Power technology which achieves a rated power of up to 6320 W working in three-phase mode.
Sensitive electronic products will enjoy risk-free operation thanks to its AVR voltage regulation with brushes. The generator itself will also be protected thanks to its current measurement overload protection system.
The machine also has a capacity of 14 liters of fuel and with only 50% of the load, this generator will have an autonomy of 12 hours. Finally, it has an electric starter and PCESp (400 V) / 32A (230 V) sockets.
| Model; | DG7800LE-T |
| Voltage | Full Power 400 / 230 v |
| Maximum Power | 6300 W - 7,9 kVA (400 V) / 6000 W - 7,5 kVA (230 V) |
| Nominal Power | 6000 W - 7.5 kVA (400 V) / 5600 W - 7 kVA (230 V) |
| Frequency | 50 hz |
| Outputs | 1 x PCESp (400V) / 1x 32 (230V) |
| Display | LED6 |
| Battery | 12 V |
| DC output | 12 V / 8.3A |
| Fuel capacity | 14 L |
| Autonomy at 50& load | 12 h |
| Noise level at 7 meters | 77db |
| Engine model | D500E |
| Motor power rating | 13 hp |
| Engine speed | 3000 RPM |
| Starting mode | Electric |
| Displacement | 498 DC |
| Engine oil capacity | 1.65 liters |
| Alternator model | A6T |
| Alternator power rating | 7500 VA |
| Alternator power factor | 0,8 / 1 |
| Stabilizer | AVR / Brushes |
| Net Weight | 116 kg |
| Gross Weight | 120 kg |
| Product Dimensions | 72 x 48 x 50 cm |
| Packing dimensions | 74 x 50 x 64,5 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
