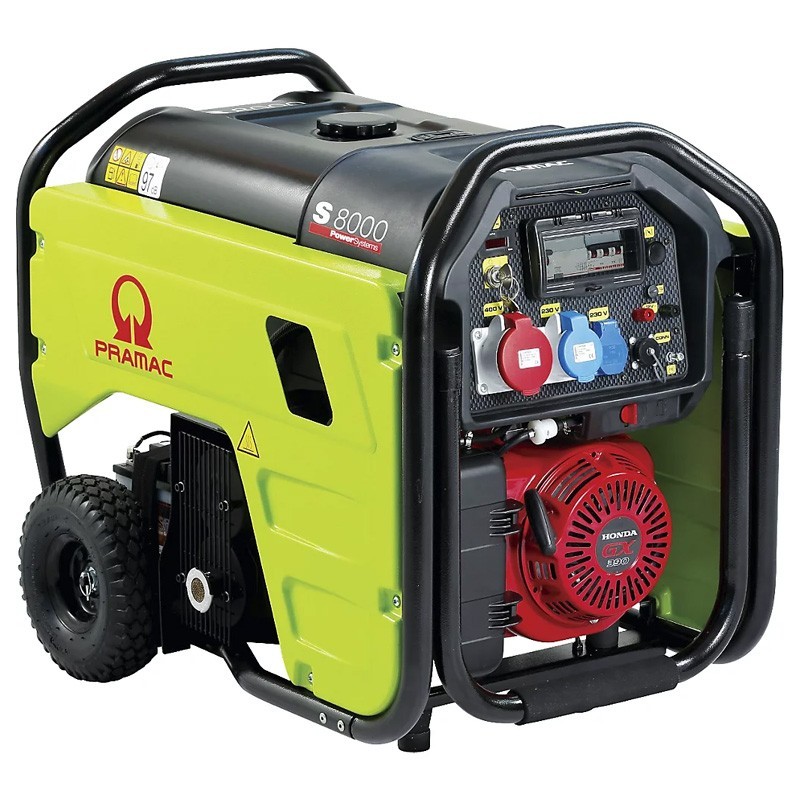

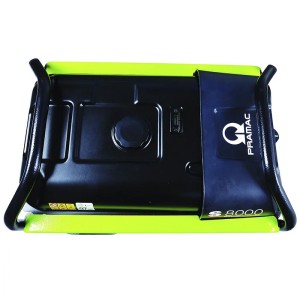

The Gasoline Electric Generator Pramac S8000 is a powerful source of energy that available in two models, providing flexibility to adapt to various needs. One of the models features AVR and Isometric Protection (IPP), while the other is equipped with Differential Protection (DPP). These features ensure a reliable and safe power supply.
This generator offers a series of essential protections, such as a circuit breaker, a protective cover for the start switch, low oil level protection and an emergency stop button. These safety measures ensure optimal operation and protection of the equipment at all times.
With a voltmeter, hour counter, and fuel level indicator, the user can accurately monitor the performance and condition of the generator. Its Ability to supply both three-phase and single-phase power., with a maximum power of 6600W and a nominal power of 5600W in the three-phase case, and 4000kVA and 3700kVA in the single-phase case, it makes it a versatile and reliable option for a wide range of electrical applications.
With a frequency of 50Hz and a Voltage of 400/230V, this generator is the perfect choice for those seeking a robust and efficient power source. Additionally, its power factor of 0.8 cos ϕ and its three phases ensure optimal performance in any load configuration.
| Model | Without AVR + DDP | With AVR + IPP |
| Frequency | 50 Hz | |
| Voltage | 400/230 V | |
| Power factor | 0.8 cos ϕ | |
| Phases | 3 | |
| Maximum three-phase power | 6600 W | |
| Three-phase nominal power | 5600 W | |
| Maximum single-phase power | 4000 kVA | |
| Single-phase nominal power | 3700 kVA | |
| Motor Brand | Honda | |
| Model | GX390 Recoil | |
| Cooling system | Air | |
| Aspiration | Natural | |
| Speed regulator | Mechanics | |
| Nominal operating speed | 3000 rpm | |
| Fuel | Gasoline | |
| Starting system | Manual | |
| Oil deposit | 1.1 l | |
| Displacement | 389 cc | |
| Alternator type | With brushes | |
| Class | H | |
| IP Protection | 23 | |
| Polos | 2 | |
| Voltage tolerance | 6% | 1.5% |
| Voltage regulation system | Compound | Electronic |
| Standard AVR regulation | AVR 860 | |
| Fuel consumption at 75% load | 2.15 l/h | |
| Autonomy at 75% charge | 2.87 h | |
| Fuel consumption at 100% load | 12.56 l/h | |
| 100% charge autonomy | 9:41 am | |
| Fuel tank capacity | 27 l | |
| Guaranteed sound level (LWA) | 97 dBA | |
| Noise pressure level @ 7 m | 69 dB(A) | |
| Dimensions | 840 x 615 x 753 | |
| Dry weight | 112 Kg | |
| Plugs | SCHUKO 230V 16A IP68 | |
| 3P+N+T CEE 400V 16A IP67 | ||
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before starting. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
| The batteries that are included with some machines are a complimentary gift, so they remain exempt from warranty. |
