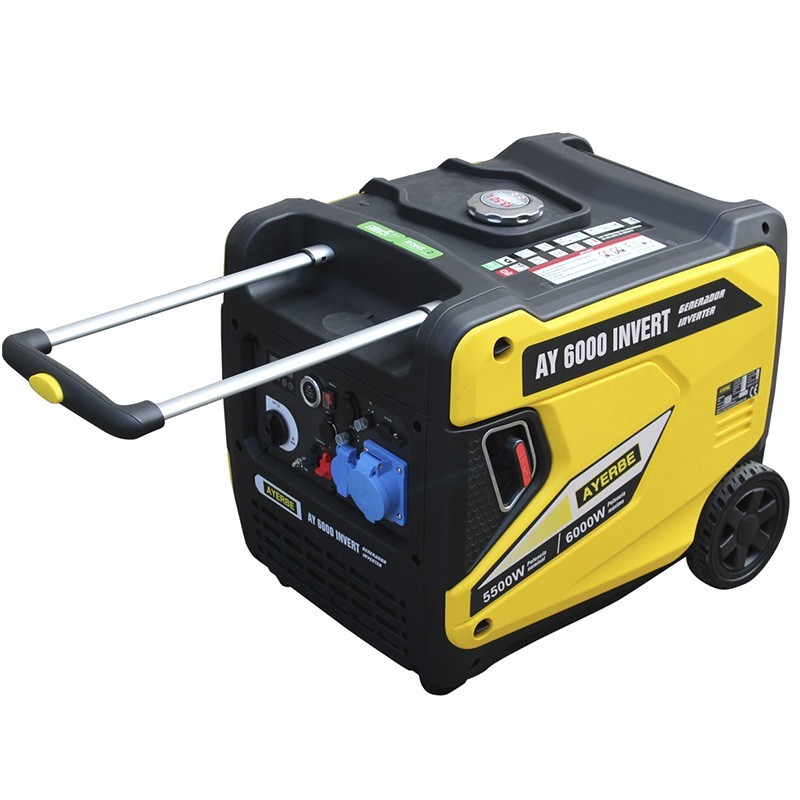

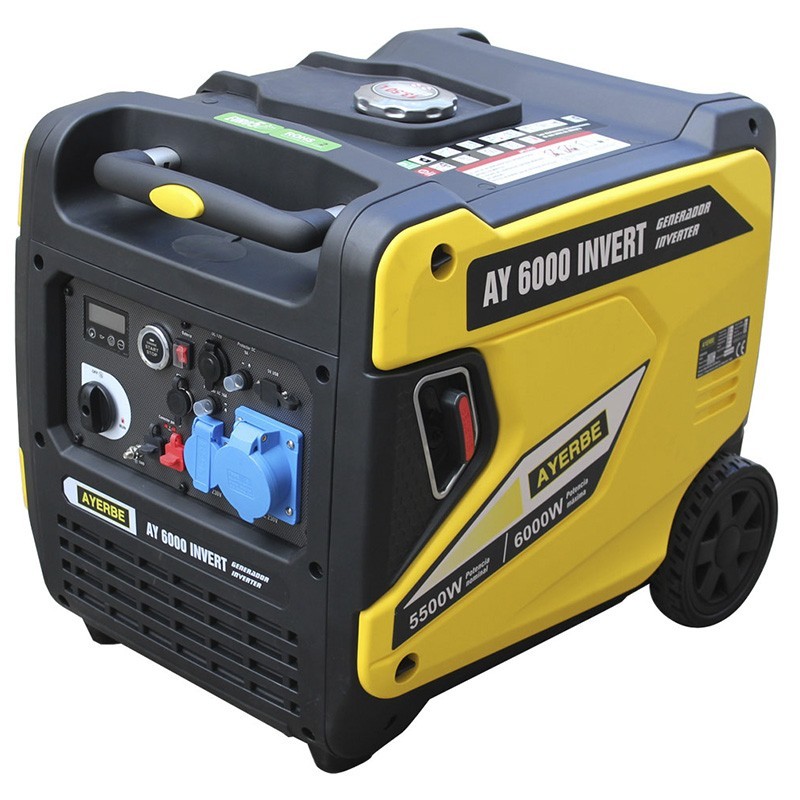

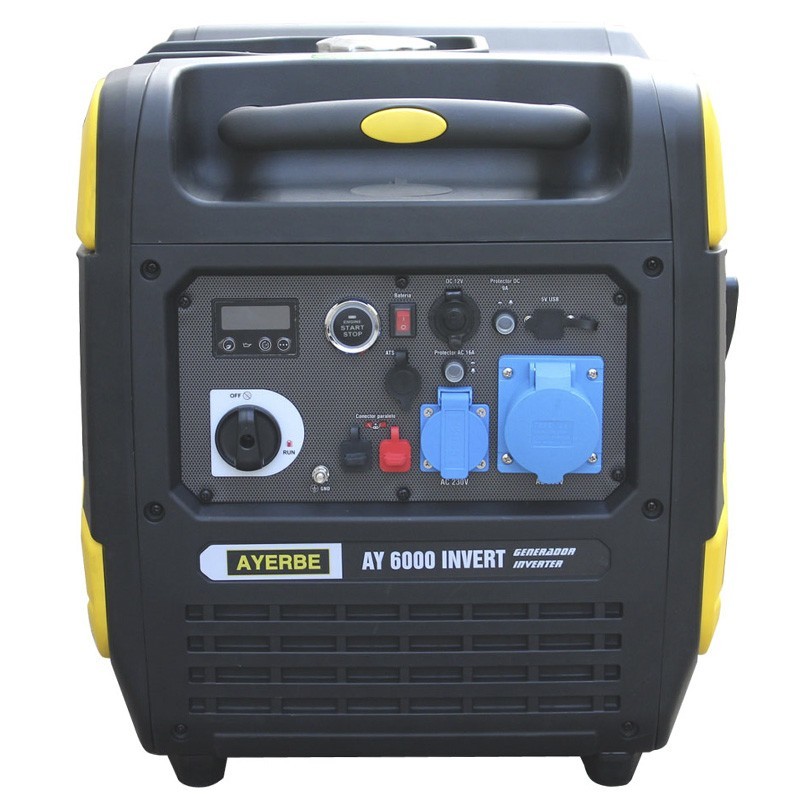

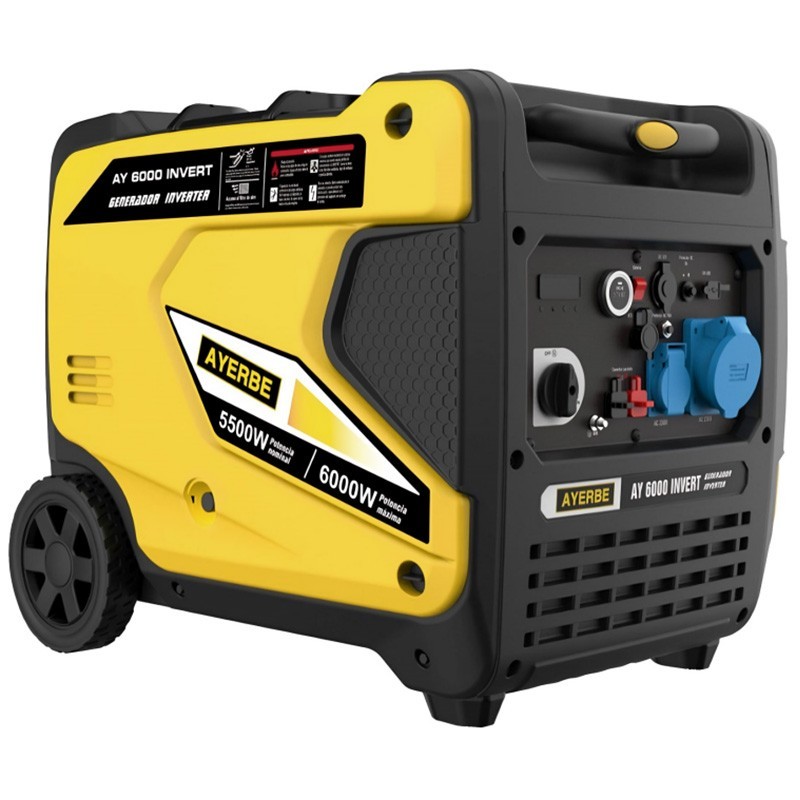

The Ayerbe 6000 Electric Generator is a powerful power source with a 7.5 HP, 174 cc KIOTSU KT-190 F engine, which operates with an air cooling system and uses SAE 20W40 CD, CF grade oil.
With a maximum power output of 6,000 W and rated at 5,500 W at 3,000 rpm, this generator provides stable output at a voltage of 230 V and frequency of 50 Hz, ensuring a reliable power supply.
In addition to its robust performance, the Ayerbe 6000 Inverter generator features a soundproof enclosure that reduces the sound level to 89 LwA / 64 LpA at a distance of 7 meters.
Equipped with electric start and a power factor of cos phi 0.8, this generator offers an efficient and quiet solution for various applications, ensuring a stable power supply with minimal noise impact.
Maximum power | 6.000 W |
Rated power | 5.500 W |
R.p.m. | 3.000 r.p.m. |
Voltage / Frequency | 230 V. / 50 Hz. |
Soundproof booth | Yes |
Starter | Electric |
Power factor | Cos phi 0.8 |
Noise level | 89 LwA / 64 LpA@7m |
Motor | |
Brand | KIOTSU |
Model | KT-190 F |
Power | 7.5 HP |
Displacement | 174 cc |
Cooling system | Air |
Engine oil type | SAE 20W40 / IPE grade CD, CF |
Aspiration | Natural |
R.P.M. of engine | 3.600 r.p.m. |
Speed governor | Mechanics |
Fuel | Gasoline |
Fuel consumption at 75% | 1.8 L/H |
Oil capacity | 0,80 L |
Starting system | Electric |
Alternator | |
Brand | AYERBE |
Model | 6000 |
Type | Inverter |
Type of insulation | Class H |
IP protection | IP 23 |
Excitation system | Inverter |
Voltage Tolerance | + - 1% |
Poles | 2 |
Voltage / Frequency | 230 / 50 Hz. |
Type of coating | Standard (without impregnation) |
Dimensions and Weight | |
Tank capacity | 13,5 l |
Autonomy at 75% | 7 hours |
Weight | 57 kg |
Dimensions | 638 x 502 x 545 mm |
Packing volume | 0,03 m³ |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
