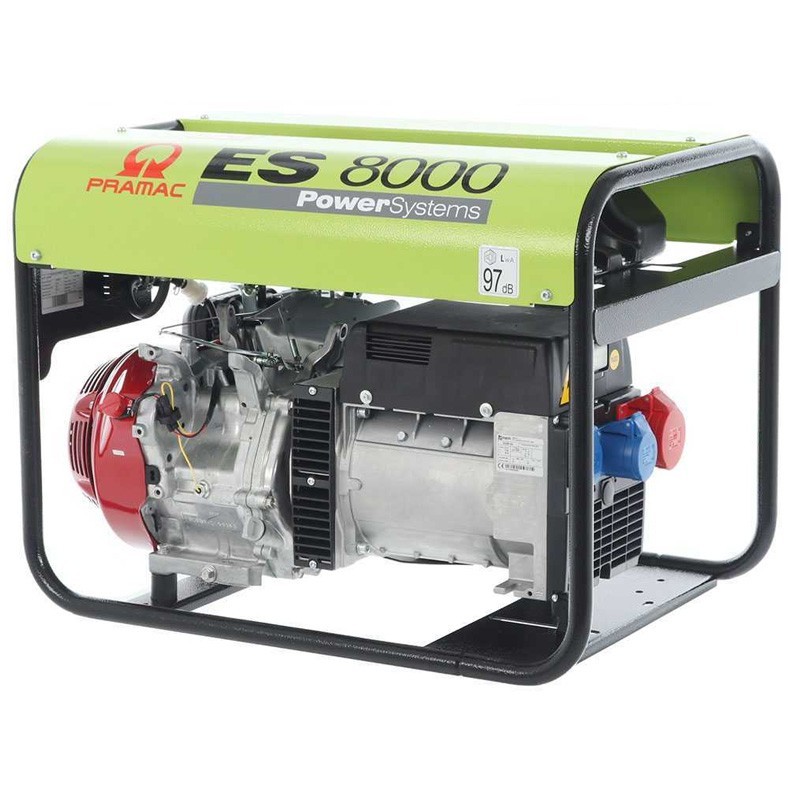

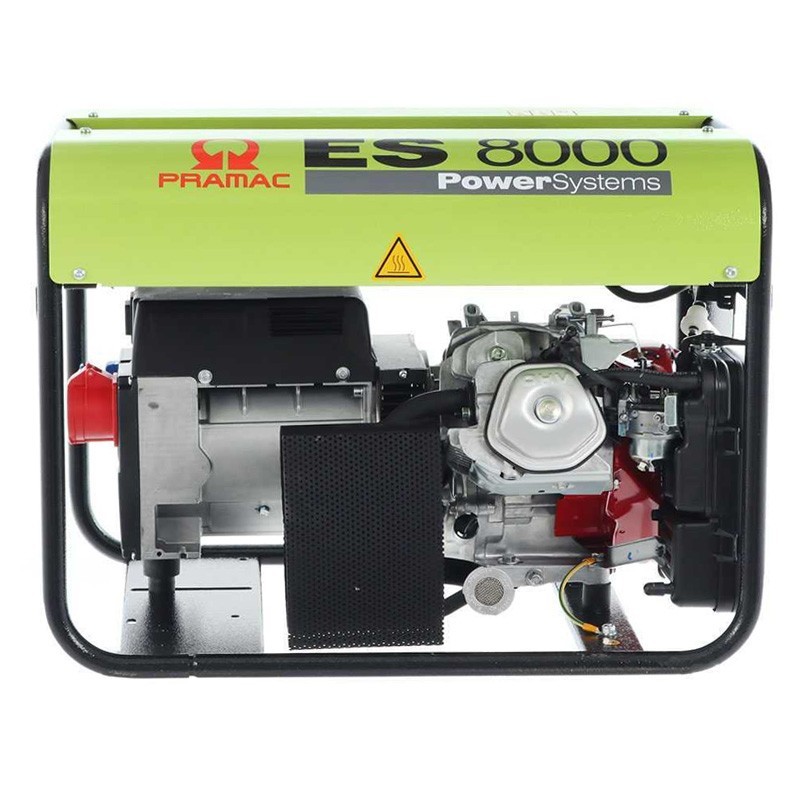

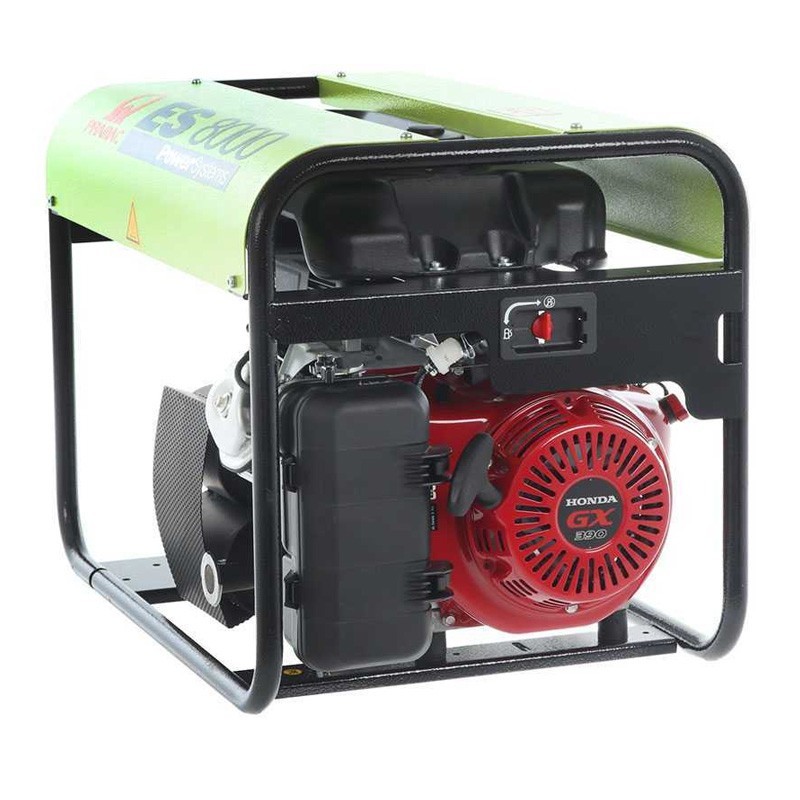

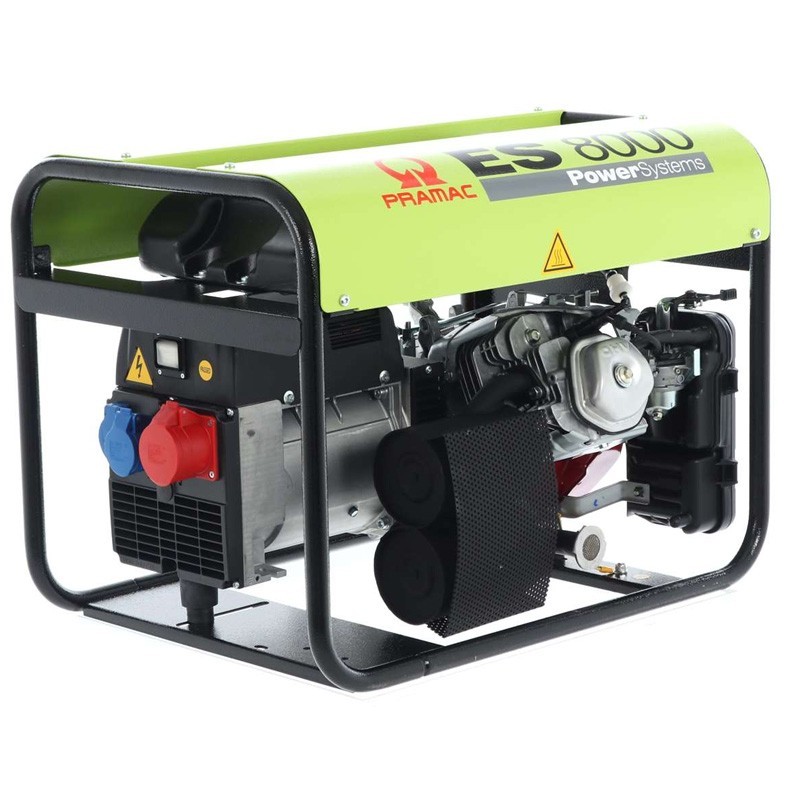

The Three-Phase Electric Generator Pramac ES8000 6600 W with 230V 16A IP54 Schuko, 230V 16A IP44 2P+T CEE and 400V 16A IP44 3P+N+T CEE plugs, this generator is designed to suit a wide range of applications. Its 50 Hz operating frequency and 400/230 V voltage ensure a stable and reliable power supply.
Equipped with three phases, the generator offers a maximum three-phase power rating of 6600 W and a three-phase power rating of 5600 W, making it an ideal choice for industrial and commercial applications. In addition, its single-phase operating capacity of up to 4000 kVA and single-phase rated power of 3700 kVA allow it to be used in a variety of scenarios.
The Pramac ES8000 generator also stands out for its protection features, including thermal protection and an oil level alarm, ensuring safe and efficient operation.
With an 11-liter fuel tank, an efficient fuel consumption of 2.15 l/h at 75% load and an autonomy of up to 5.12 hours at 75% load, this generator offers reliable and durable performance to keep your power supply running in emergency situations or long-term applications.
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Power factor | 0.8 cos ϕ |
| Phases | 3 |
| Maximum three-phase power | 6600 W |
| Nominal three-phase power | 5600 W |
| Maximum single-phase power | 4000 kVA |
| Single-phase rated power | 3700 kVA |
| Engine Brand | Honda |
| Model | GX390 Recoil |
| Cooling System | Air |
| Aspiration | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Manual |
| Oil tank | 1.1 l |
| Displacement | 389 cc |
| Alternator type | With brushes |
| Class | H |
| IP protection | 23 |
| Poles | 2 |
| Voltage tolerance | 6 % |
| Voltage regulation system | Compound |
| Guaranteed sound level (LWA) | 97 dBA |
| Noise pressure level @ 7 mt | 69 dB(A) |
| Fuel tank capacity | 11 l |
| Fuel consumption at 75% load | 2.15 l/h |
| Fuel consumption at 100% load | 2.86 l/h |
| Autonomy at 75% load | 5.12 h |
| Autonomy at 100% load | 3.85 h |
| Dimensions | 729 x 500 x 536 |
| Dry weight | 81 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
