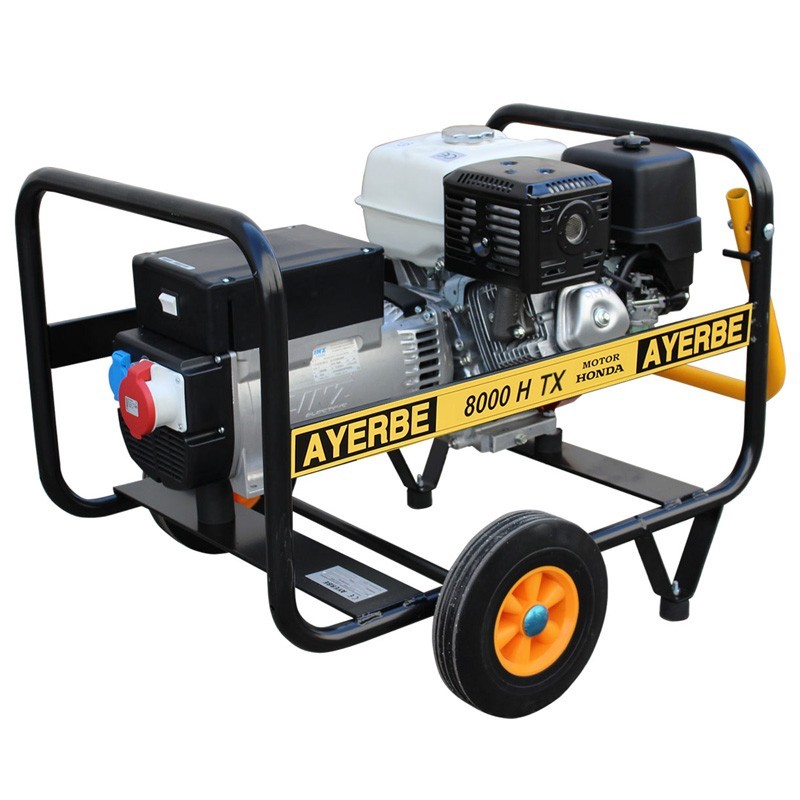

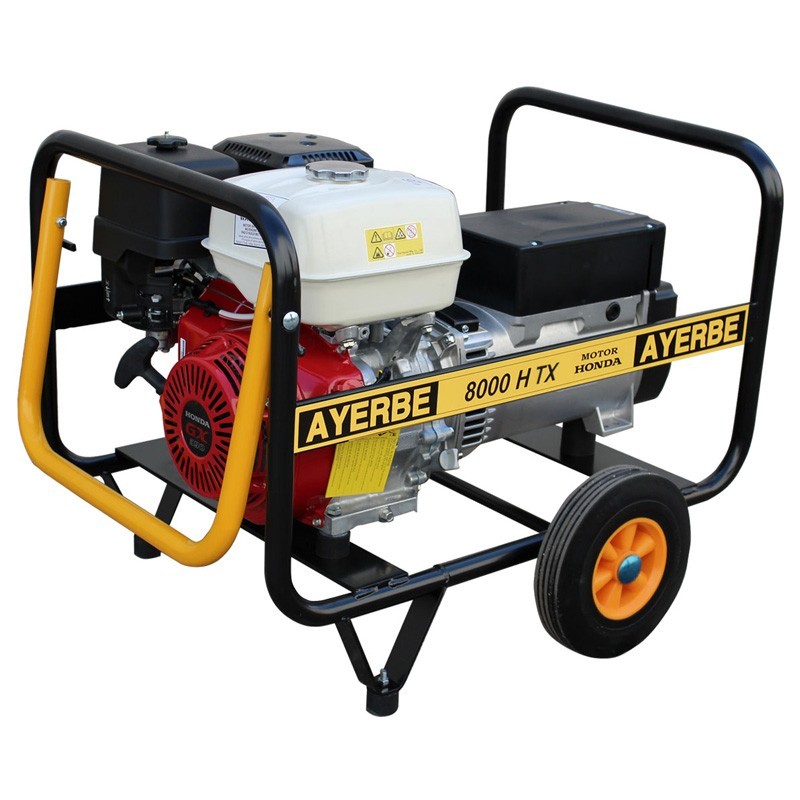

The three-phase electric generator Ayerbe AY 8000 H TX is a powerful power source with exceptional performance. It offers a maximum power output of 8 KVA at 400 V and 3.5 KVA at 230 V, providing a reliable power supply in a variety of situations.
With an engine that reaches 3,000 RPM, it ensures efficient and stable power generation. This generator features a manual start and a power factor of 0.8, making it suitable for a wide range of applications.
The brushless LINZ E1 S10 MHT brushless alternator with Class H insulation ensures safe and durable operation.
In addition, its Compound excitation system and ±5% voltage tolerance make it a reliable power source in any environment.
| Maximum power 400 V | 8 KVA - 6,400 W |
| Rated power 400 V | 7 KVA - 5,600 W |
| Maximum power 230 V | 3.5 KVA |
| Rated power 230 V | 3 KVA |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 400 - 230 V. / 50 Hz |
| Start | Manual |
| Power factor | Cos phi 0,8 |
| Noise level | 97 LwA / 74 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 390 |
| Power | 13 HP |
| Displacement | 390 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.1 L/H |
| Oil capacity | 1,1 L |
| Starting system | Manual |
| Alternator | |
| Brand | LINZ |
| Model | E1 S10 MH |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Compound |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 400 & 230 / 50 Hz |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 6 l |
| Autonomy at 75% | 3 hours |
| Weight | 90 kg |
| Dimensions | 950 x 746 x 625 mm |
| Packing volume | 0,44 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
