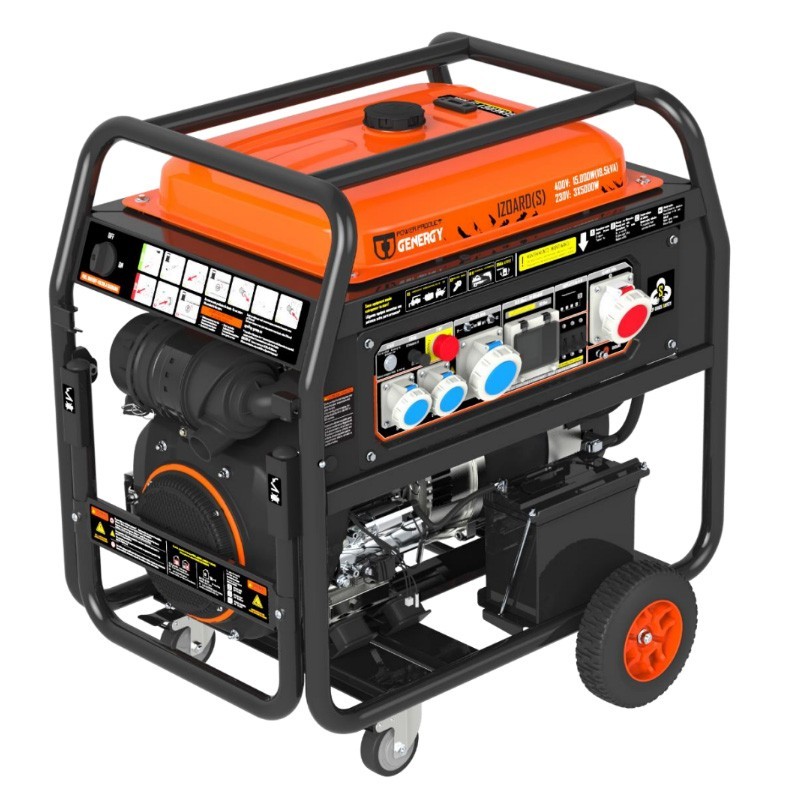

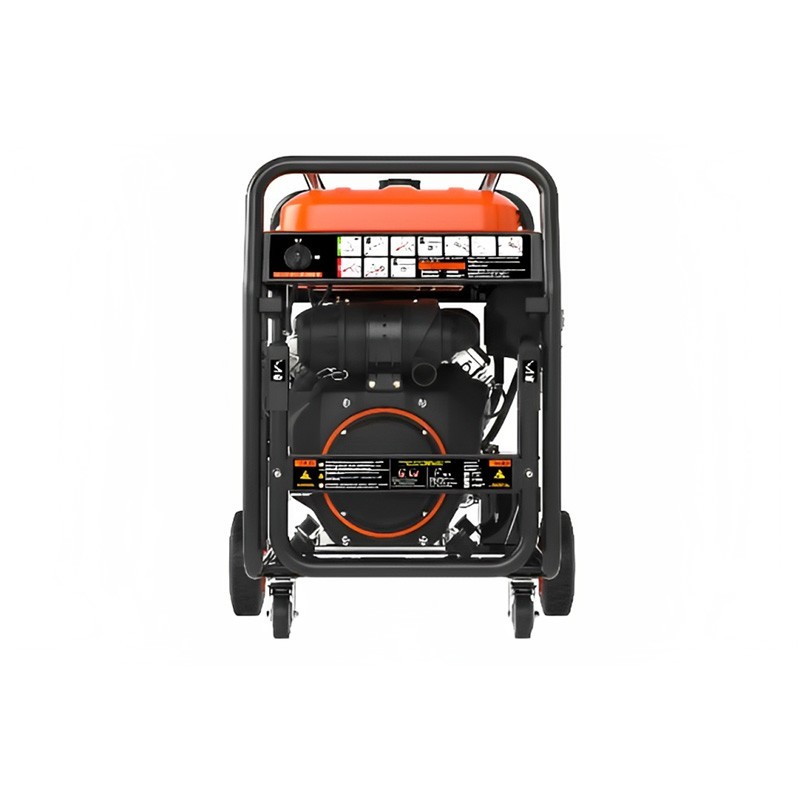

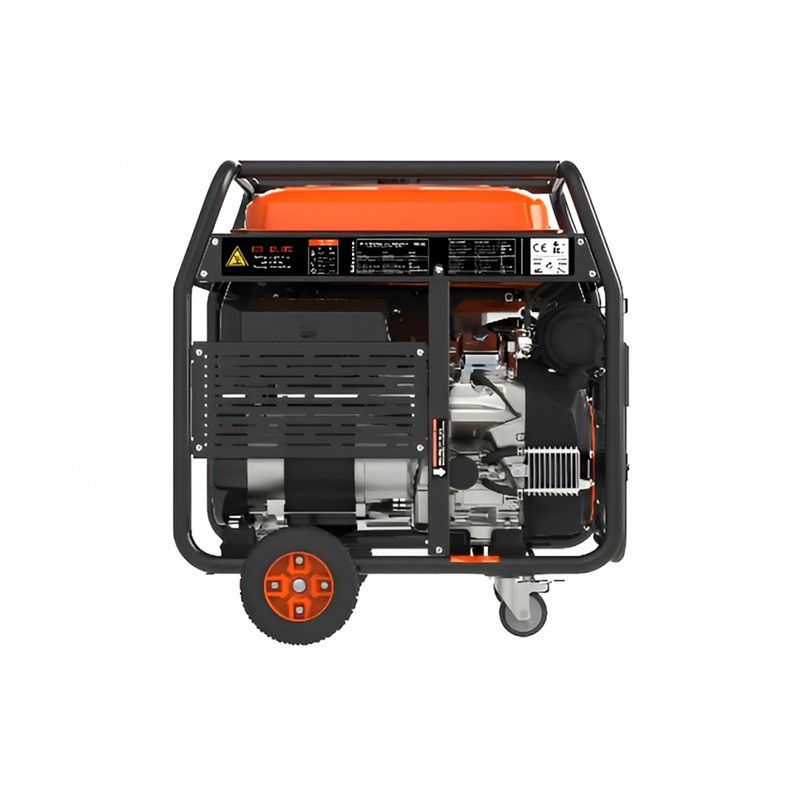

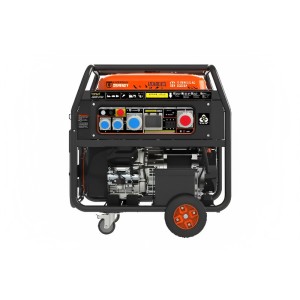

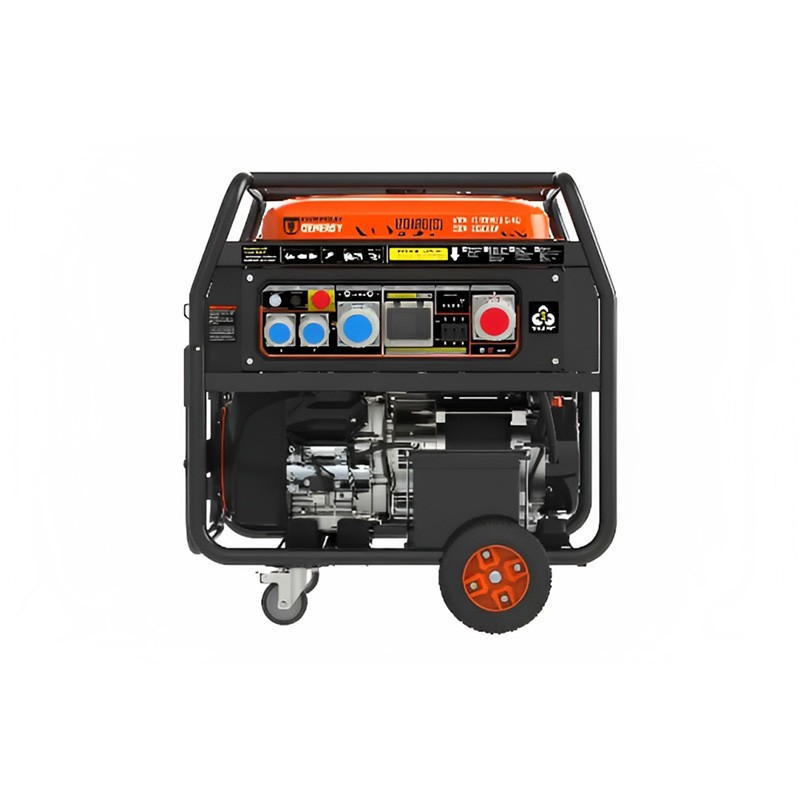

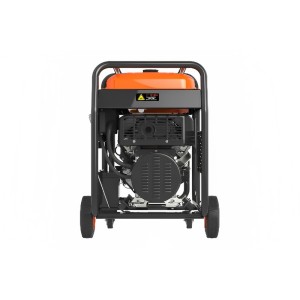

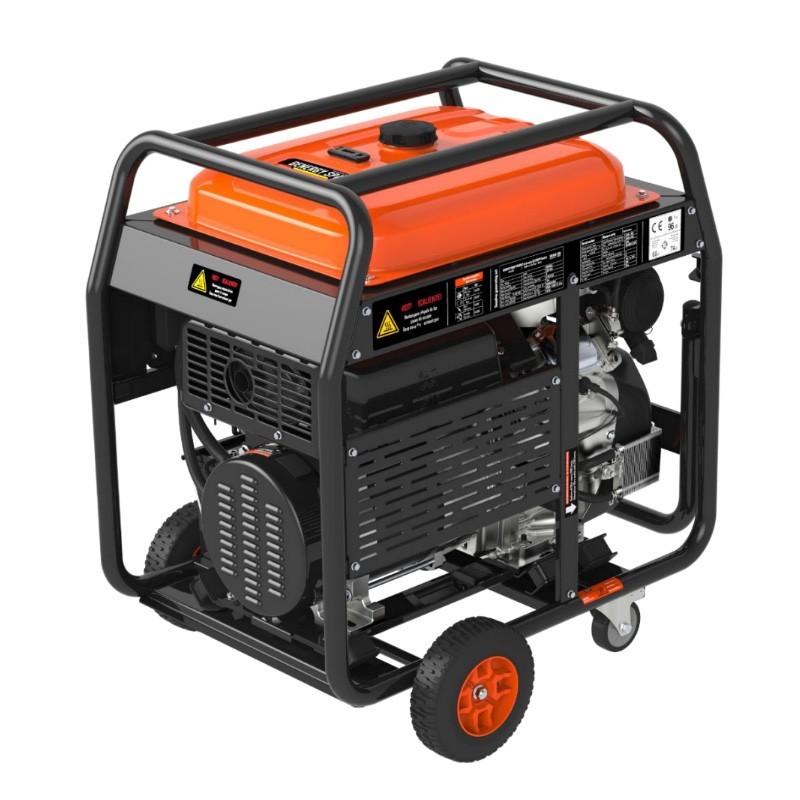

The Gasoline Electric Generator Genergy Izoard-S 15000W has a 4-stroke OHV air-cooled gasoline engine, an electronic stabilization system "SVR", and a displacement of 999 cc.
It has a voltage of 230V/400V, a frequency of 50 Hz, its current type is 3-phase, it has a rated power of 6500 W and a maximum power of 7000 W, and it is equipped with a copper coil.
The Gasoline Electric Generator Genergy Izoard-S 15000W has dimensions of 945x665x858 mm - 945x792x991 mm and a weight of 215 Kg.
| Stabilization system | SVR" electronics |
| Voltage - Frequency | 230V/400V - 50Hz |
| Maximum Power (230V) | 3X5000 W |
| Nominal Power (230V) | 3X4600 W |
| Maximum Power (400V) | 15000W (18.5Kva) |
| Nominal Power (400V) | 14000W (17.5Kva) |
| Type by number of phases | Three-phase |
| Power Factor | 1.0 / 0.8 |
| Motor Model | SGB1000 |
| Displacement | 999 cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 68 dB(A) - 74 dB(A) |
| Guaranteed sound power level LwA | 96 dB(A) |
| Start-up type | Electric |
| Fuel tank capacity | 50L |
| Consumption at 25-50-75% load | 3.5 L/H - 5.9 L/H - 7.4L/H |
| Autonomy 25-50-75% load | 14.25H -8.39H - 6.73H |
| Oil capacity and grade | 2.5L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Yes with two 10" and two 360o anti-puncture wheels. |
| Dimensions | 945x665x858 mm - 945x792x991 mm |
| Weight | 215 Kg |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
