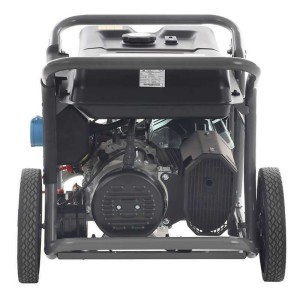

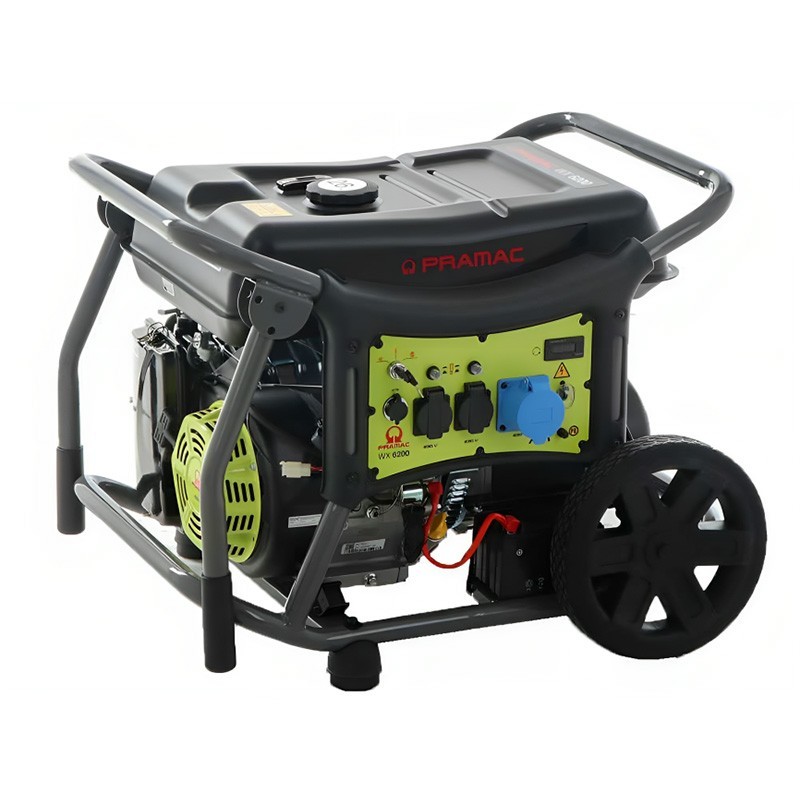

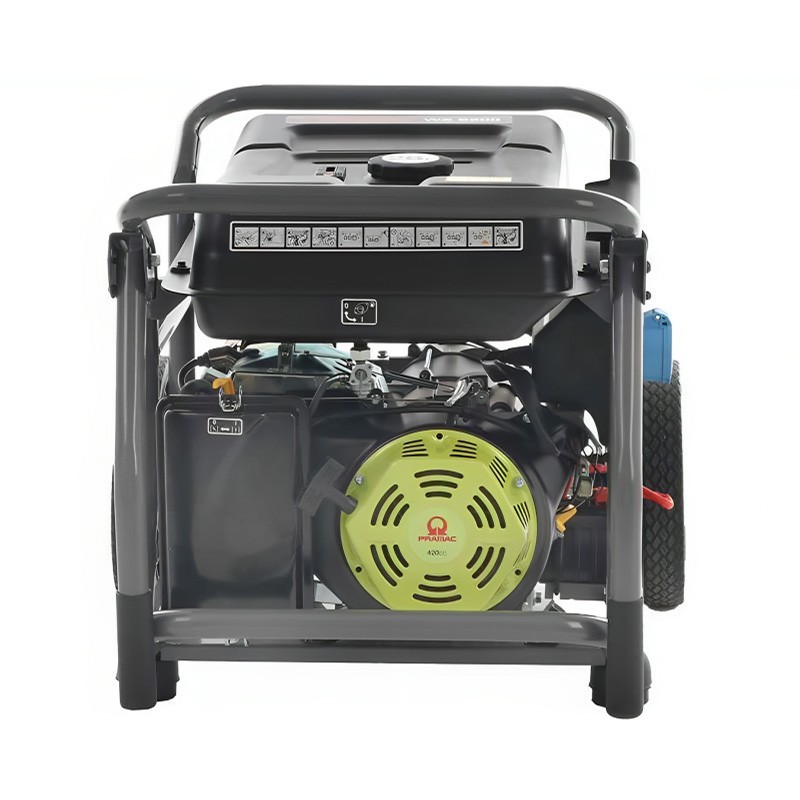

Gasoline Electric Generator Pramac WX 6200 ES CONN 5800 W
Gasoline Electric Generator Pramac WX 6200 ES CONN 5800 W
Gasoline Electric Generator Pramac WX 6200 ES CONN 5800 W

Pramac WX 6200 ES Single-phase Electric Generator


  • Starting : Electric and manual
  • Stabilization : AVR
  • Motor : Pramac
  • Current : Single phase
  • Rated power : 5300 W
  • Power Supply gasoline
  • Type of winding : Copper
  • Generator type : with handle and with wheels
En stock
Extras
Extras
Equipment:
● Control unit
contactor with interlock
● Switch: AUTO / MANUAL The manual option is used to decouple the system from the generator.
The generator can be started independently of the panel.
● Emergency button: For the generator.
● Charged battery
● 5 meters of control wiring (with connector)
Status indicators:
● Mains power light: Detects external mains.
● Generator light: Lights up when the ATS receives load from the generator.
● Charging light: The ATS receives charge, either from the mains or from the generator.
● Battery light: Keeps the starter battery charged, to be ready for start-up.
error light: Indicates anomalies. The generator does not start.
Precio total de la opción:
icon Power Supply
Power Supply
Gasoline
icon Stabilization
Stabilization
AVR
icon Current
Current
Single-phase
icon Startup
Startup
Manual and Electric
icon Displacement
Displacement
420 cc
icon Engine type
Engine type
4 strokes
icon Power rating
Power rating
5300 W
icon Maximum power
Maximum power
5800 W
icon Type of winding
Type of winding
Copper
icon Type of generator
Type of generator
With handle and wheels
icon ✔️
✔️
ATS connection - Automatic start
€699.44 excl. VAT
- 4%
€671.46 excl. VAT
€812.47 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Pramac WX 6200 ES Single-phase Electric Generator
€812.47
Extras
Extras
Equipment:
● Control unit
contactor with interlock
● Switch: AUTO / MANUAL The manual option is used to decouple the system from the generator.
The generator can be started independently of the panel.
● Emergency button: For the generator.
● Charged battery
● 5 meters of control wiring (with connector)
Status indicators:
● Mains power light: Detects external mains.
● Generator light: Lights up when the ATS receives load from the generator.
● Charging light: The ATS receives charge, either from the mains or from the generator.
● Battery light: Keeps the starter battery charged, to be ready for start-up.
error light: Indicates anomalies. The generator does not start.
Precio total de la opción:
Qty

Gasoline electric generator Pramac WX 6200 ES CONN 5800 W

The CONN Gasoline Electric Generator Pramac WX 6200 ES is a versatile and powerful power source with outstanding features. Its digital meter monitors engine run time and offers a fuel gauge for efficient monitoring.

Equipped with an AVR and OHV engine, it provides stable power for various applications and features low oil level protection.

Its control panel includes a starter switch, an external control connector (AMF) and a range of instrumentation, such as a voltmeter, frequency meter and hour meter. It also has thermomagnetic and low oil level protections.

The advantage of built-in wheels makes it easy to transport. In addition, the CONN connector for AMF adds flexibility to power management in critical situations.

Technical Data

Frequency 50 Hz
Voltage 230 V
Phases 1
Maximum Power 5800 W
Nominal power 5300 W
Brand Pramac
Type OHV
Exhaust emission optimized for 97/68 50Hz (COM) Stage V
Rated operating speed 3000 rpm
Fuel Gasoline
Starting system Electric (+Manual)
Oil tank 1.1 l
Displacement 420 cc
Voltage regulation AVR
Guaranteed sound level (LWA) 97 dBA
Fuel tank capacity 26 l
Fuel consumption @ 50% 2.17 l/h
Autonomy @ 50% 12 h
Dimension 800 x 698 x 620
Dry weight 49 Kg

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
The batteries included in some machines are a free gift, so they are exempt from warranty.

259039

Data sheet

Power Supply
Gasoline
Stabilization
AVR
Current
Single-phase
Startup
Manual and Electric
Displacement
420 cc
Engine type
4 strokes
Power rating
5300 W
Maximum power
5800 W
Type of winding
Copper
Displacement (cc)
400 cc - 499 cc
Nominal power (W)
5000 W - 5999 W
Maximum power (W)
5000 W - 5999 W
Type of generator
With handle and wheels
✔️
ATS connection - Automatic start
