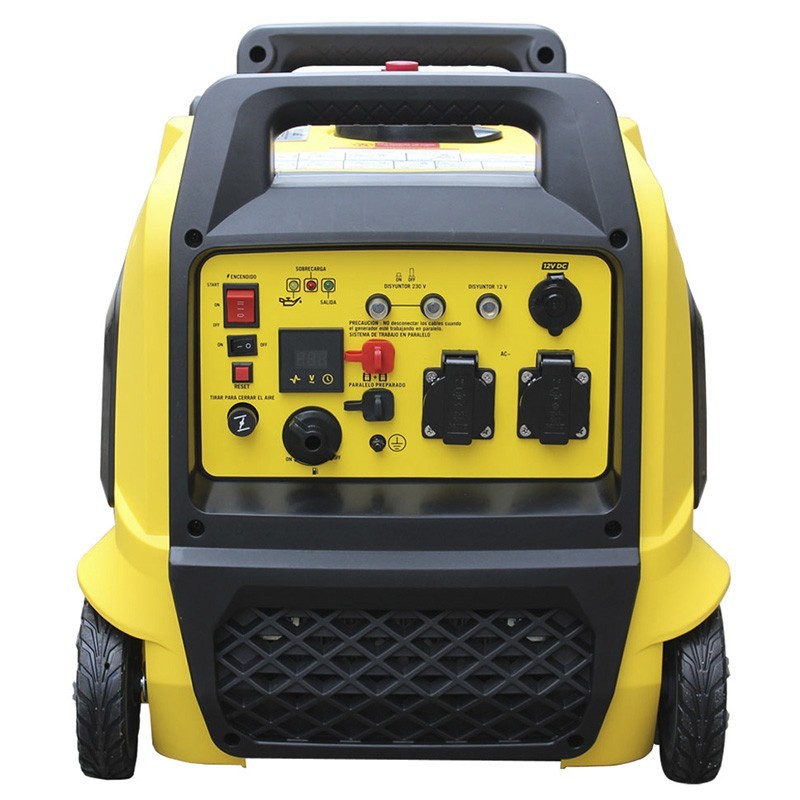

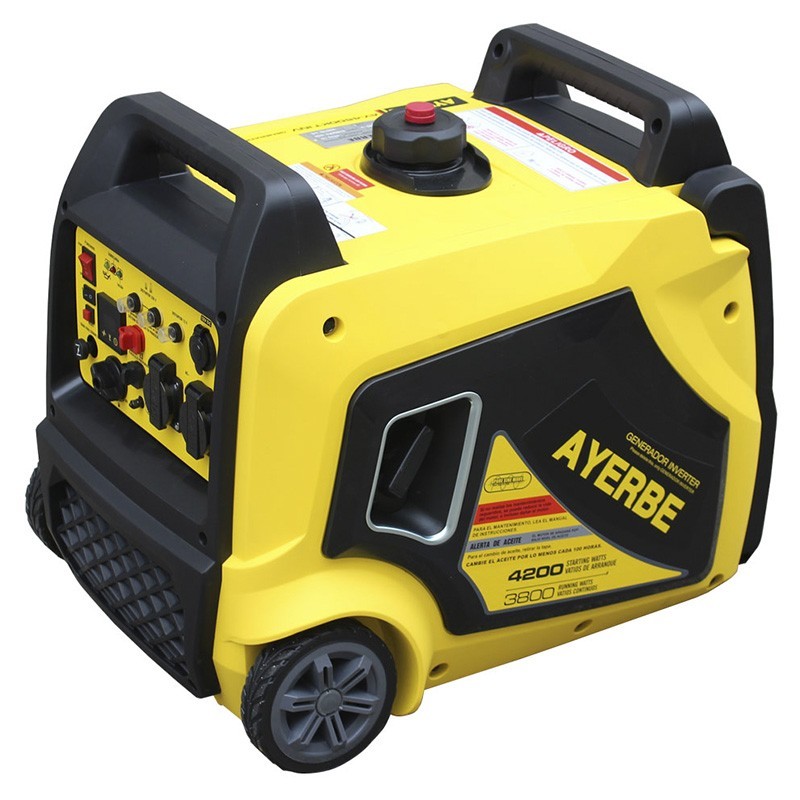

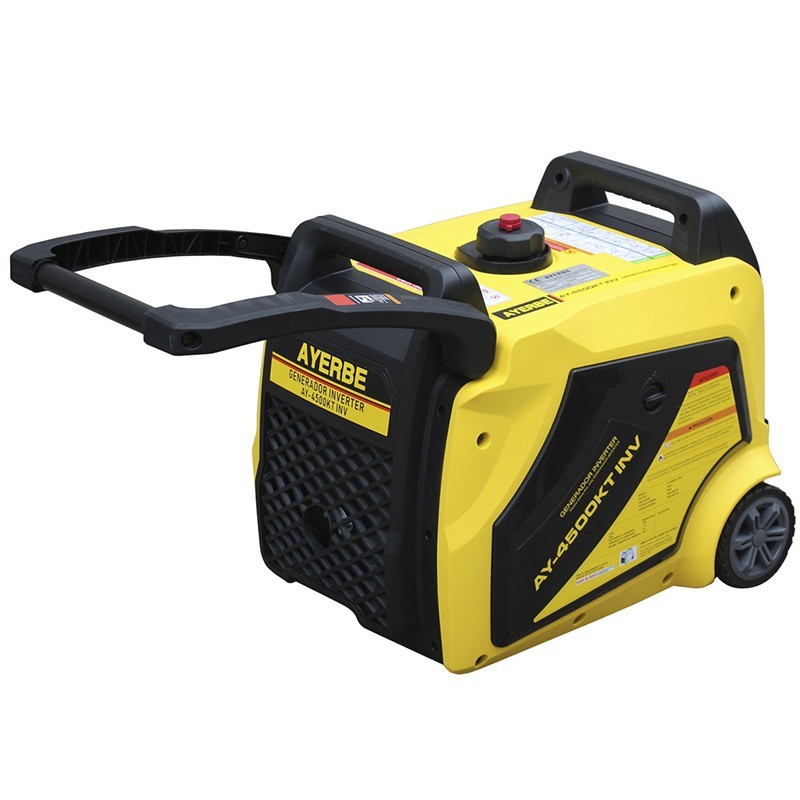

The Gasoline Electric Generator Ayerbe 4500 KT Inverter equipped with a high quality AYERBE brand alternator and model 4500, this generator uses an Inverter system that guarantees a stable power output. Its Class H insulation and IP23 protection ensure reliable performance in various conditions.
With a voltage tolerance of +/- 1%, this two-pole generator offers a consistent 230V output at a frequency of 50Hz. In addition, its standard, non-impregnated clad design and fuel level indicator provide durability and ease of use.
The addition of an oil level alarm adds an extra layer of safety, making the Ayerbe 4500 KT Inverter a reliable choice for meeting power needs in a variety of applications.
| Maximum power | 4.000 W |
| Rated power | 3.800 W |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 230 V. / 50 Hz. |
| Soundproof booth | Yes |
| Starter | Electric |
| Power factor | Cos phi 0.8 |
| Noise level | 90 LwA / 65 LpA@7m |
| Motor | |
| Brand | KIOTSU |
| Model | KT-224 E |
| Power | 6.5 HP |
| Displacement | 220 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 1.5 L/H |
| Oil capacity | 0,60 L |
| Starting system | Electric |
| Alternator | |
| Brand | AYERBE |
| Model | 4500 |
| Type | Inverter |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Inverter |
| Voltage Tolerance | + - 1% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 12 l |
| Autonomy at 75% | 7 hours |
| Weight | 44 kg |
| Dimensions | 640 x 480 x 525 mm |
| Packing volume | 0,16 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
