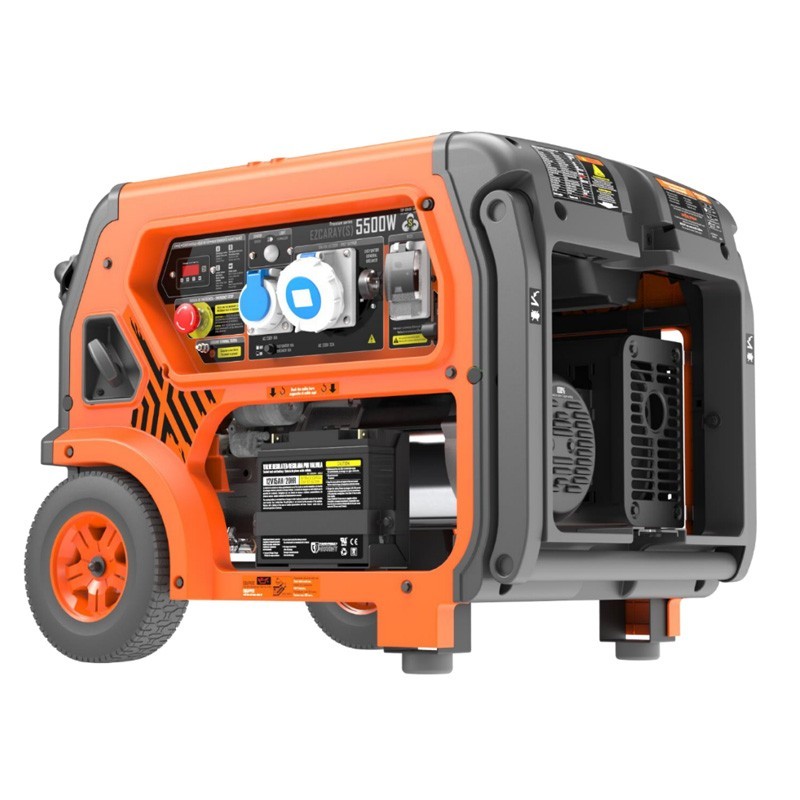

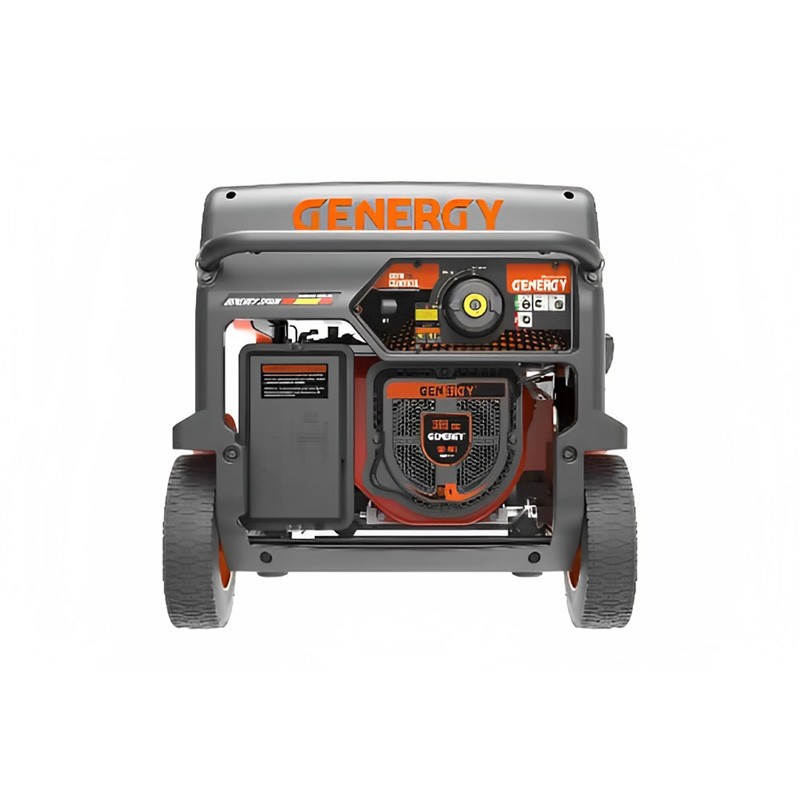

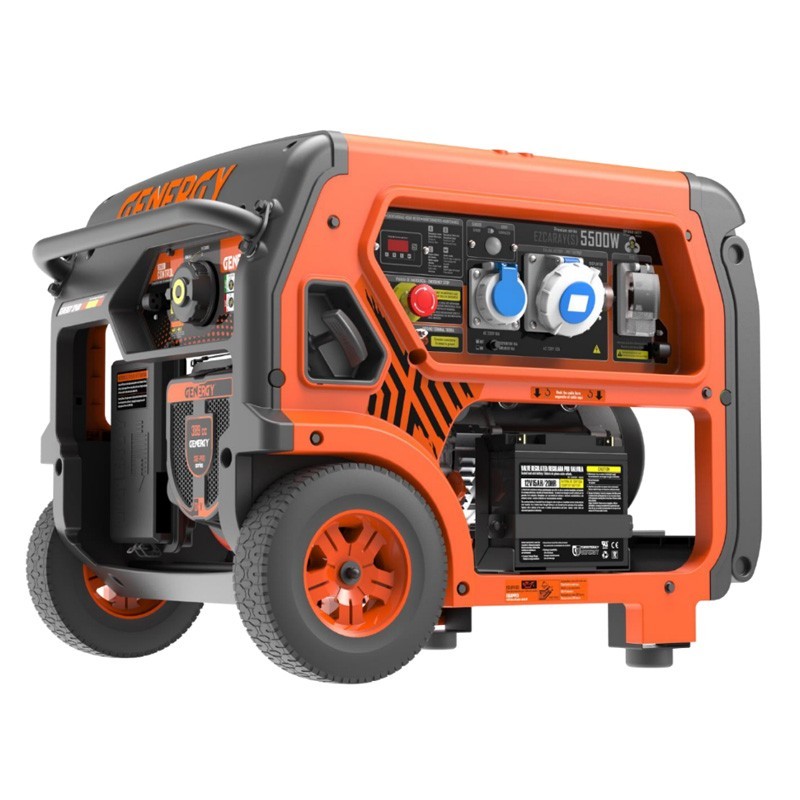

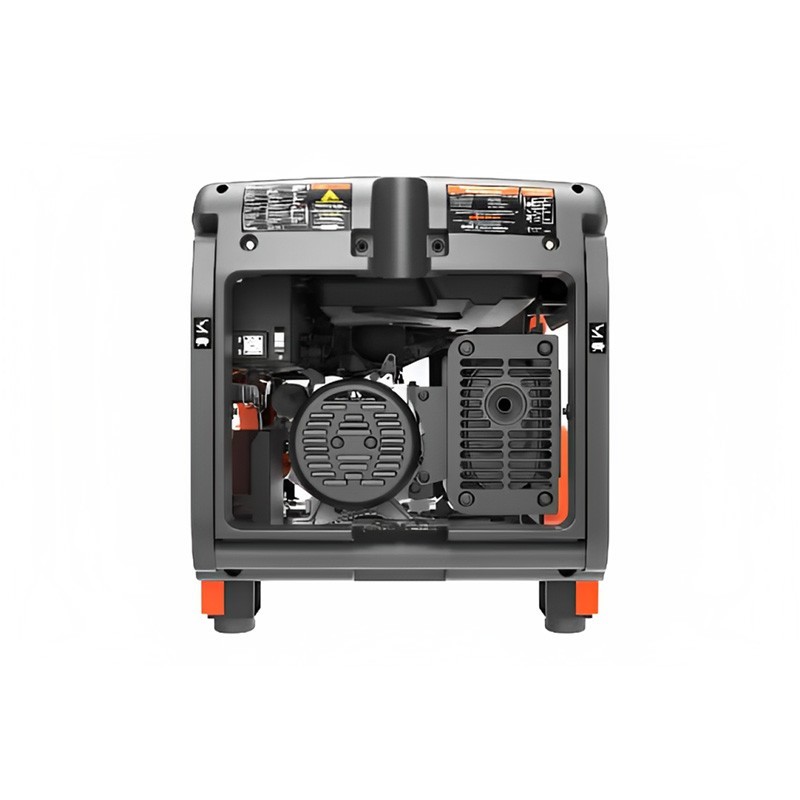

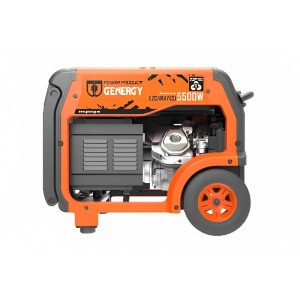

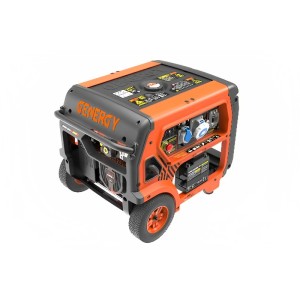

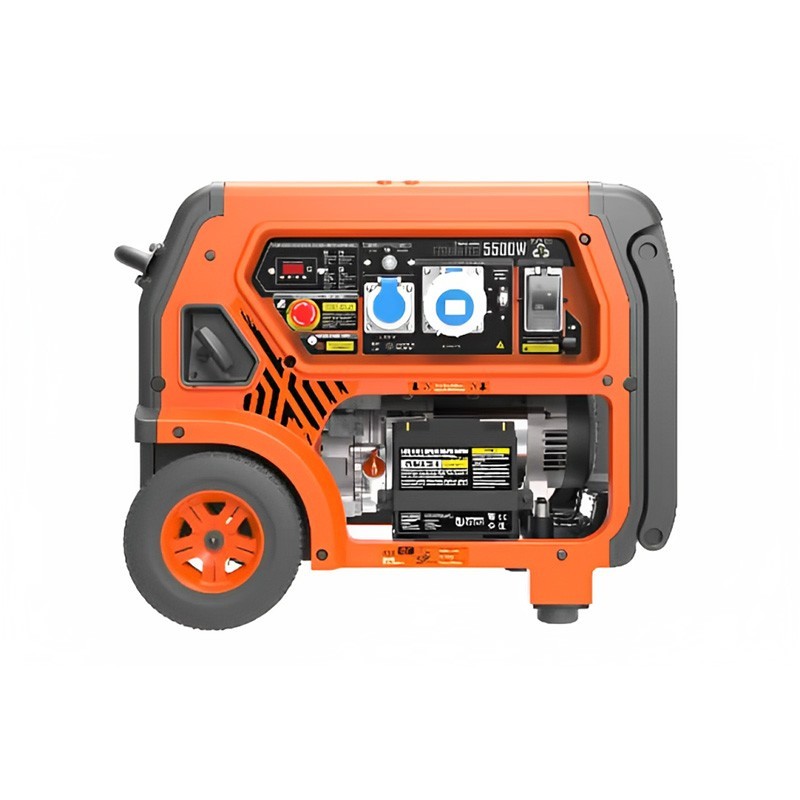

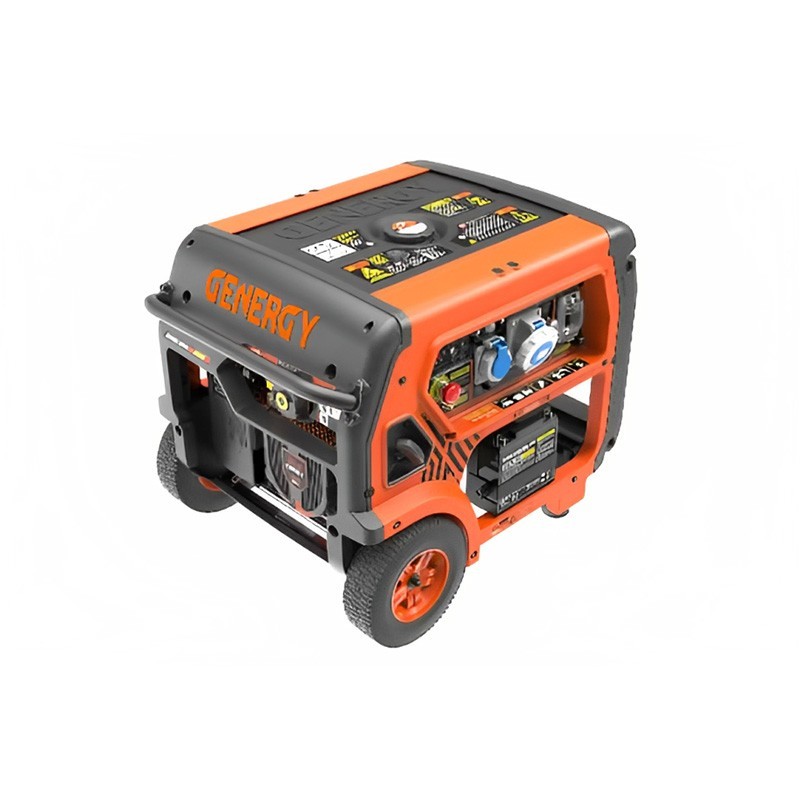

The Ezcaray S 5500W Gasoline Electric Generator Genergy Ezcaray S 5500W has 4-stroke OHV air-cooled gasoline engine, has a weight of 100 Kg, and has a capacity and oil grade of 1.1L - SAE10W40.
It has a voltage of 230 V, a frequency of 50 Hz and has dimensions of 859x664x667 mm, with a rated power of 5000 W, a maximum power of 5500 W, and its current is single-phase type.
The electric generator Gasoline Genergy Ezcaray S 5500W has an electronic stabilization system "SVR", with a displacement of 389 cc, and is equipped with a copper coil.
| Stabilization system | SVR" electronics |
| Voltage - Frequency | 230V - 50Hz |
| Maximum Power | 5500 W |
| Nominal Power | 5000 W |
| Type by number of phases | Single-phase |
| Power factor | 1 |
| Motor Model | SGE390PRO |
| Displacement | 389 cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 70 dB - 76 dB |
| Guaranteed sound power level LwA | 97 dB |
| Starting type | Manual |
| Fuel tank capacity | 28 L |
| Consumption at 25-50-75% load | 1.5 L/H - 1.8L/H - 2.3L/H |
| Autonomy 25-50-75% load | 18.6H - 15.5H - 12.1H |
| Oil capacity and grade | 1.1L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Integrated with 10" wheels |
| Dimensions | 859x664x667 mm |
| Weight | 100 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
