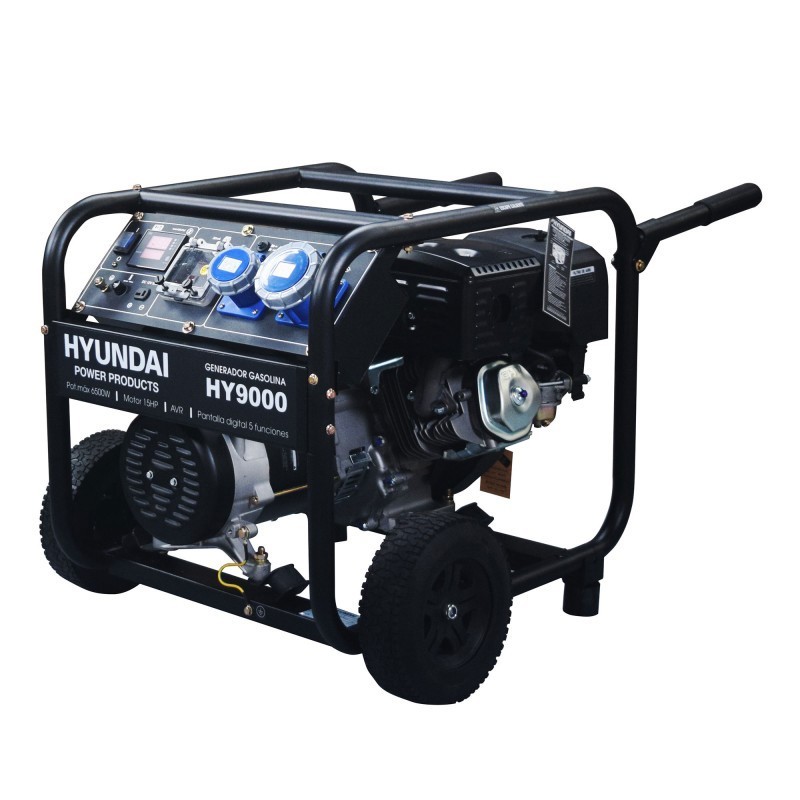

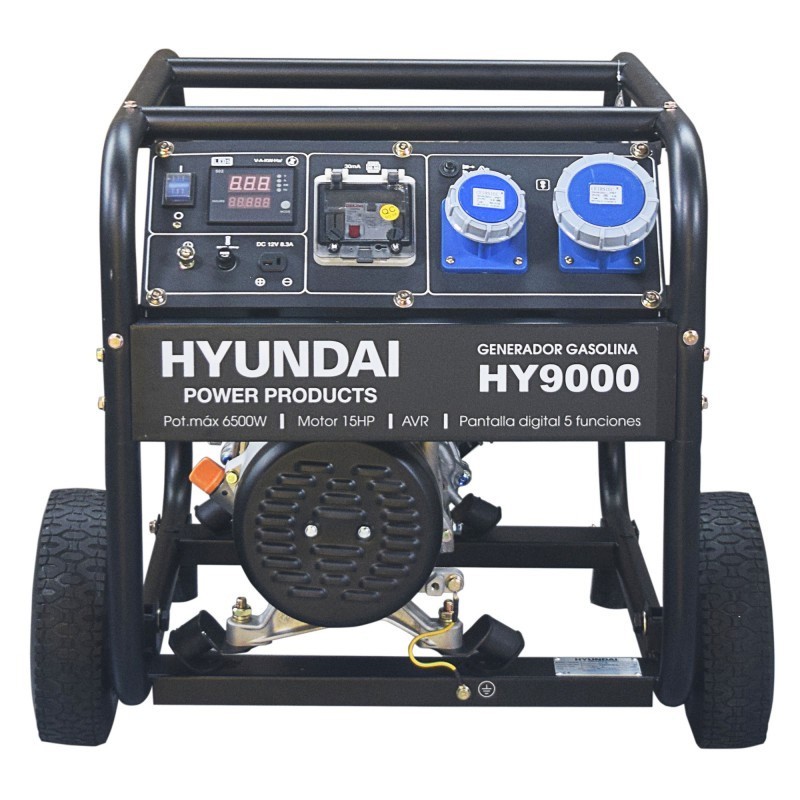

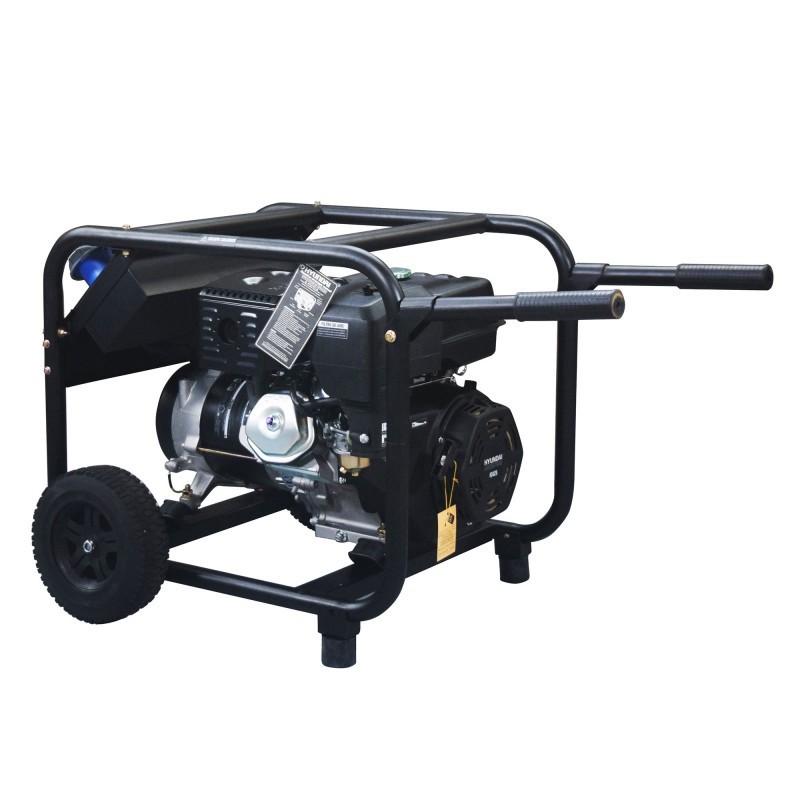

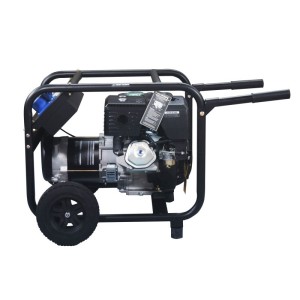

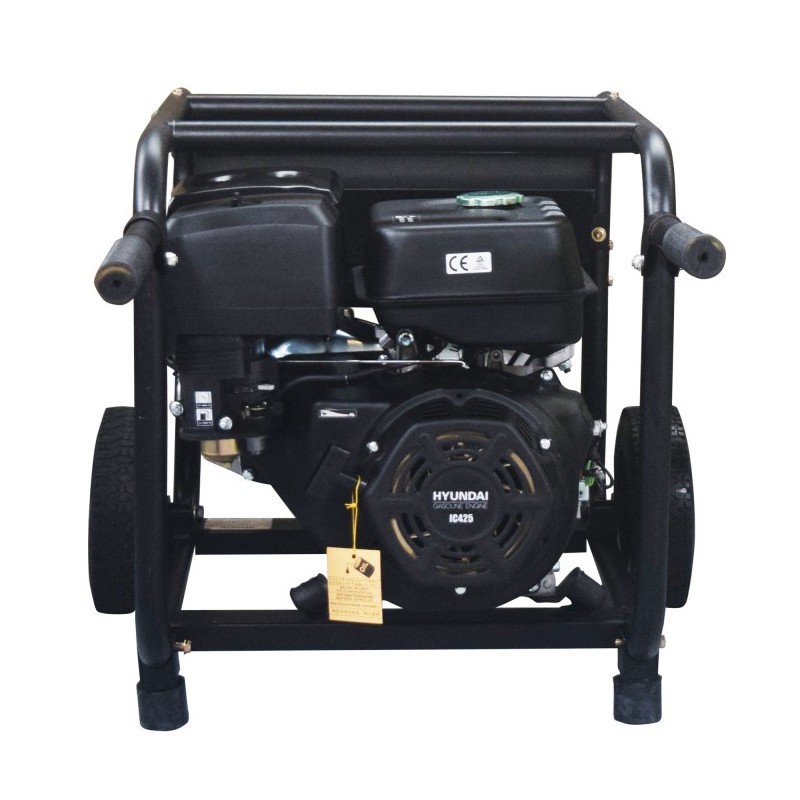

HYUNDAI HY9000K gasoline electric generator has advanced features such as overload protection, a digital LED display for accurate monitoring, and a 30 mA differential for current leakage detection, which ensures electrical safety.
In addition, this single-phase model offers the convenience of two 16A and 32A sockets with a 12V DC output of 8.3 Amp, along with a ground for safe connection.
A standout feature of the HY9000K is its air-cooled OHV 4-stroke engine, which provides manual starting and low fuel consumption. It also features a low oil level alarm that automatically stops the engine to prevent damage.
Its single chassis design reduces the generator's weight, making it easy to transport and handle. The IP67-rated 16A and 32A plugs ensure safe connection in a variety of conditions.
The compact alternator with AVR voltage regulation ensures stable operation and optimum efficiency, and its 100% copper winding contributes to increased durability and reliability of the power supply.
| Frequency | 50 Hz |
| Rated Power | 6 Kw |
| Maximum Power | 6,5 Kw |
| Voltage | 230 V |
| Current | 26 A |
| Sockets | 1x16A / 1x32A (IP67) |
| Digital display | LED5 |
| Tank capacity | 6 L |
| Operation at 50% load | 4 h |
| Noise level at 7 Mts; 50% | 74 dBA |
| Direct current output 12 | 12 V / 8.3 A |
| Engine Type | 4-stroke gasoline |
| HYUNDAI engine model | IC420 |
| Power | 11 HP |
| Starting mode | Manual |
| Displacement | 420 cc |
| Oil capacity | 1,1 L |
| Alternator | A6C |
| Rated power | 6 kVA |
| Power factor | 1 Cos φ |
| Voltage regulation type | AVR |
| Net Weight | 70 Kg |
| Gross Weight | 74 Kg |
| Product Dimensions | 700x530x550 mm |
| Packing Dimensions | 730x560x580 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines area free gift, so they are exempt from warranty. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Battery NOT included in electric start models
