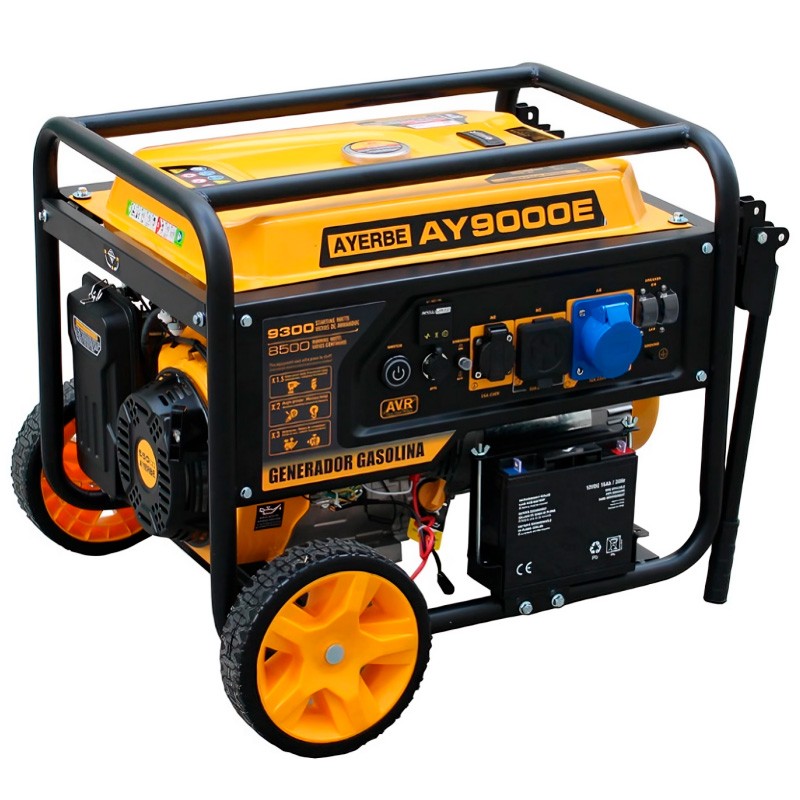

Electric generator Ayerbe 9000 E is designed to provide continuous power for demanding jobs and domestic back-up. It delivers up to 8.5 kW steady at 230 V with AVR regulation that maintains accurate voltage and protects sensitive equipment. The 550 cc KIOTSU engine starts electrically and provides constant thrust with adjusted consumption on long days.
The AYERBE H-class, IP23-protected alternator works reliably outdoors and withstands peaks with no drop in performance. The 25-liter tank provides about ten hours of autonomy at seventy-five percent load, enough to power tools, pumps, lighting and emergency panels without interruption.
Its sturdy frame makes it easy to transport and store, weighing 99 kilograms and in a compact format that fits in a van or site shed. Sound level contained at seven meters for more comfortable use on construction sites, farms and events.
| Generator - Main data | |
| Engine brand | KIOTSU |
| Maximum power | 9.350 W |
| Rated power | 8.500 W |
| Rated speed | 3.000 r.p.m. |
| Voltage / Frequency | 230 V / 50 Hz |
| Start | Electric |
| Power factor | Cos φ 0.8 |
| Noise level | 98 LwA / 75 LpA at 7 m |
| Motor - Characteristics | |
| Manufacturer | KIOTSU |
| Model | KT |
| Displacement | 550 cc |
| Cooling System | Air |
| Recommended oil | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Consumption at 75% | 2.5 L/h |
| Oil capacity | 1,1 L |
| Starting system | Electric |
| Alternator | |
| Brand | AYERBE |
| Model | 9000 |
| Type | Electronic regulation |
| Insulation class | Class H |
| IP protection | IP 23 |
| Excitation system | A.V.R. |
| Voltage tolerance | ± 1% |
| No. of poles | 2 |
| Voltage / Frequency | 230 V / 50 Hz |
| Coating | Standard (without impregnation) |
| Dimensions and weight | |
| Length (L) | 815 mm |
| Height (H) | 560 mm |
| Width (W) | 570 mm |
| Packing volume | 0,26 m³ |
| Weight | 99 kg |
| Tank capacity | 25 L |
| Autonomy at 75% | 10 hours |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Battery NOT included for electric start
