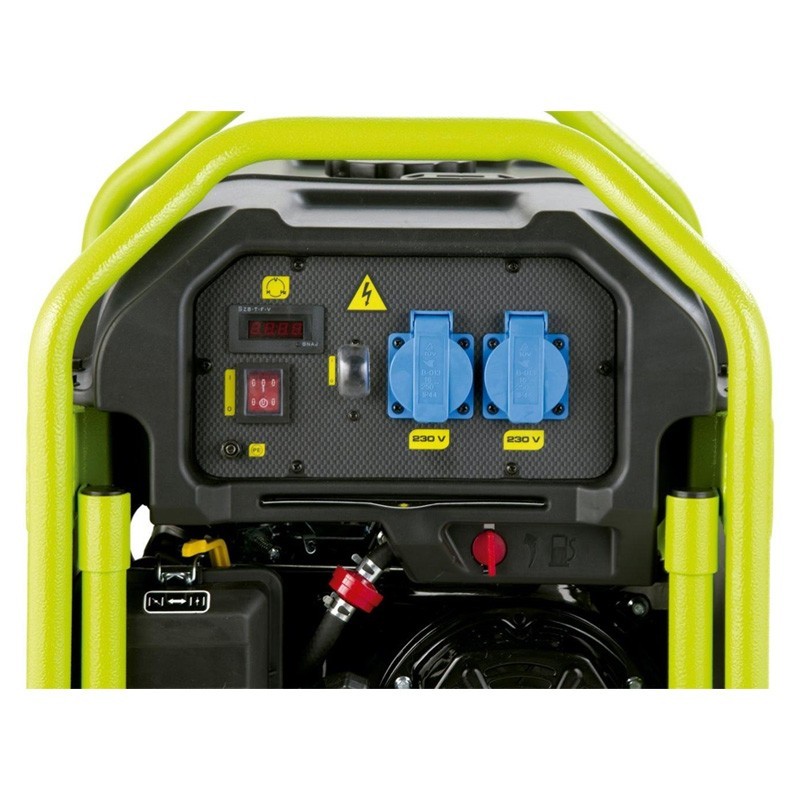

The gasoline electric generator Pramac PX4000 in terms of commands, has an ON/OFF switch that allows a simple and safe control of power generation. The instrumentation of this generator is complete, with a voltmeter, frequency meter, hour meter and fuel level indicator, which provides essential information to monitor and maintain the equipment in optimal operation.
To ensure the safety and security of the generator, features such as thermal protection and an oil level alarm are incorporated. These measures ensure safe operation and prevent damage due to overheating or lack of lubrication. As for power outlets, the Pramac PX4000 is equipped with two 230V, 16A SCHUKO sockets with IP54 rating, allowing multiple devices and tools to be connected simultaneously.
In terms of performance, this generator offers a maximum power of 2700W and a rated power of 2300W, with a power factor of 0.9.. Its 208cc gasoline engine operates at a speed of 3000 rpm and features a manual start system.
With an 18.5 liter fuel tank, the PX4000 provides an autonomy of up to 19.27 hours at 75% load, making it a reliable and durable power source for various applications. In addition, its mechanical speed regulator and electronic voltage regulation system ensure a stable power supply.
| Frequency | 50 Hz |
| Voltage | 230 V |
| Power factor | 0.9 cos ϕ |
| Phases | 1 |
| Maximum power | 2700 W |
| Nominal power | 2300 W |
| Model | SR170F |
| Cooling System | Air |
| Aspiration | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Manual |
| Oil tank | 0.6 l |
| Displacement | 208 cc |
| Alternator type | Brushless |
| Class | H |
| IP protection | 23M |
| Poles | 2 |
| Voltage regulation system | Electronic |
| Stabilization | AVR |
| Guaranteed sound level (LWA) | 93 dBA |
| Noise pressure level @ 7 mt | 65 dB(A) |
| Fuel tank capacity | 18.5 l |
| Fuel consumption at 75% load | 0.96 l/h |
| Fuel consumption at 100% load | 1.29 l/h |
| Autonomy at 75% load | 19.27 h |
| Autonomy at 100% load | 14.34 h |
| Dimensions | 600 x 439 x 588 |
| Dry weight | 53 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
