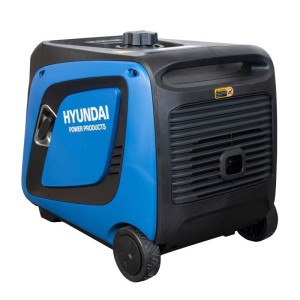

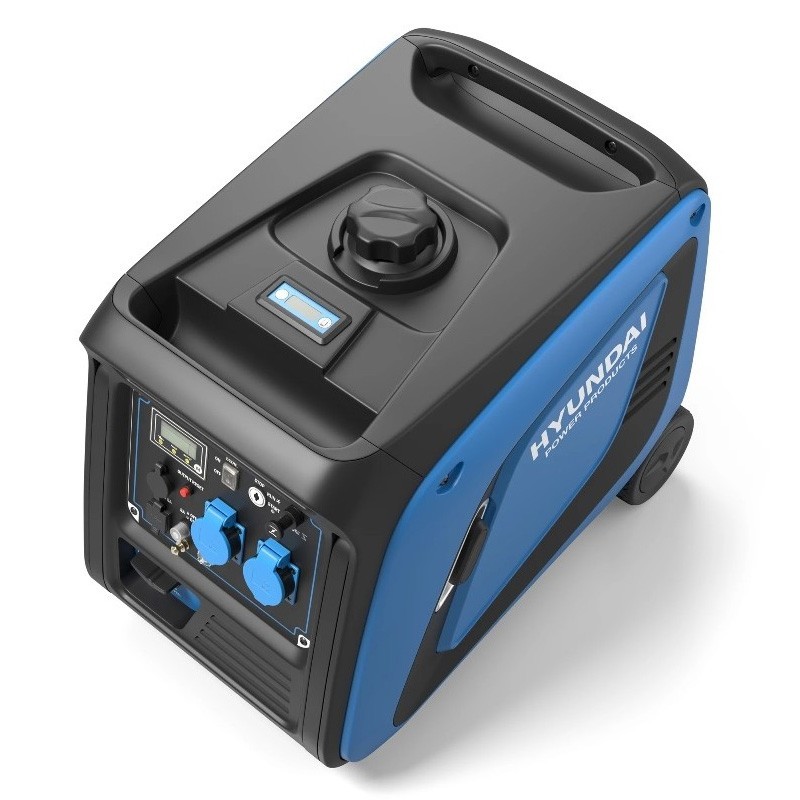

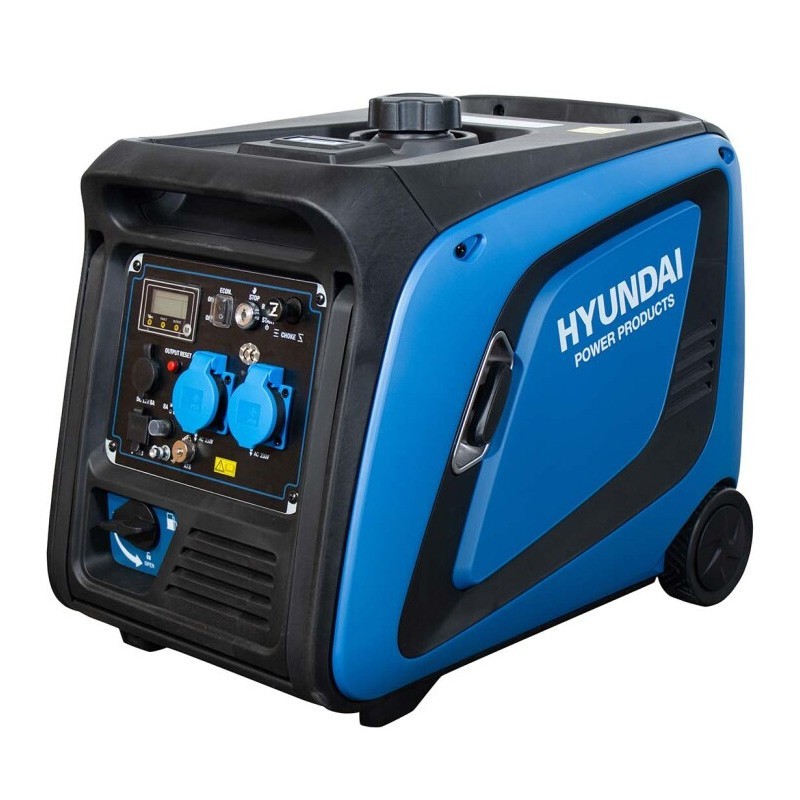

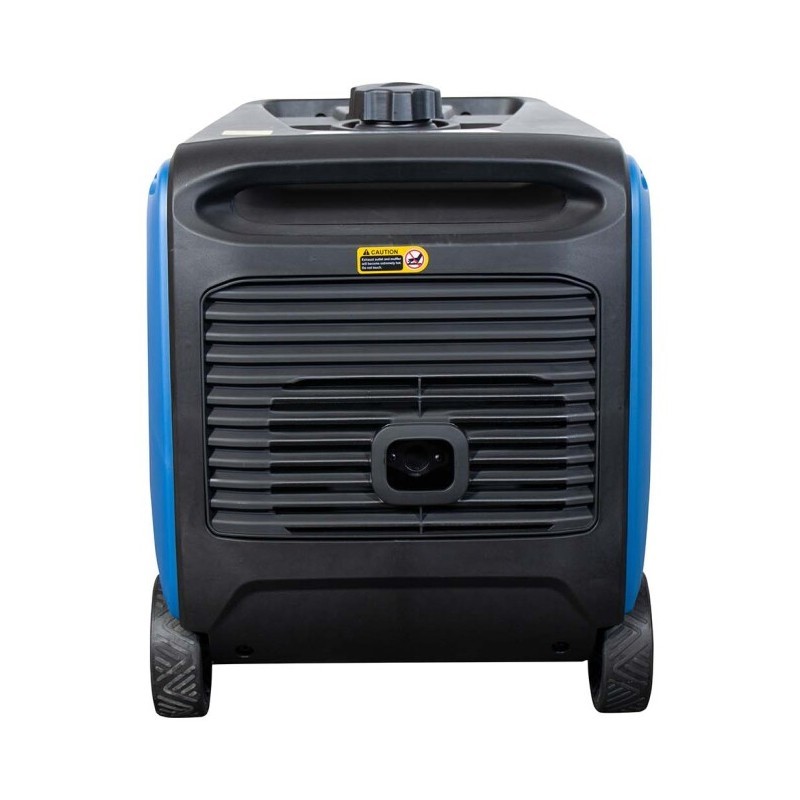

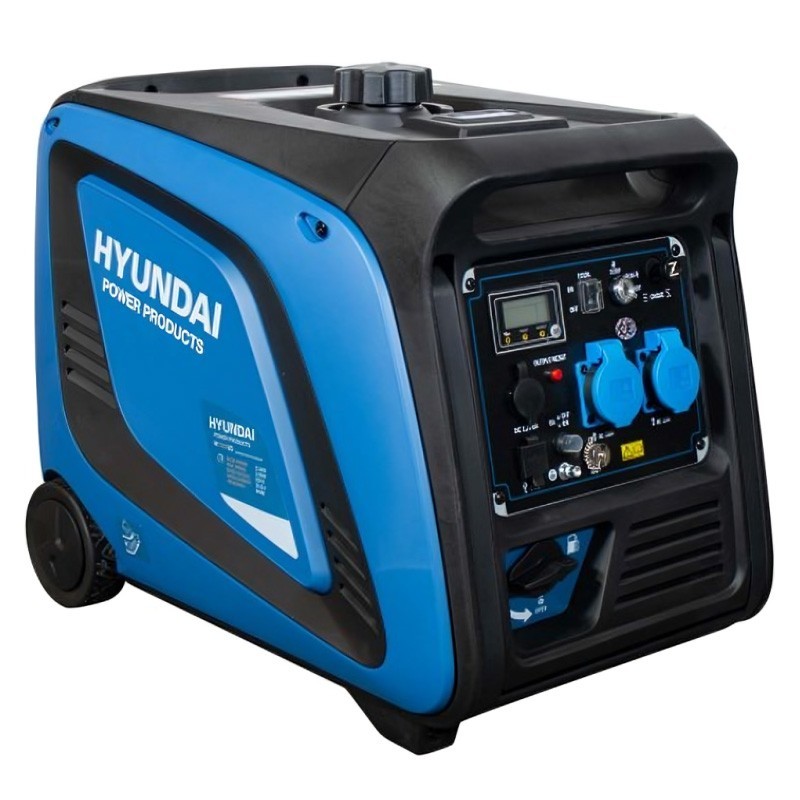

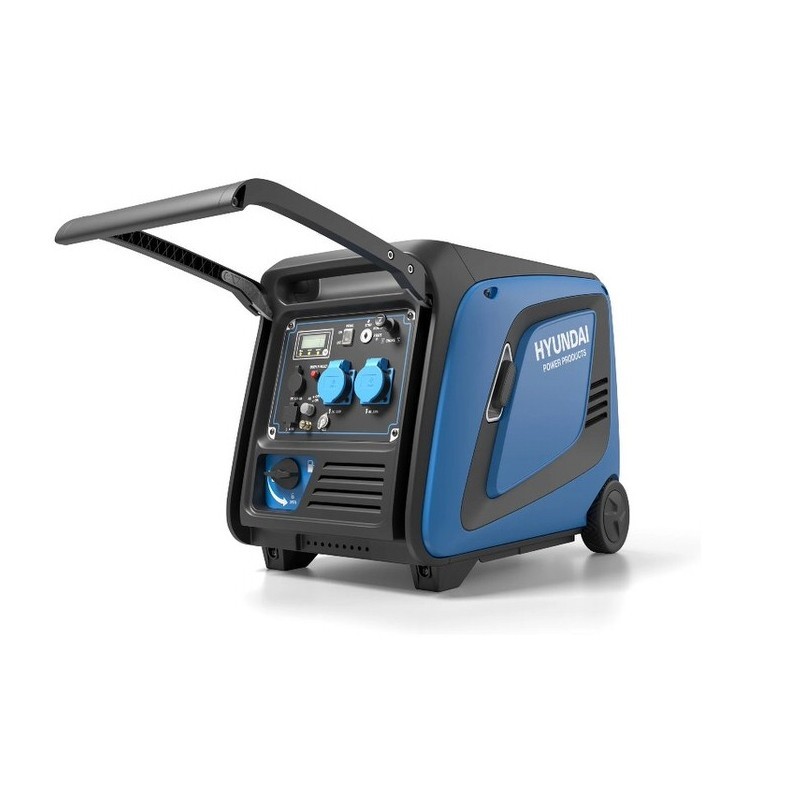

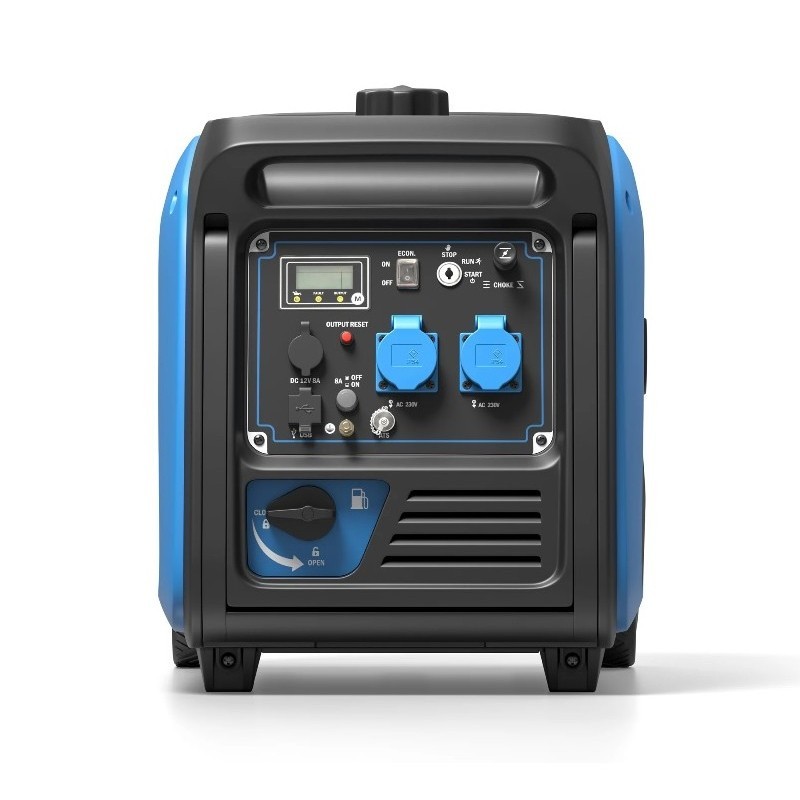

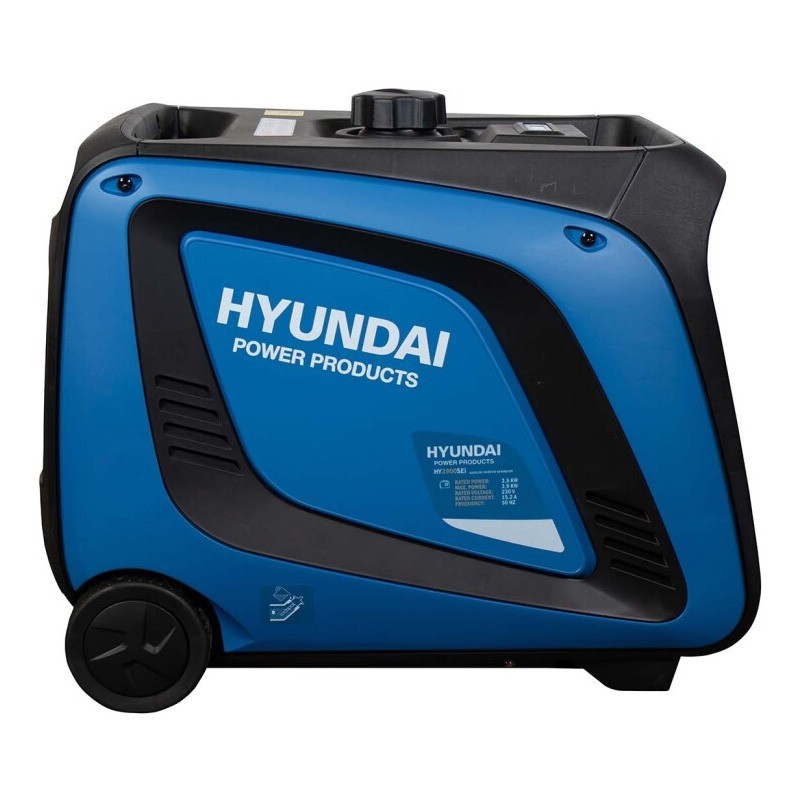

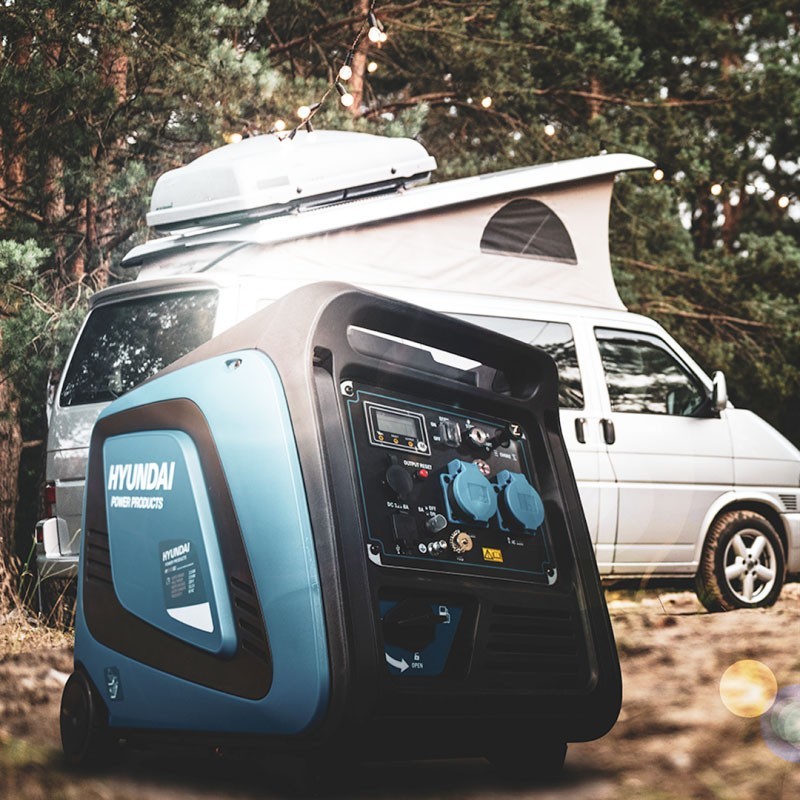

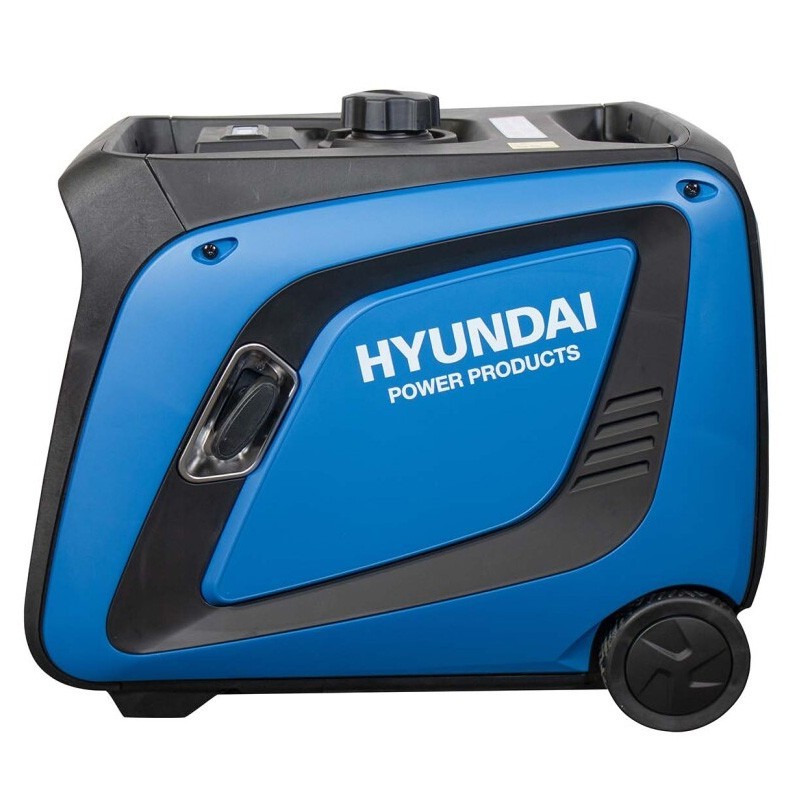

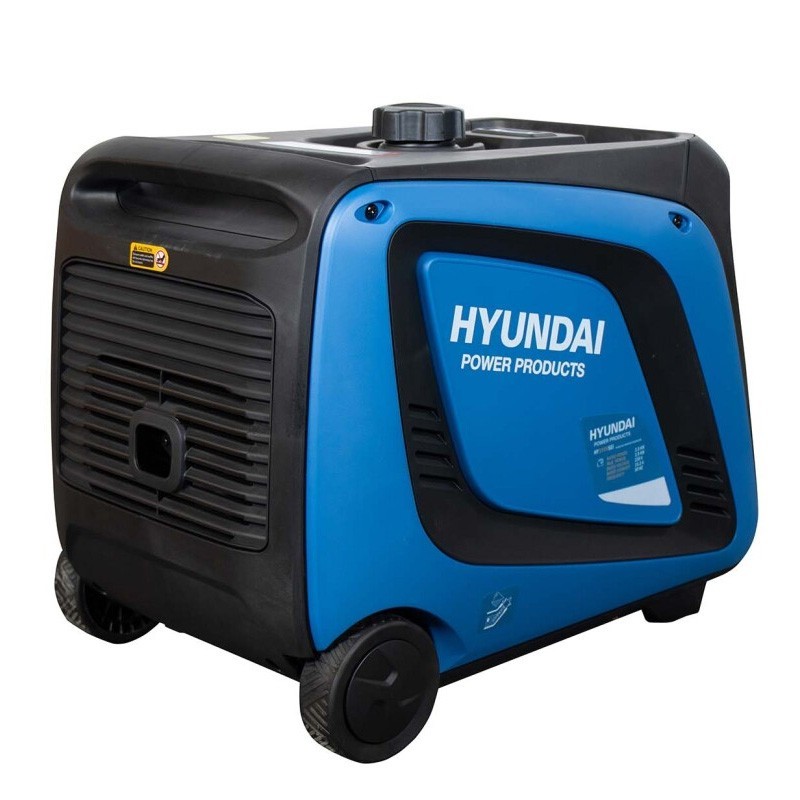

HYUNDAI HY3900SEi electric inverter generator is equipped with a powerful 7.5 HP gasoline engine, model XY170F-1A, which offers optimum performance and a displacement of 223 cc. Its versatility is highlighted by its manual and electric start mode, which makes it easy to start in various situations.
This generator's A35 alternator provides a rated power of 3.5 kVA with a power factor of 1 Cos φ, and its digital voltage regulation ensures stable and reliable power output. With a gross weight of 42 kg and compact packaging dimensions (665x465x535 mm), it is easy to transport and store.
With a tank capacity of 8.6 liters, this generator can run for approximately 5.5 hours at 50% load, making it a long-lasting power source for your electrical needs. In addition, its digital display provides essential real-time information, and its multiple plugs and 12V/8A DC output make it perfect for a variety of applications, from camping to home power backup.
| Frequency | 50 Hz |
| Rated Power | 3.5 Kw |
| Maximum Power | 3,9 Kw |
| Voltage | 230 V |
| Current | 18,9 A |
| Sockets | 2x16A |
| Digital display | Yes |
| Tank capacity | 8,6 L |
| Operation at 50% load | 5,5 hr. |
| Noise level at 7 Mts; 50% | 62 dBA |
| Direct current output 12 | 12 V / 8 A |
| Engine Type | Gasoline 4T |
| HYUNDAI engine model | XY170F-1A |
| Power | 7.5 HP |
| Starting mode | Manual/Electric |
| Displacement | 223 cc |
| Oil capacity | 0,7 L |
| Alternator | A35 |
| Rated power | 3.5 kVA |
| Power factor | 1 Cos φ |
| Voltage regulation type | Digital |
| Gross weight | 42 Kg |
| Packing Dimensions | 665x465x535 mm |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
