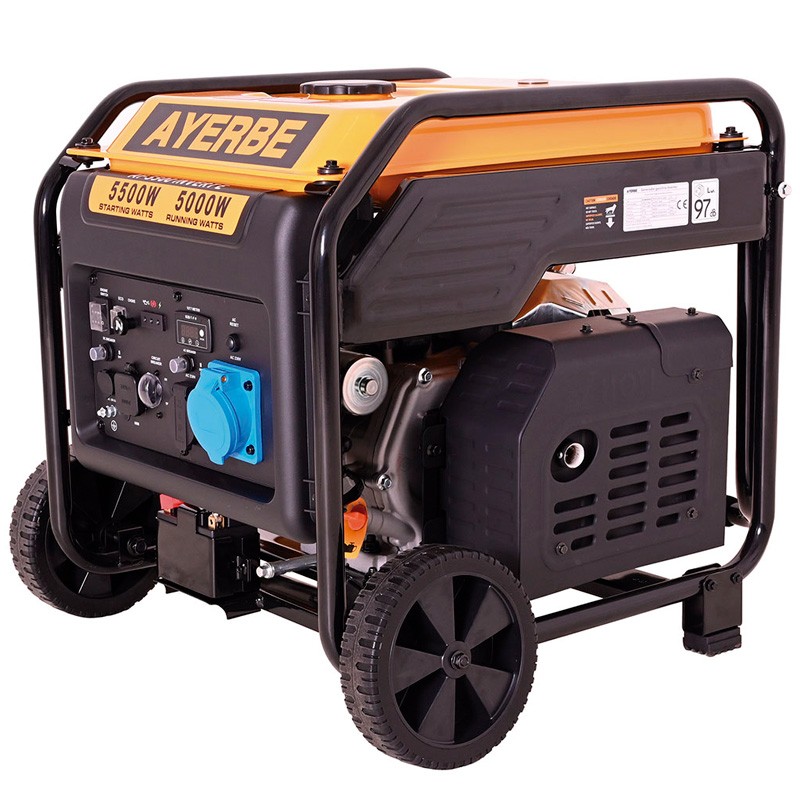

Inverter generator Ayerbe 5500 INVERT E 5.5 kW delivers clean and stable power for sensitive electronics thanks to its inverter control that keeps voltage and frequency very constant.
The 230 V 50 Hz output reduces spikes and distortions making it safer for tools with electronics, computers, measuring equipment and LED lighting. It starts electrically and operates with a contained sound level of around 75 dB at seven meters, ideal when you need power without sacrificing comfort.
At its heart is an air-cooled 301 cc KIOTSU engine that delivers 5.5 kW peak and 5 kW continuous at 0.8 power factor. The 16-liter tank provides up to 7 hours of autonomy at 75 percent load and the whole remains compact and transportable at 60 kg and measures 515 by 495 by 605 mm.
The AYERBE alternator with class H insulation and IP23 protection is designed for intensive outdoor use, making it a reliable solution for construction sites, events, food trucks, caravans and domestic backup where quality inverter power is required.
| Generator - Main data | |
| Engine brand | KIOTSU |
| Maximum power | 5.500 W |
| Rated power | 5.000 W |
| Rated speed | 3.000 r.p.m. |
| Voltage / Frequency | 230 V / 50 Hz |
| Starting | Electric |
| Power factor | Cos φ 0.8 |
| Noise level | 98 LwA / 75 LpA at 7 m |
| Motor - Characteristics | |
| Manufacturer | KIOTSU |
| Model | KT-300 |
| Displacement | 301 cc |
| Cooling System | Air |
| Recommended oil | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Consumption at 75% | 2.3 L/h |
| Oil capacity | 1 L |
| Starting system | Electric |
| Alternator | |
| Brand | AYERBE |
| Model | 5500 |
| Type | Electronic regulation |
| Insulation class | Class H |
| IP protection | IP 23 |
| Excitation system | A.V.R. |
| Voltage tolerance | ± 1% |
| No. of poles | 2 |
| Voltage / Frequency | 230 V / 50 Hz |
| Coating | Standard (without impregnation) |
| Dimensions and weight | |
| Length (L) | 515 mm |
| Height (H) | 605 mm |
| Width (W) | 495 mm |
| Packing volume | 0,15 m³ |
| Weight | 60 kg |
| Tank capacity | 16 L |
| Autonomy at 75% | 7 hours |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
