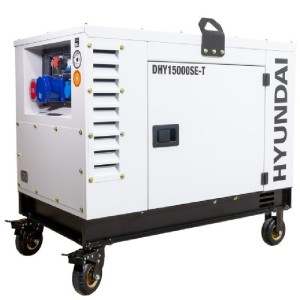

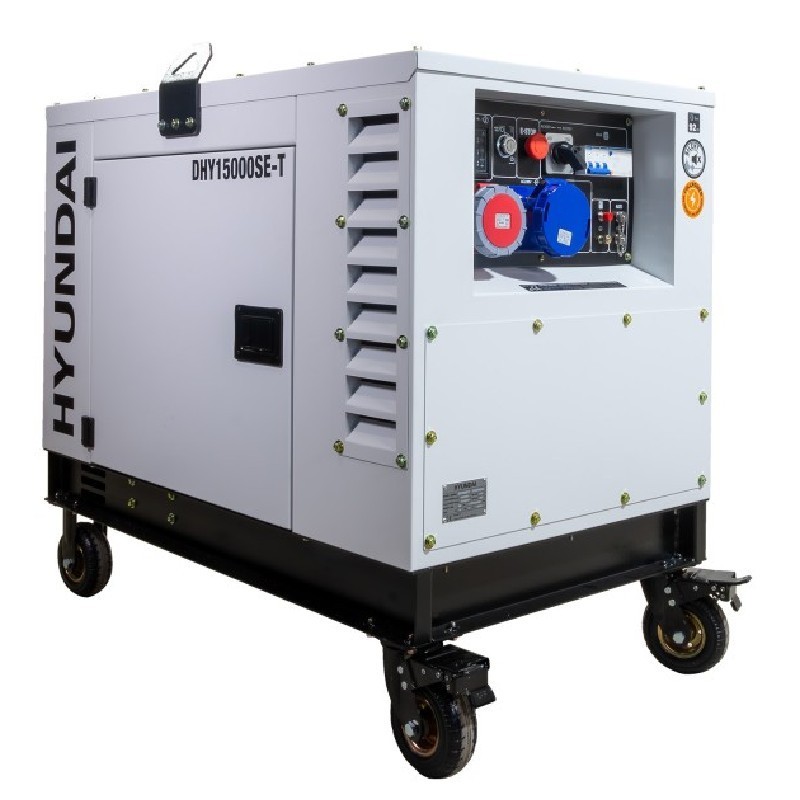

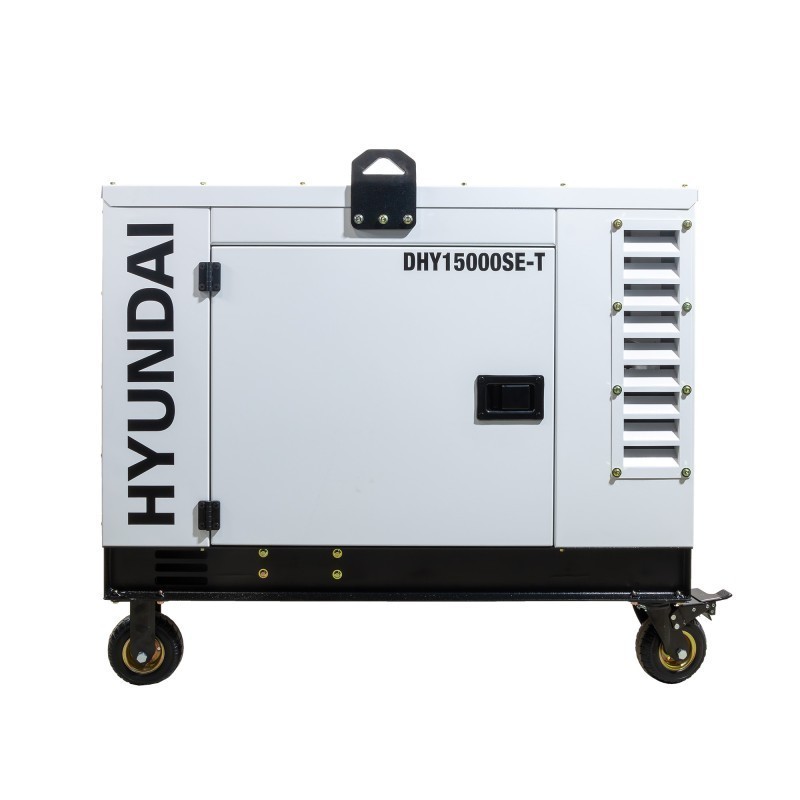

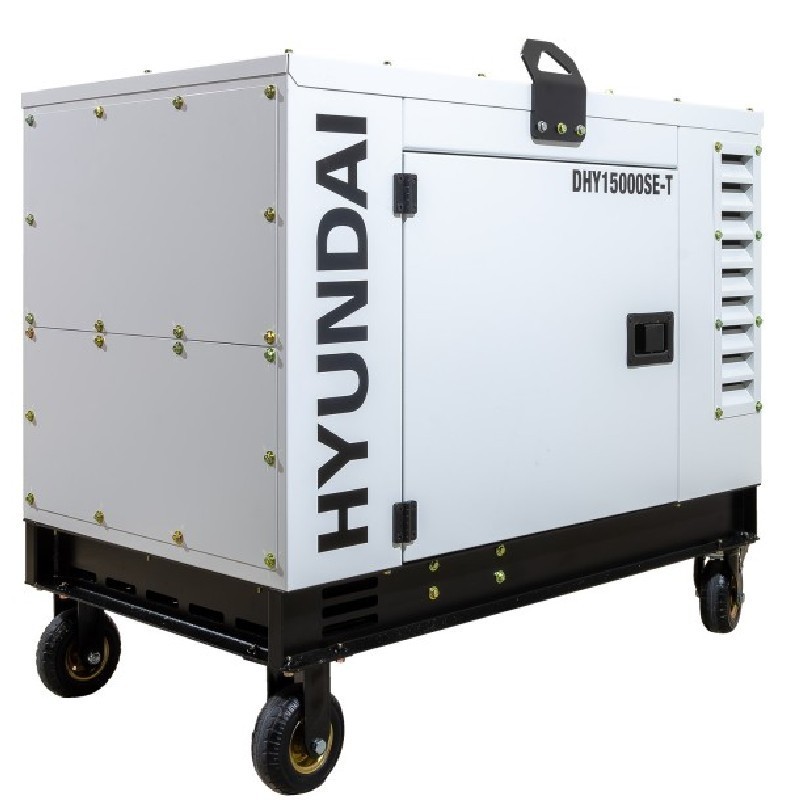

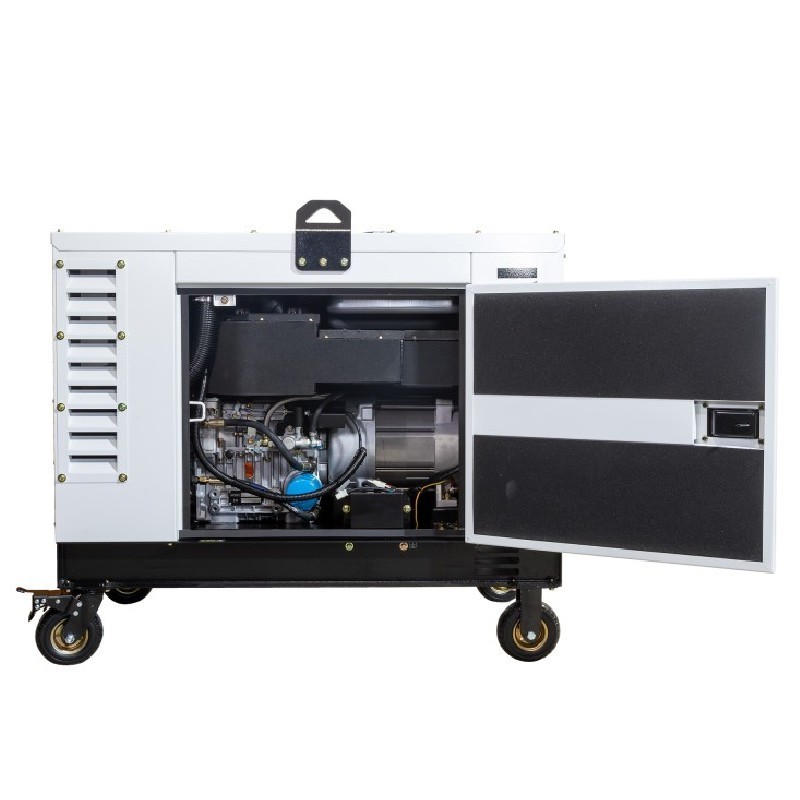

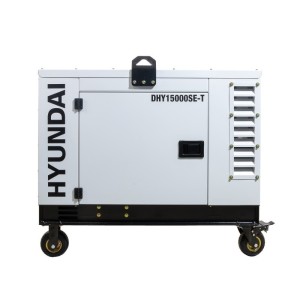

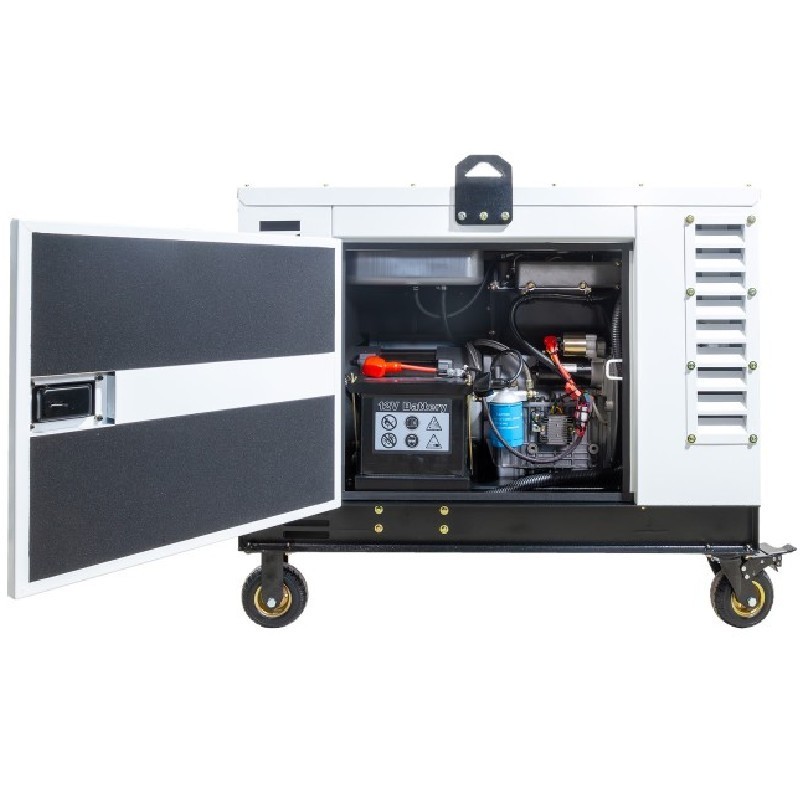

The Hyundai DHY15000SE-T stands out for its superior performance and robust design. Equipped with a powerful 19 HP diesel engine, it delivers up to 12000 W in three-phase and 11000 W in single-phase, ideal for meeting the most demanding energy needs.

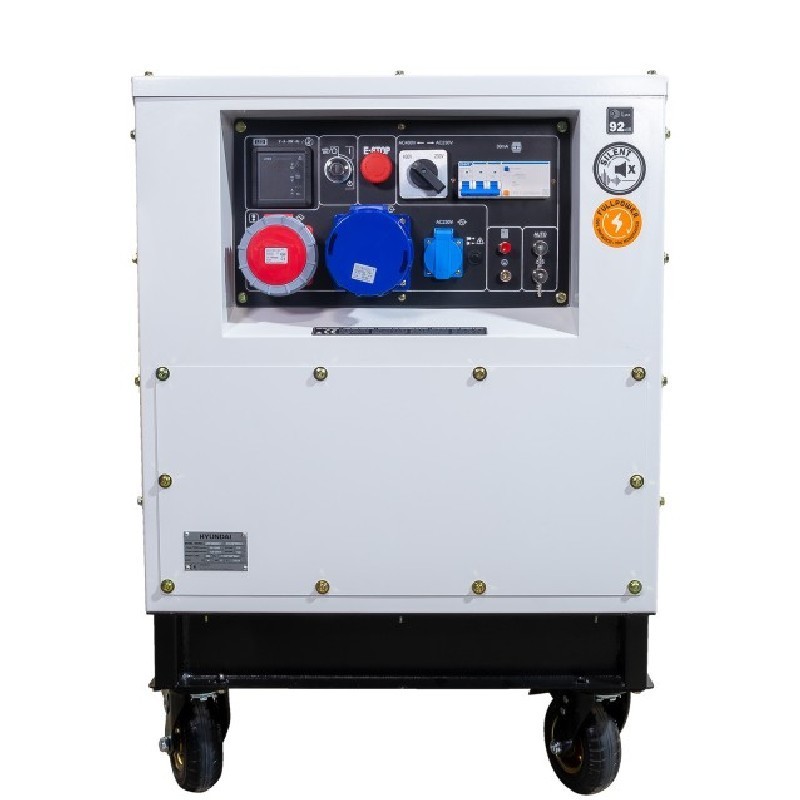

It offers versatile connectivity thanks to its 16A, 32A and 50A outputs, allowing multiple devices to be powered simultaneously. Its electric start system and ATS compatibility guarantee automatic operation in the event of a power outage.
The 8-hour autonomy with only 25 L of fuel and a sound level of 72 dBA make it perfect for environments where constant power is required without sacrificing comfort. In addition, it includes LED display, AVR regulation and a solid structure that makes it easy to transport and use.
| MODEL | DHY1500SET |
| Frequency (Hz) | 50 Hz |
| Nominal Power | 13.8 kVA (400V) / 11000 W (230V) |
| Maximum Power | 15 kVA (400V) / 12000 W (230V) |
| Voltage (V) | 400 / 230 V |
| Current (A) | 21.6 A (400V) / 52.2 A (230V) |

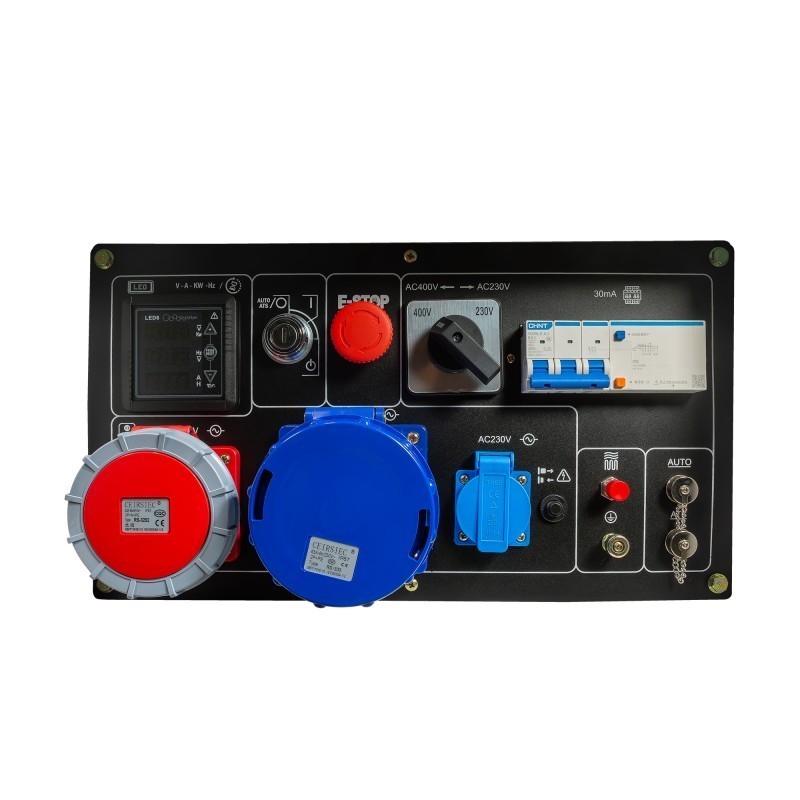

| Sockets | 1xPCE 5p 50A + 1x32A + 1x16A |
| Digital display | LED |
| Tank capacity (L) | 25 L |
| Operation at 50% load (hr.) | 8 h |
| Noise level 7 Mts; 50% load (dBA) | 72 dBA |

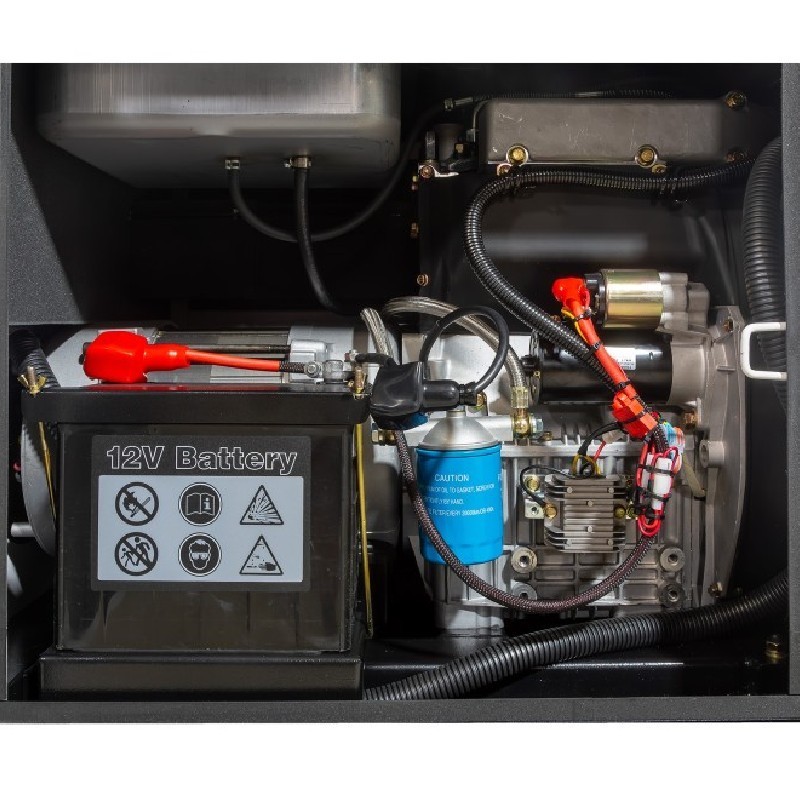

| Battery (Ah) | 12 V / 45 Ah |

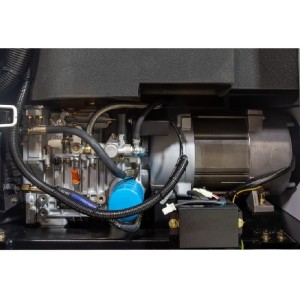

| Engine Type | Diesel |
| HYUNDAI engine model | D1000E |
| Power (HP) | 19 HP |
| Starting mode | Electric / ATS |
| Displacement (cc) | 997 cc |
| Oil capacity (L) | 2.8 L |
| Alternator | AL12-T |
| Rated power (kVA) | 12 kVA |
| Power factor (Cos φ) | 0.8 / 1 |
| Voltage regulation type | AVR* (AVR*) |
| Gross weight (Kg) | 315 kg |
| Packaging Dimensions (mm) | 1350 x 700 x 880 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
