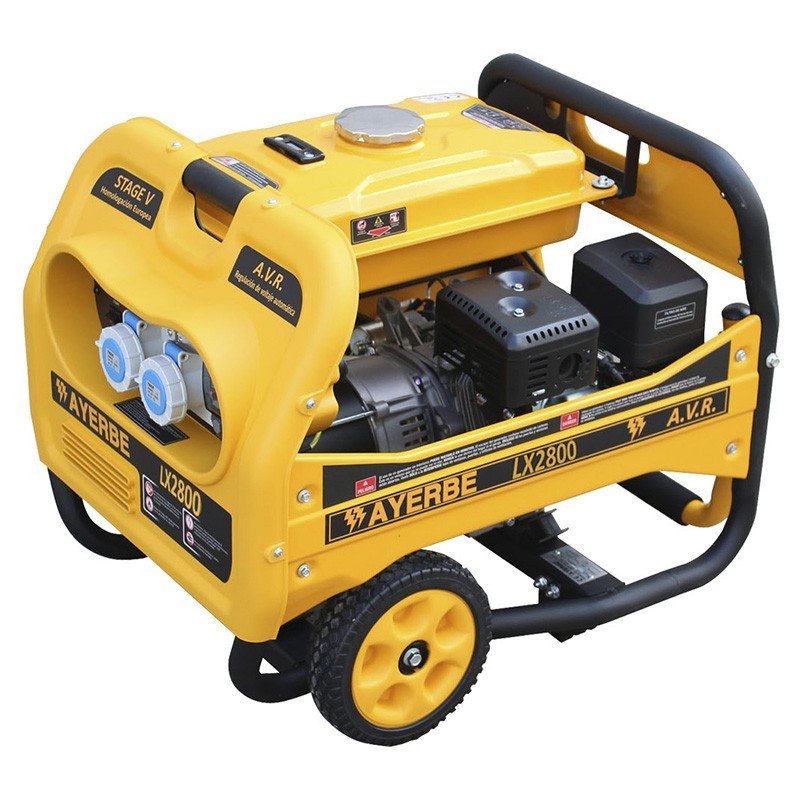

The Ayerbe LX2800 single-phase gasoline generator is a reliable power source with a Stage V engine that complies with European emission approvals. Equipped with an OHV overhead valve gasoline engine, this generator offers a maximum power output of 2800 W and a rated output of 2500 W, ensuring a stable power supply.
Its AVR output-regulated alternator and 100% copper winding ensure efficient and durable performance. The LX2800's control panel has advanced features, such as a circuit breaker for overload protection, an oil alarm, hour meter, differential and ground spike, digital voltmeter and digital frequency meter.
In addition, it has IP67 sockets for added safety. Its rugged reinforced tubular chassis, front and side guards, and a folding handlebar handle make it easy to transport and handle. With 200 mm (1.5 in.) caster wheels, this generator offers effortless mobility in a variety of environments.
| Maximum power | 2.800 W |
| Rated power | 2.500 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 230 V. / 50 Hz |
| Approved control panel | With IP 55 protection |
| Power factor | Cos phi 0,8 |
| Noise level | 92 LwA / 68 LpA@7m |
| Differential 0.03 Amp, voltmeter hour meter and ground spike | |
| Motor | |
| Brand | KIOTSU |
| Model | KT-170 |
| Power | 7 HP |
| Displacement | 212 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 1.2 L/H |
| Oil capacity | 0.6 L - 0.6 L oil bottle included |
| Starting system | Manual |
| Alternator | |
| Brand | AYERBE |
| Model | 2800 |
| Type | Electronic regulation |
| Type of insulation | Class H |
| IP protection | IP 23 |
| Excitation system | A.V.R. |
| Voltage Tolerance | + - 1% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 10 l |
| Autonomy at 75% | 9 hours |
| Weight | 52 kg |
| Dimensions | 660 x 560 x 470 mm |
| Packing volume | 0,17 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
