Single-phase electric generator Ayerbe AY 6000 D 5200 W


  • Engine: Yanmar LN-100
  • Displacementpower: 406 cc
  • Maximum power: 5200 W
  • Weight: 110 Kg

Battery NOT included in electric start models

En stock
icon Power Supply
Power Supply
Diesel
icon Stabilization
Stabilization
Compound
icon Current
Current
Single-phase
icon Startup
Startup
Electric
icon Startup
Startup
Manual
icon Engine
Engine
Yanmar
icon Engine model
Engine model
LN-100
icon Displacement
Displacement
406 cc
icon Engine type
Engine type
4 times
icon Power rating
Power rating
4800 W
icon Maximum power
Maximum power
5200 W
icon Type of winding
Type of winding
Copper
icon Type of generator
Type of generator
With handle and wheels
€1,833.06 excl. VAT
- 4%
€1,759.74 excl. VAT
€2,129.28 VAT incl.
Free shipping for Spain (Peninsula)
Select boot type
Qty

Request a quote
close

Request a quote


Single-phase electric generator Ayerbe AY 6000 D 5200 W
€2,129.28
Select boot type
Qty

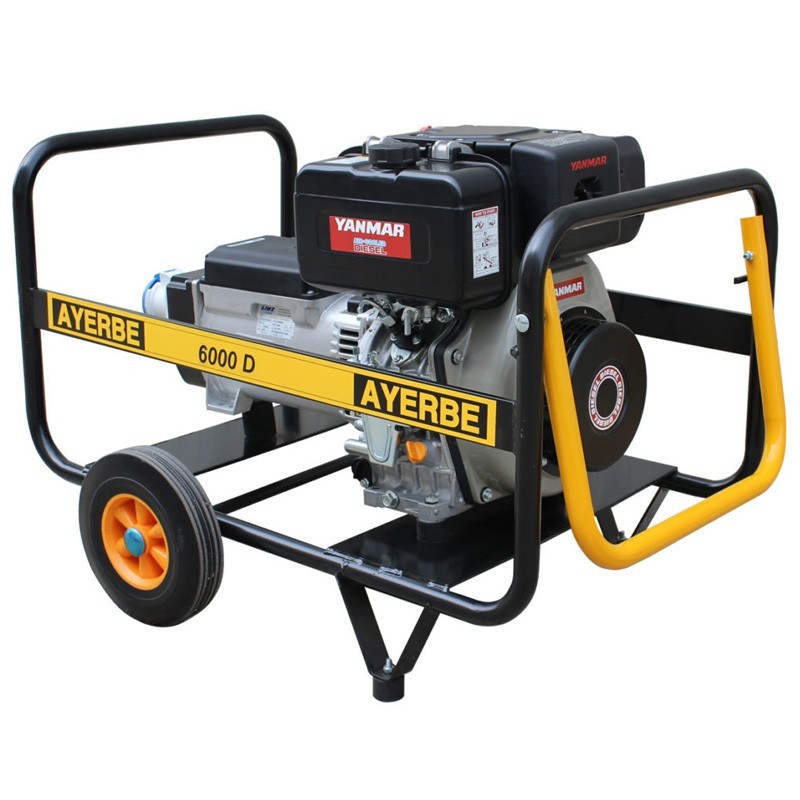

Electric generator Ayerbe AY 6000 D

The generator Ayerbe AY 6000 D has a Yanmar LN-100 diesel engine with a power of 10 HP and a displacement of 406 cubic centimeters.

The maximum power that this diesel generator is capable of delivering is 5200 W and it does so at 3000 revolutions per minute. It is available in two starting versions , manual or electric.

The fuel consumption of this diesel generator is 1.7 liters per hour and the capacity varies depending on the model from 5.5 liters to 15 liters.

As for the autonomy, the diesel generator Ayerbe AY 6000 D has an autonomy of up to 3 hours and the model AY 6000 D E has much more autonomy reaching up to 12 hours of use.

Technical characteristics

Maximum power 6,5 KVA - 5.200 W
Nominal power 6 KVA - 4,800 W
R.p.m. 3.000 r.p.m.
Voltage / Frequency 230 V. / 50 Hz.
Starting Manual or Electric
Power factor Cos phi 0,8
Noise level 108 LwA / 79 LpA@7m
Motor
Brand YANMAR
Model LN 100
Power 10 HP
Displacement 406 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Intake Natural
R.P.M. of engine 3.600 r.p.m.
Speed governor Mechanics
Fuel DIESEL
Fuel consumption at 75% 1.7 L/H
Oil capacity 1,1 L
Starting system Manual or Electric
Alternator
Brand LINZ
Model E1C 10 MI
Type Brushless
Insulation type Class H
IP protection IP 23
Excitation system Self-excited brushless
Voltage Tolerance + - 5%
Poles 2
Voltage / Frequency 230 / 50 Hz.
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity (manual start model) 5,5 l
Tank capacity (electric start model) 15 l
Autonomy at 75% 3.3 hours
Autonomy at 75% 12 hours
Weight 110 kg
Dimensions 950 x 625 x 746 mm
Packing volume 0,44 m³

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
