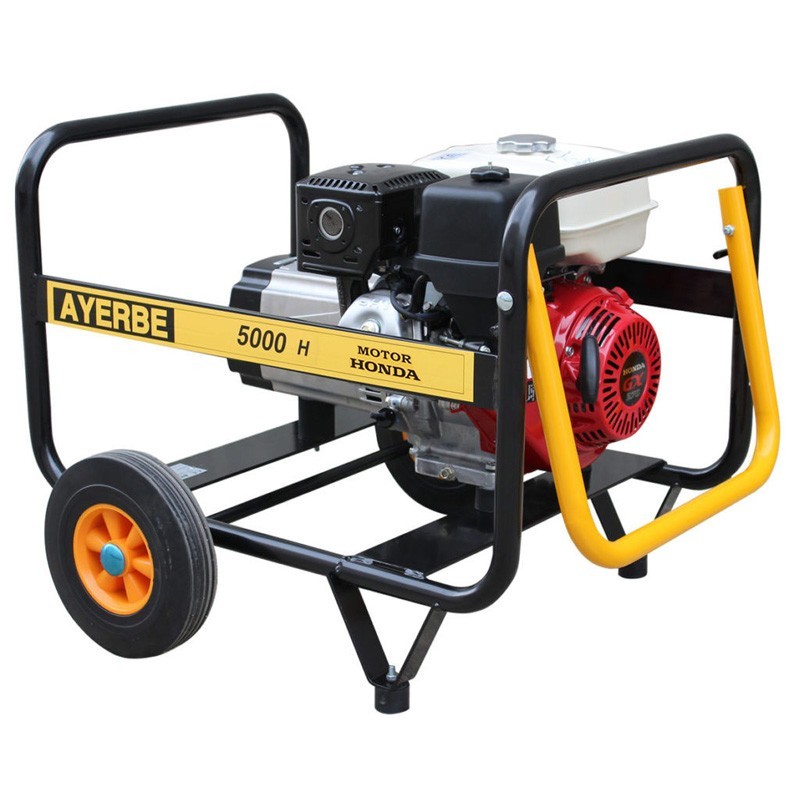

The Gasoline Current Generator Ayerbe AY 5000 H MN is a powerful and versatile machine with a maximum power of 5 KVA (4,200 W) and a rated power of 4.8 KVA (3,850 W). With its engine running at 3,000 rpm, this generator offers a voltage of 230 V and a frequency of 50 Hz, making it suitable for a wide variety of applications.
Its manual start is easy to use, and its power factor of Cos phi 0.8 ensures optimum efficiency in power generation. In addition, its sound level of 97 LwA at 7 meters makes it environmentally friendly and suitable for use in various environments.
This gasoline-powered generator Ayerbe AY 5000 H MN combines power and efficiency, making it an excellent choice to support your power needs in both domestic and commercial situations. Its compact design and wheeled kit make it easy to transport and use anywhere reliable power is required.
With features such as manual start and its efficient power factor, this generator is a solid investment to keep your home or business running during power outages or in locations where a fixed power source is not available.
| Maximum power | 5 KVA - 4,200 W |
| Rated power | 4,8 KVA - 3.850 W |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 230 V. / 50 Hz. |
| Start | Manual |
| Power factor | Cos phi 0,8 |
| Noise level | 97 LwA / 74 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 270 |
| Power | 5.5 HP |
| Displacement | 272 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 1.8 L/H |
| Oil capacity | 1,1 L |
| Starting system | Manual |
| Alternator | |
| Brand | LINZ |
| Model | SP 10 SE |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 6 l |
| Autonomy at 75% | 3,5 hours |
| Weight | 75 kg |
| Dimensions | 770 x 746 x 625 mm |
| Packing volume | 0,36 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
