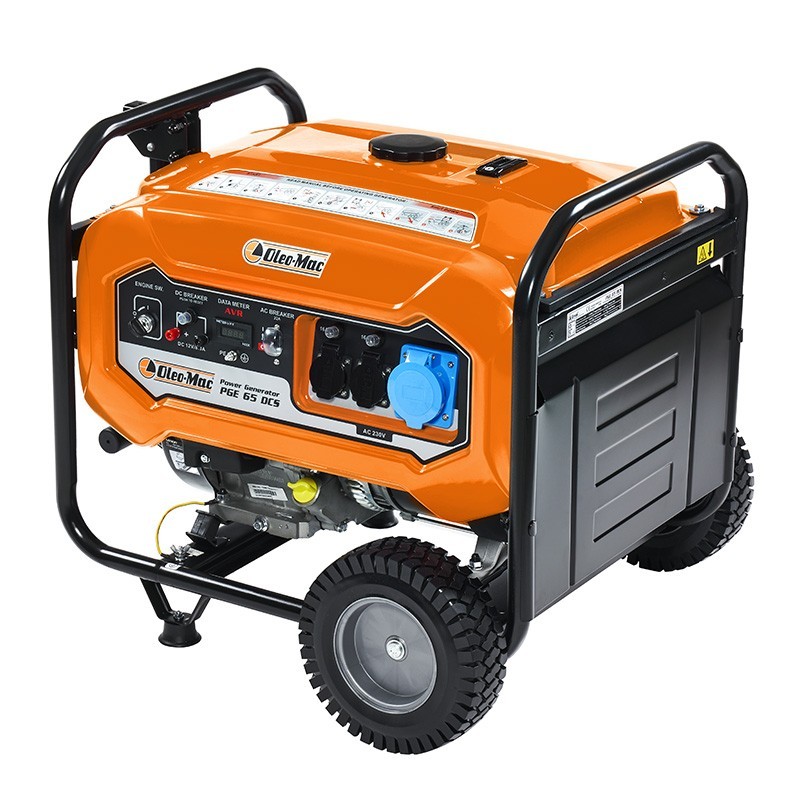

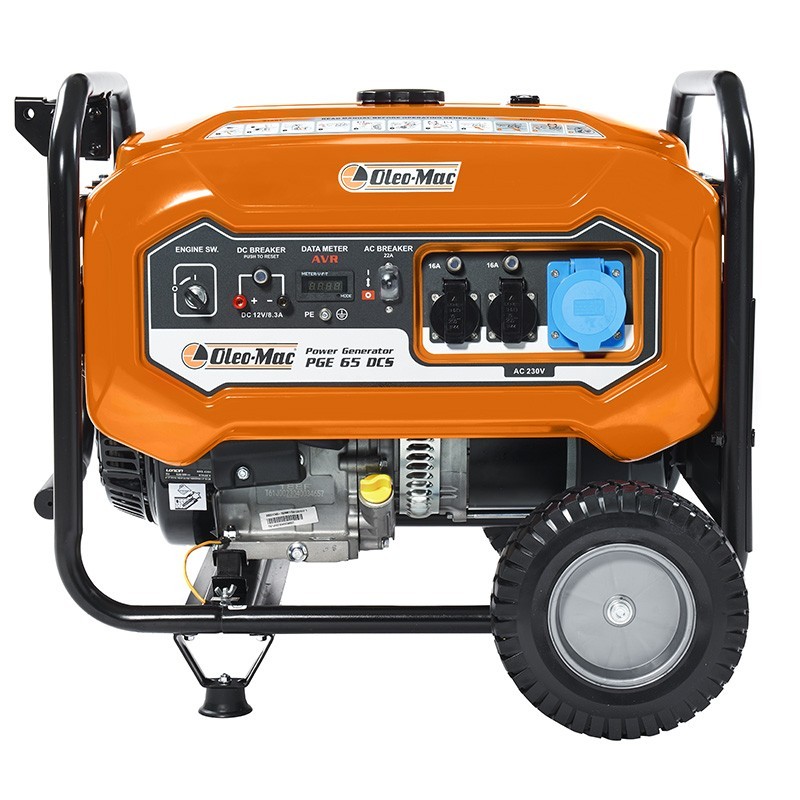

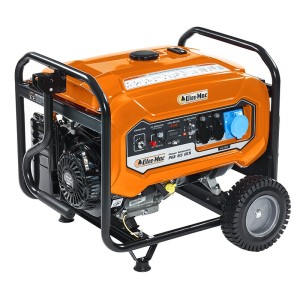

The gasoline electric generator Oleo Mac PGE 65 DCS starts easily with recoil and emits less than 76 dbA of noise, making it suitable for a variety of environments.
Weighing 80.5 kg and with compact dimensions of 790 x 560 x 585 mm, it is highly portable and offers a power output of 5.0 kW with 9 hours of operation at 50% load.
It offers voltage versatility with 110/120/220/230 V options, AC power quality G1 THD, and features 12 V DC voltage and 8.3 A DC current.
Equipped with a 25 L fuel tank and a 389 cc engine, the Oleo Mac PGE 65 DCS Generator is a robust and reliable choice for a variety of power applications.
| Power rating | 5.0 kW |
| Engine model | K 1200 HG OHV |
| Engine displacement | 389 cc |
| Fuel tank capacity | 25 L |
| Oil tank capacity | 1.1 L |
| Operating time at 50% of rated power | 9 |
| Rated frequency | 50/60 Hz |
| Rated voltage | 110/120/220/230 V |
| AC Power Quality | G1 THD |
| Power factor | 1 |
| DC voltage | 12 V |
| Continuous current | 8.3 A |
| Starting type | Recoil start |
| Noise | |
| Net weight | 80.5 kg |
| Dimensions | 790 x 560 x 585 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
