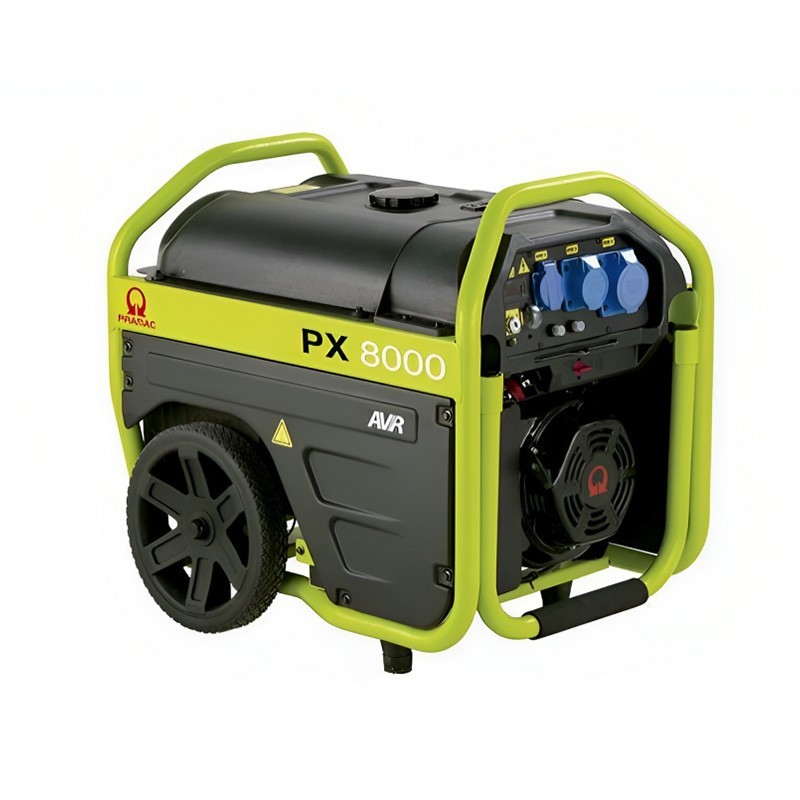

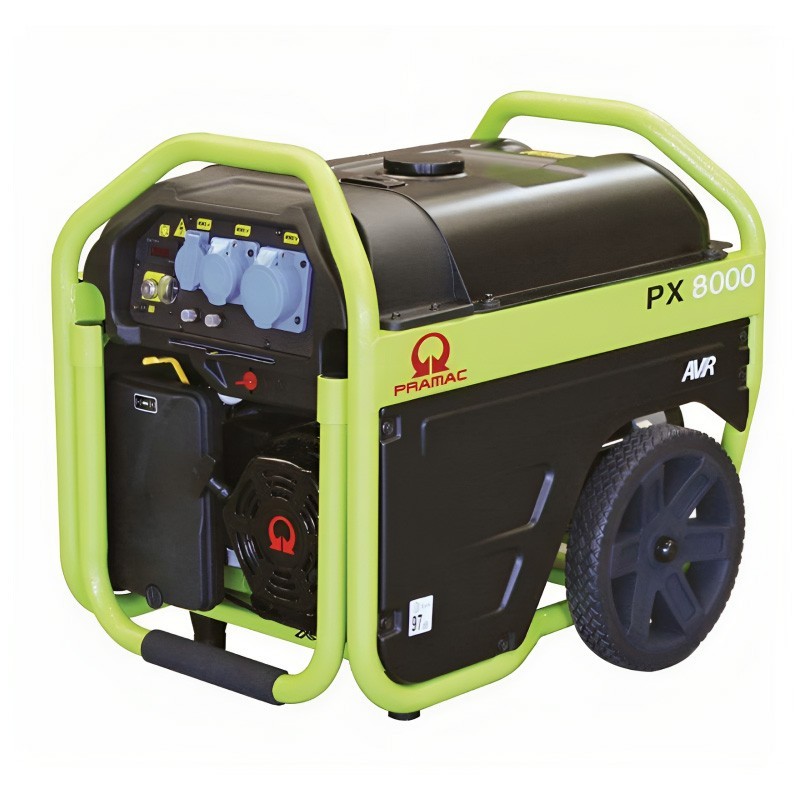

The Pramac PX8000 Gasoline Electric Generator is a reliable and versatile power source designed to meet a variety of needs. This robust generator runs on gasoline and offers an electric start, making it easy to start. Its 1.1 liter oil tank and 420 cc displacement ensure efficient and long-lasting operation.
This generator features a variety of plugs to suit different devices and equipment, including SCHUKO 230V 16A IP54, 2P+T CEE 230V 16A IP44, and 2P+T CEE 230V 32A IP44 plugs. For added convenience, it is equipped with a folding handle and integrated wheels, making it easy to transport, even on uneven terrain.
The generator's control panel includes user-friendly controls, such as the start key with OFF, ON and START positions. The instrumentation consists of a voltmeter, hour meter, frequency meter and fuel level indicator, allowing accurate monitoring of its operation. In addition, the generator is equipped with protections such as a circuit breaker and low oil level protection, ensuring safe and reliable operation in various applications.
| Frequency | 50 Hz |
| Voltage | 230 V |
| Power factor | 0.9 cos ϕ |
| Phases | 1 |
| Maximum power | 5400 W |
| Nominal power | 4500 W |
| Model | SR190F |
| Cooling System | Air |
| Aspiration | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Electric |
| Oil tank | 1.1 l |
| Displacement | 420 cc |
| Class | F |
| IP protection | 23/44 |
| Poles | 2 |
| Voltage regulation system | Electronic |
| Stabilization | AVR |
| Guaranteed sound level (LWA) | 97 dBA |
| Noise pressure level @ 7 mt | 69 dB(A) |
| Fuel tank capacity | 27 l |
| Fuel consumption at 75% load | 2.00 l/h |
| Fuel consumption at 100% load | 2.66 l/h |
| Autonomy at 75% load | 13.50 h |
| Autonomy at 100% load | 10.15 h |
| Dimensions | 727 x 515 x 670 |
| Dry weight | 94 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
