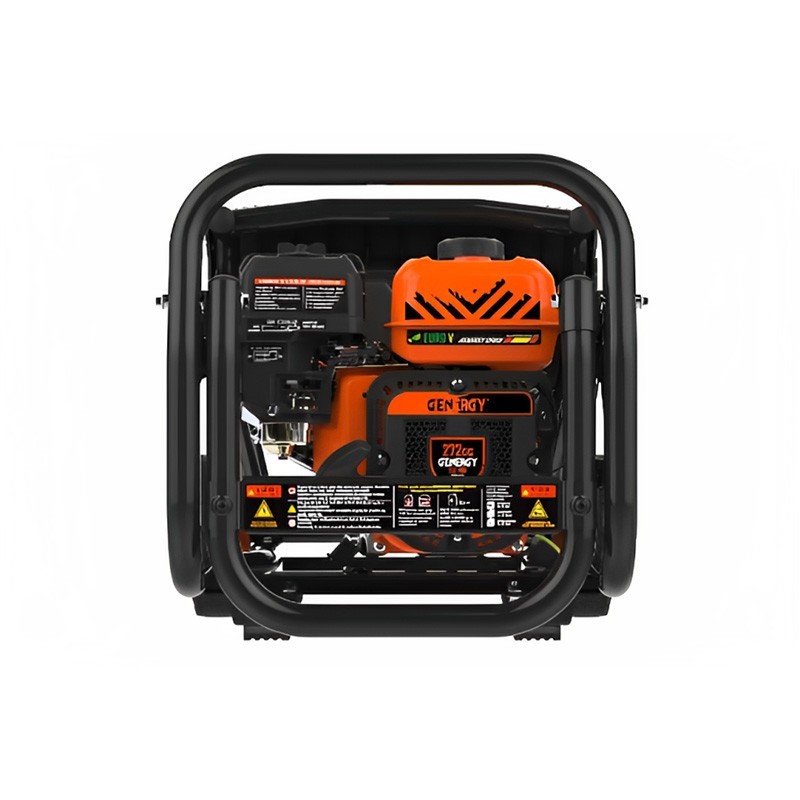

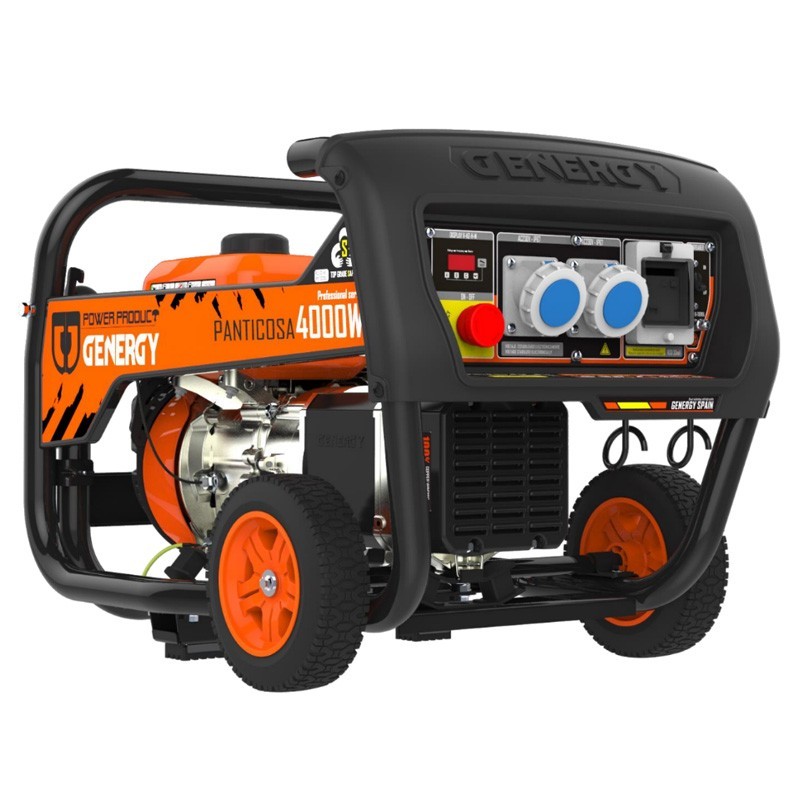

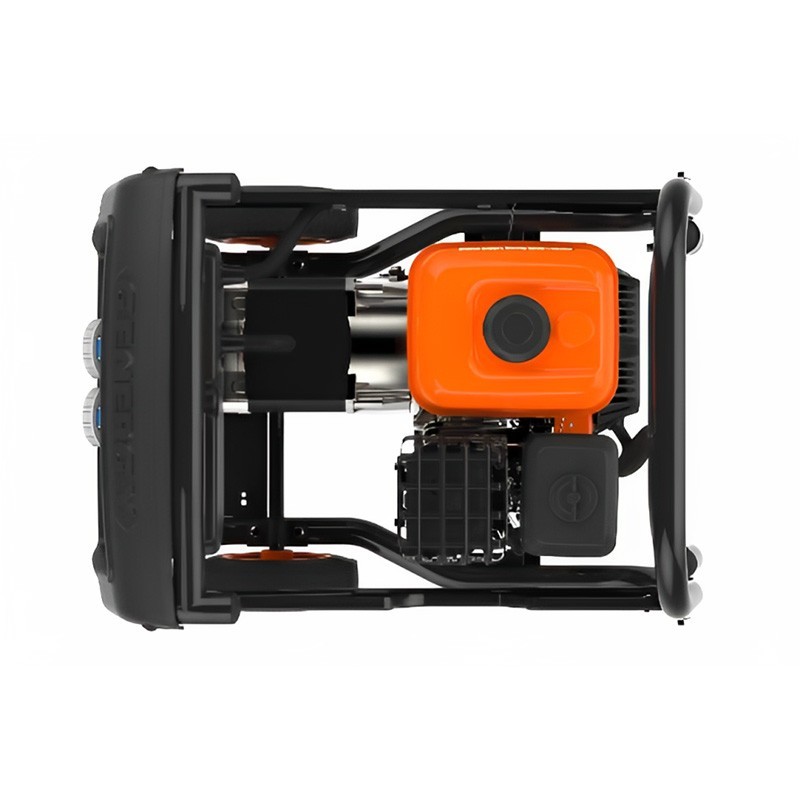

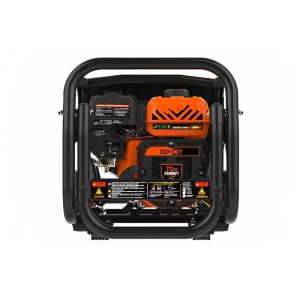

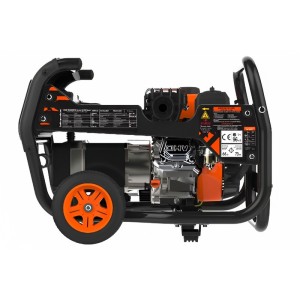

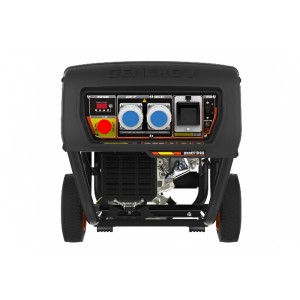

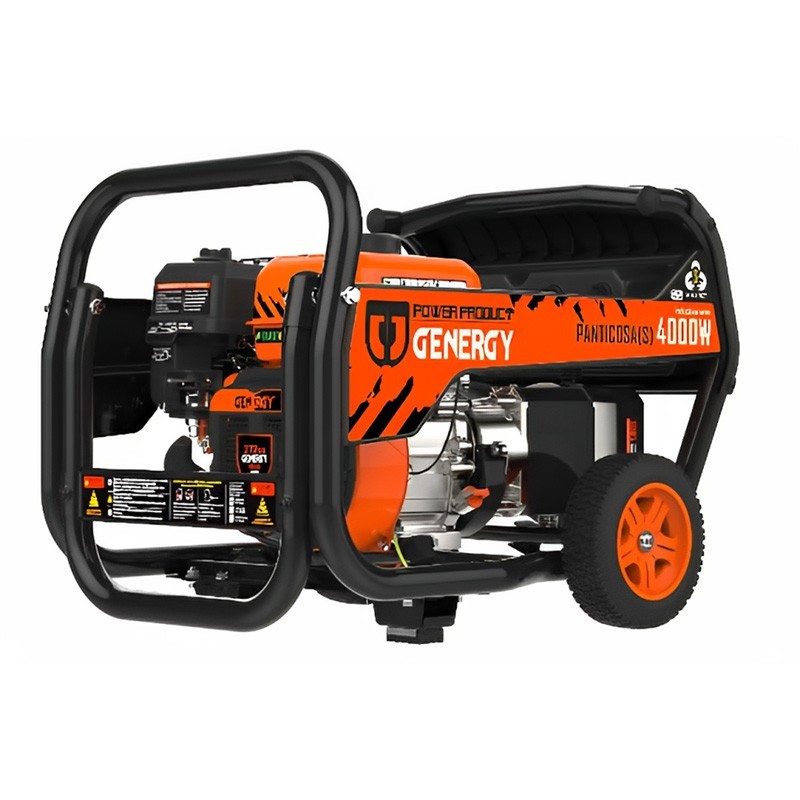

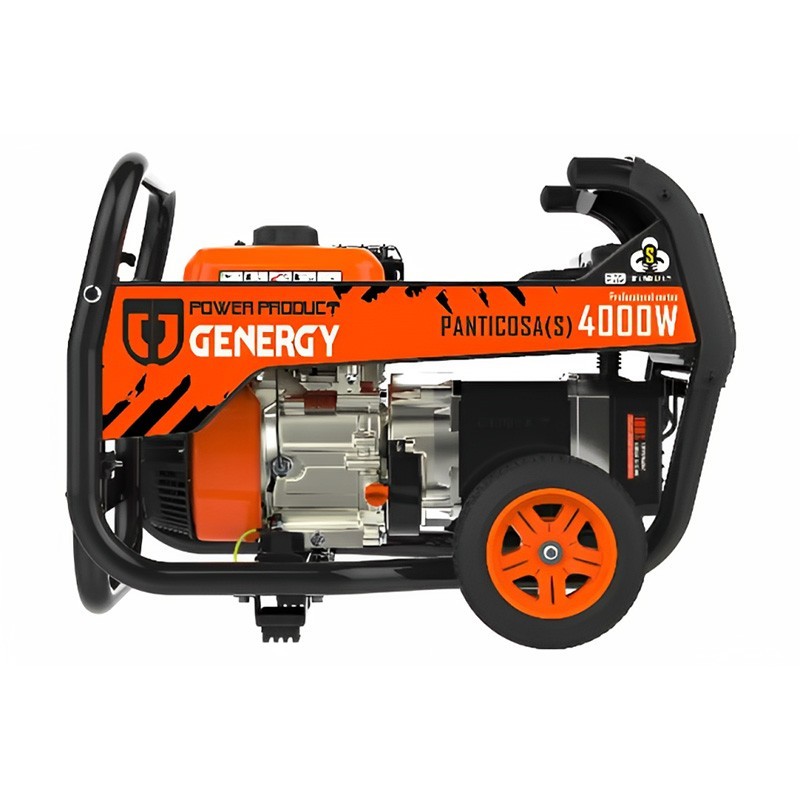

The electric generator Gasoline Genergy Panticosa S 4000W has a maximum power of 4000 W and a nominal power of 3500 W. In addition, it works with a frequency of 50 Hz and a voltage of 230 V.
The machine contains inside it an air-cooled OHV SGB270PRO 4-stroke hand-start gasoline engine which has a fuel capacity of 3.1 L. In addition its oil capacity is 0.6 L.
The generator Genergy Panticosa S has two IP67 sockets of 16 A each with SVR stabilization. It also has an acoustic level of 96 dB and a sound pressure level at 7mts of 66 to 73 dB.
| Stabilization system | SVR" electronics |
| Voltage - frequency | 230V - 50Hz |
| Maximum power | 4000W |
| Nominal Power | 3500W |
| Type by number of phases | Single-phase |
| Power factor | 1 |
| Motor model | SGB270PRO |
| Displacement | 272cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 66dB - 73dB |
| Guaranteed sound power level LwA | 96dB |
| Starting type | Manual |
| Fuel tank capacity | 3.1L |
| Consumption at 25-50-75% load | 1.0 L/H - 1.5L/H - 2.0L/H |
| Autonomy 25-50-75% load | 3.1H - 2.0H - 1.55H |
| Oil capacity and grade | 0.6L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Integrated with 8" wheels |
| Dimensions | 710x517x527 mm |
| Weight | 54 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
