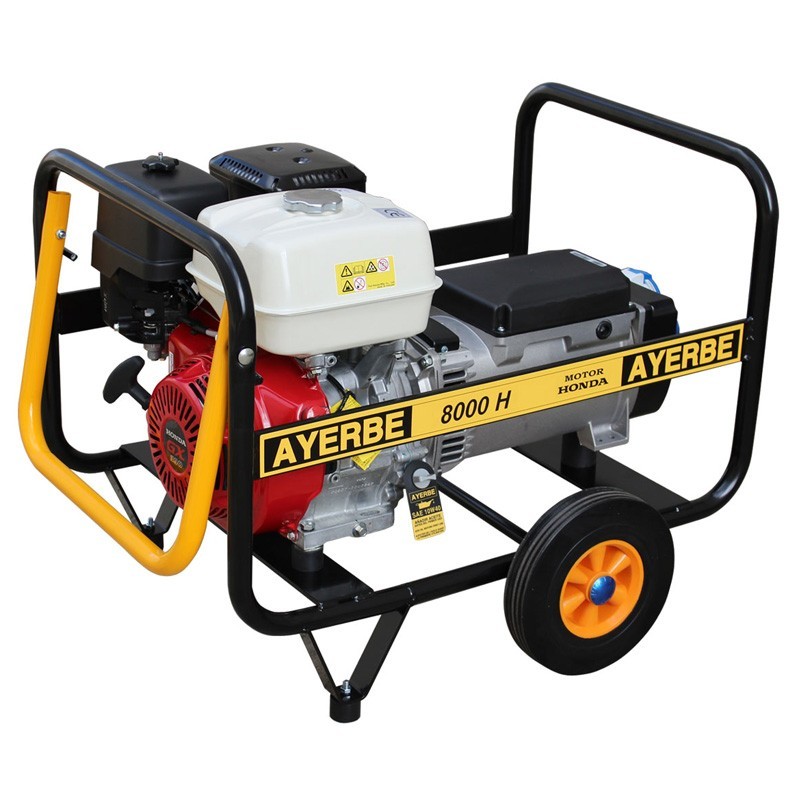

The single-phase electric generator Ayerbe AY 8000 H MN is a powerful power source with a Honda GX 390 engine of 13 HP and 390 cc displacement. Its air cooling system and the use of SAE 20W40 / IPE CD, CF grade oil ensure efficient and durable operation.
With an engine speed of 3,600 r.p.m. and mechanical speed governor, this generator runs on gasoline and has a fuel consumption of 2.1 L/H at 75%. In addition, its manual start system makes it easy to start.
This generator Ayerbe is a reliable choice for powering a variety of applications. Its high quality Honda engine ensures consistent performance and its naturally aspirated design along with a mechanical speed governor makes it fuel efficient.
With an oil capacity of 1.1 liters, this single-phase generator is a robust tool that adapts to a variety of power needs.
| Maximum power | 8 KVA - 6,400 W |
| Rated power | 7 KVA - 5,600 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 230 V. / 50 Hz |
| Start | Manual |
| Power factor | Cos phi 0,8 |
| Noise level | 97 LwA / 74 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 390 |
| Power | 13 HP |
| Displacement | 390 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.1 L/H |
| Oil capacity | 1,1 L |
| Starting system | Manual |
| Alternator | |
| Brand | LINZ |
| Model | E1C10 MI |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 6 l |
| Autonomy at 75% | 3 hours |
| Weight | 85 kg |
| Dimensions | 950 x 746 x 625 mm |
| Packing volume | 0,44 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
