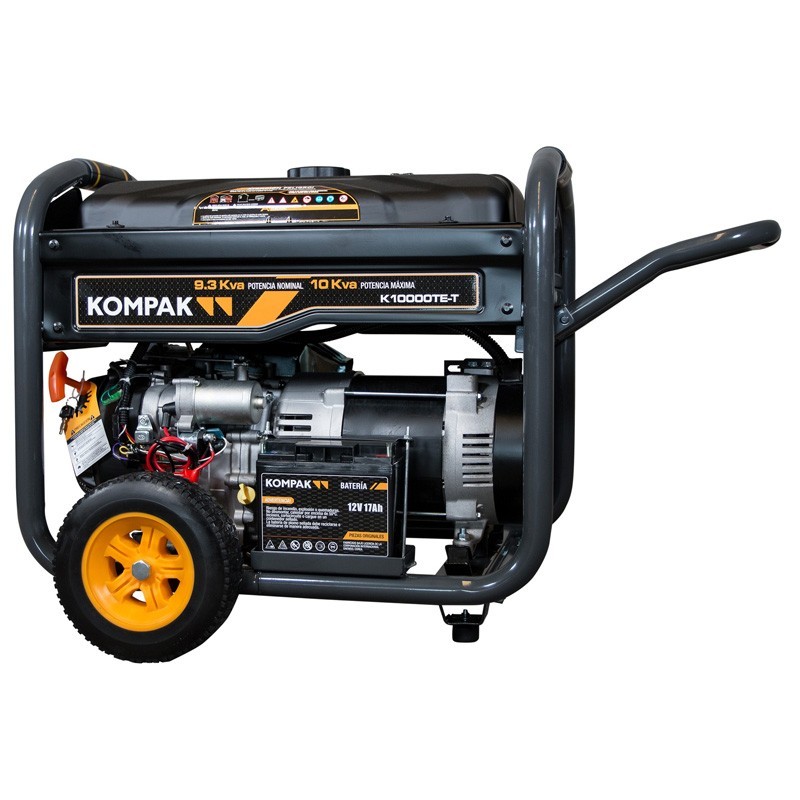

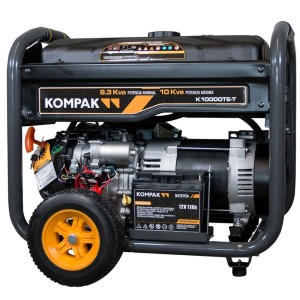

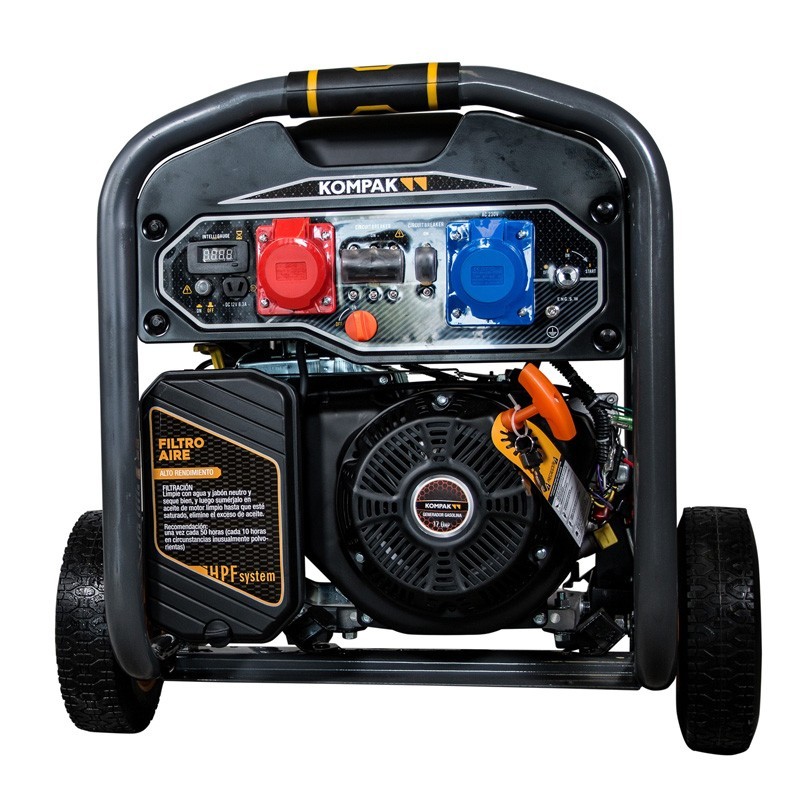

The electric generator Kompak K10000TE-T with a nominal three-phase power of 9.4 kVA and a maximum of 10 kVA, as well as a nominal single-phase power of 6.75 kW and a maximum of 7.2 kW, offers the necessary flexibility for different applications.
Its 4-stroke engine, model K460 with a displacement of 459 cc and a power of 16 Hp, guarantees reliable performance in both manual and electric start.
This generator is equipped with a 100% copper alternator and an AVR voltage regulation system, ensuring a constant and stable supply of electric power.
Its 25 liter tank capacity and 12.5 hours autonomy at 50% load make it ideal for continuous use in various situations.
| Nominal Power Three-phase | 9.4 kVA |
| Three-phase Maximum Power | 10 kVA |
| Nominal Power Single Phase | 6.75 kW |
| Single-phase Maximum Power | 7.2 kW |
| Voltage | 400 V / 230 V |
| Sockets | 1xPCE5P (32A) / 1x32A (230) |
| Hour meter | Digital |
| Rated amperage | 10,8 A |
| Engine | 4-stroke |
| Model | K460 |
| Displacement | 459 cc |
| Power | 16 Hp |
| Starter | Manual/Electric |
| Alternator Type | Brushes |
| Battery | 14 Ah |
| Alternator | 100% copper |
| Power factor | 0,8 / 1 |
| Voltage regulation type | AVR |
| Tank capacity | 25 L |
| Autonomy 50% Load | 12,5 H |
| Noise level at 7M. (DBA) 75% | 72 |
| Dimensions | 852x570x642 mm |
| Weight | 95 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
